AMD Radeon Pro WX 7100 8GB

Video Card

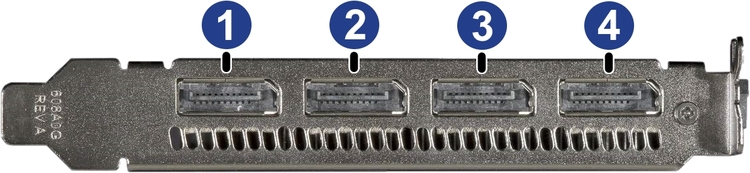

[ Rear Ports ]

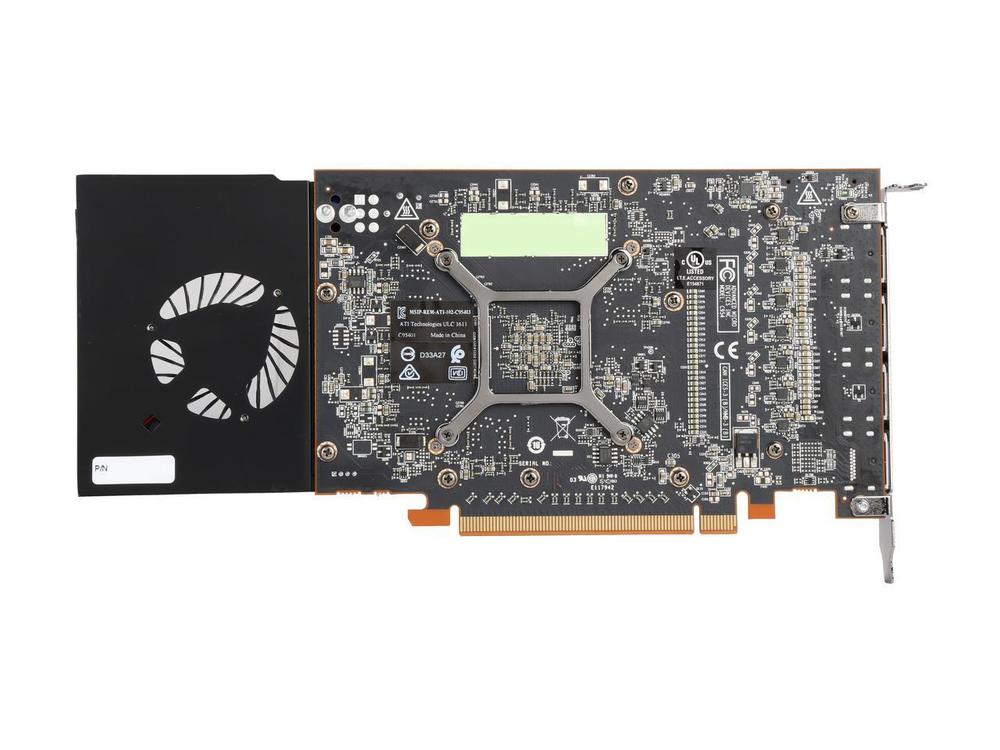

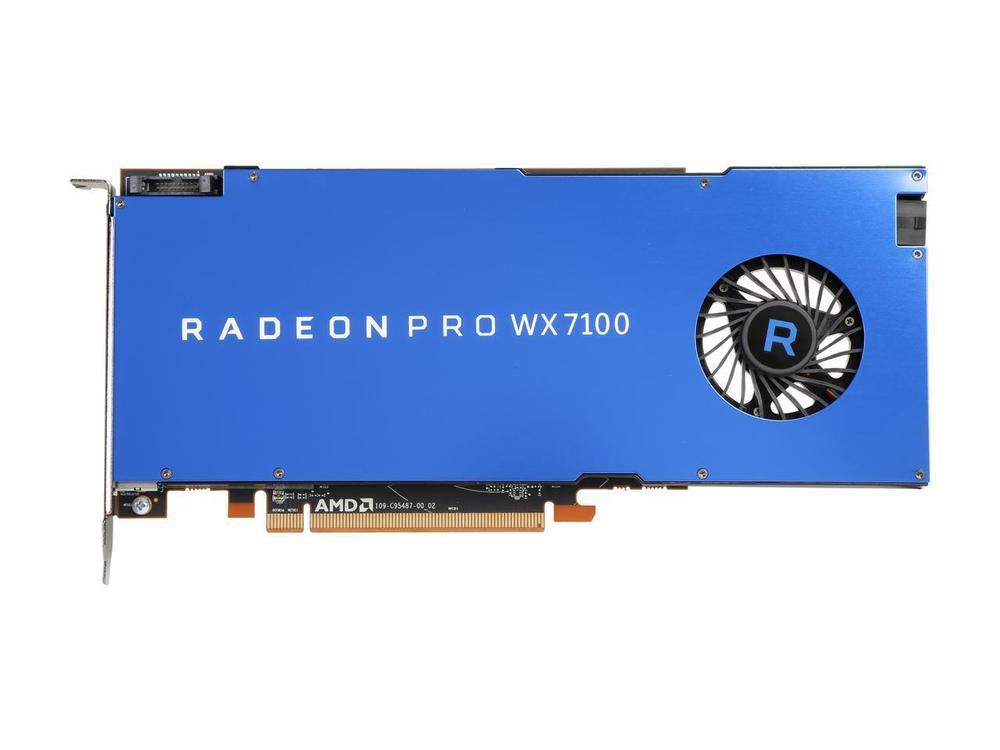

AMD Radeon Pro WX 7100 8GB Picture 45809AMD Radeon Pro WX 7100 8GB Picture 45810AMD Radeon Pro WX 7100 8GB Picture 56361
The AMD Radeon Pro WX 7100 is among the first AMD workstation graphics cards to use the Radeon branding name. Compared to its predecessor, the FirePro W7100, it features both more stream processors and higher clock speeds - resulting in significantly more computational performance. Performance-wise it lands between the WX 5100 and WX 9100 cards, while only taking up a single expansion slot. It is equipped with 8GB of video memory and support up to four monitors via DisplayPort outputs.

As with other RadeonPro professional-grade cards, the WX 7100 supports DX12, OpenGL, and OpenCL. Full 10-bit-per-channel color is also available, when paired with supported monitors. One 6-pin PCI-E power connector is required for proper operation.
Model: AMD 100-505826

Chipset Manufacturer  AMD
Product Line  Radeon Pro
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Core Speed  1188 MHz
Boost Speed  1243 Mhz
Stream Processors  2304
Memory Specifications
Video Memory  8GB
Memory Type  GDDR5
Memory Speed  1250 MHz
Memory Bus Width  256-bit
Bandwidth  160 GB/s
Double Precision Floating Point (Peak)  0.36 Tflops
Single Precision Floating Point (Peak)  5.73 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
OpenGL Support  4.5
Removable Backplate  No
Slot Width  1
Port 1  DisplayPort
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Power Connectors
Plug 1  6-pin PCI-E
Height  121 mm (4.8 in)
Width  21.6 mm (0.9 in)


3 Years

Configure a custom computer with the AMD Radeon Pro WX 7100 8GB.
