NVIDIA's GeForce GTX 1660 Ti 6GB is a mid-range GPU, replacing the older GTX 1060. While it is based on Turing technology, the older naming and numbering scheme is still used because this card is missing some of the more advanced features that are found on the RTX 2000-series. That means no hardware ray tracing (RT cores) or machine learning inference (Tensor cores) - but for more traditional applications which don't use those capabilities the GTX 1660 Ti is a strong contender.

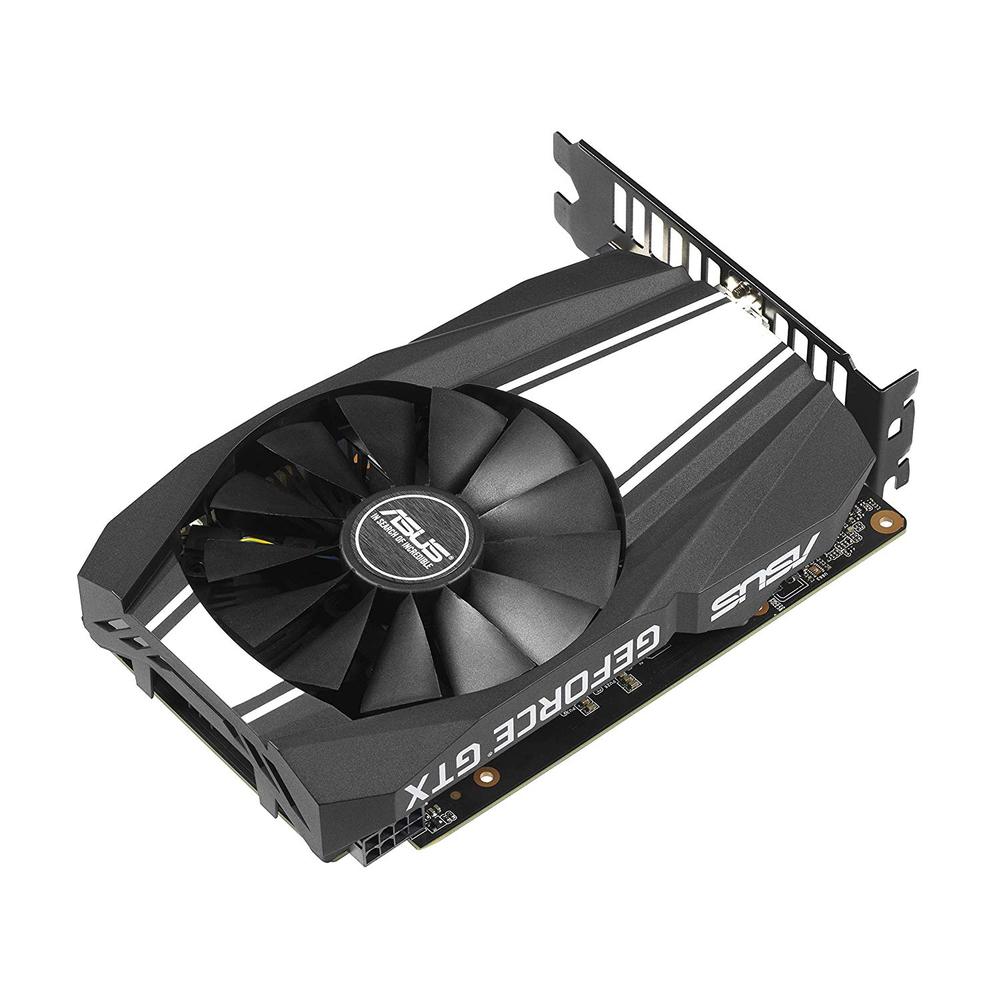

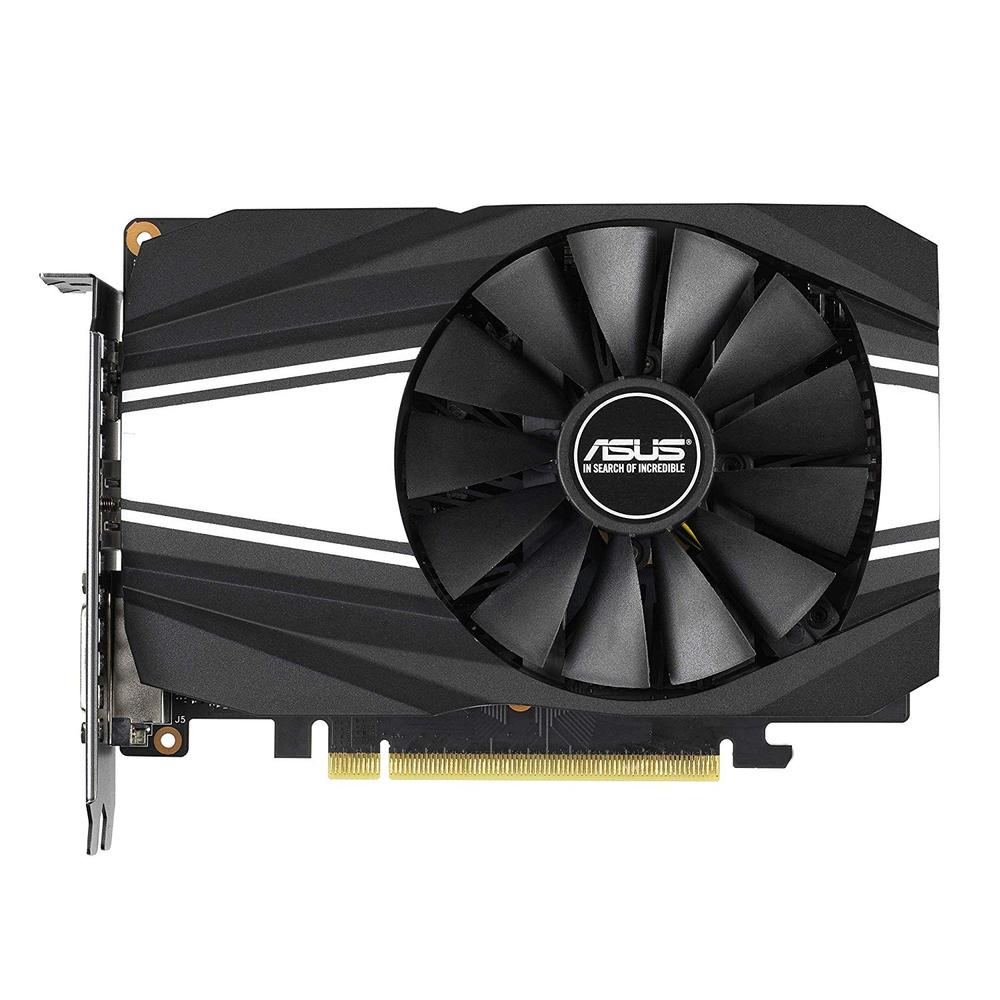

This particular model from Asus is a short-depth design, with a single-fan open-air cooling system. That is great for fitting in smaller cases and keeping a single card cool, but results in most of the heat the card generates being pumped back into the computer. That makes this a poor choice for use in multi-GPU systems, especially in configurations where there will be little or no space between each card. In that situation, a video card with a blower-style fan and rear heat exhaust will be much better.

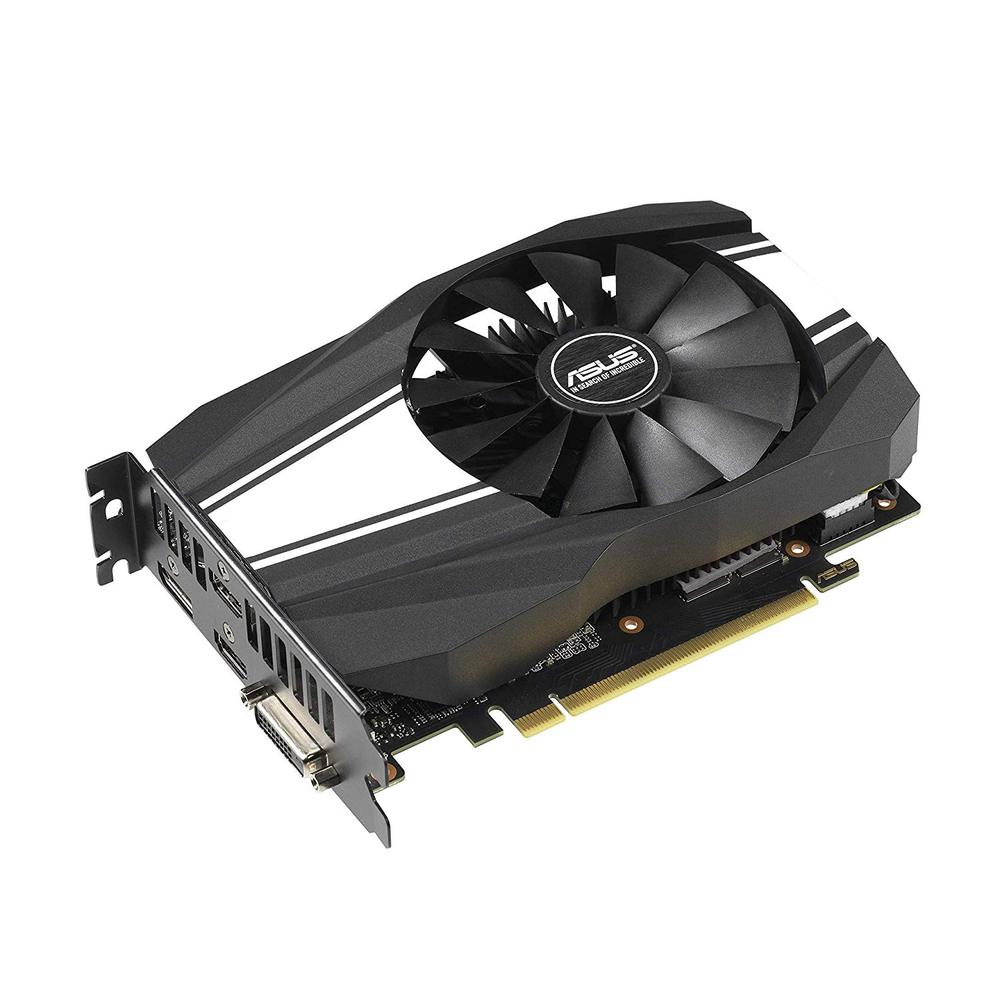

Finally, in regards to connectivity, the GTX 1660 Ti supports up to four monitors. A wide range of outputs are provided: One DVI-D, two HDMI 2.0b, and one DisplayPort 1.4.
This particular model from Asus is a short-depth design, with a single-fan open-air cooling system. That is great for fitting in smaller cases and keeping a single card cool, but results in most of the heat the card generates being pumped back into the computer. That makes this a poor choice for use in multi-GPU systems, especially in configurations where there will be little or no space between each card. In that situation, a video card with a blower-style fan and rear heat exhaust will be much better.
Finally, in regards to connectivity, the GTX 1660 Ti supports up to four monitors. A wide range of outputs are provided: One DVI-D, two HDMI 2.0b, and one DisplayPort 1.4.
Model: Asus PH-GTX1660TI-6G
Specifications
Chipset Manufacturer | nVidia |
Product Line | GeForce |
Interface | PCI Express 3.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum HDMI Resolution | 7680x4320 |
Maximum DisplayPort Resolution | 4096x2160 |
Maximum DVI Resolution | 2560x1600 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | Not Available |
GPU Specifications | |
Core Speed | 1,500 MHz |
Boost Speed | 1,770 Mhz |
Stream Processors | 1,536 |
Memory Specifications | |
Video Memory | 6GB |
Memory Type | GDDR6 |
Memory Speed | 12,000 MHz |
Memory Bus Width | 192-bit |
Bandwidth | 288 GB/s |
Additional Information | |
Cooling System | Open Air Type |
DirectX Support | DirectX 12 |
CUDA Support | 6.5 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2 |
Outputs | |
Port 1 | DVI |
Port 2 | HDMI |
Port 3 | DisplayPort |
Port 4 | HDMI |
Power Connectors | |
Plug 1 | 8-pin PCI-E |
Dimensions | |
Length | 174 mm (6.9 in) |
Height | 121 mm (4.8 in) |
Width | 39 mm (1.5 in) |
