Asus GeForce RTX 2080 EVO 8GB Blower Fan

Video Card

[ Rear Ports ]

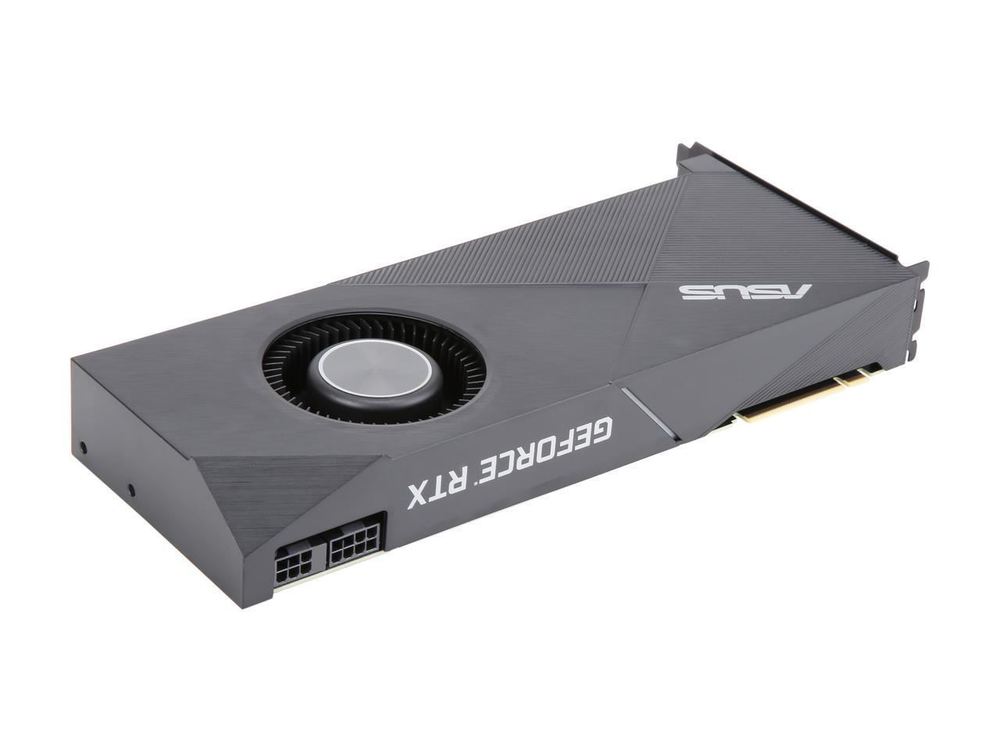

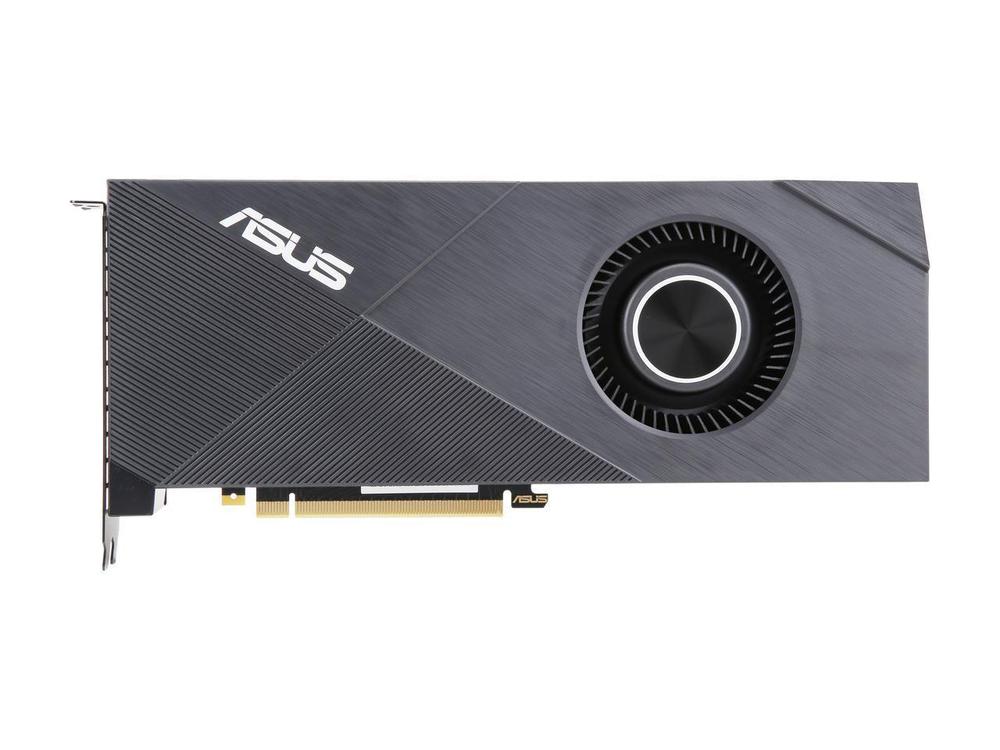

Asus GeForce RTX 2080 EVO 8GB Blower Fan Picture 56775Asus GeForce RTX 2080 EVO 8GB Blower Fan Picture 56776Asus GeForce RTX 2080 EVO 8GB Blower Fan Picture 56777Asus GeForce RTX 2080 EVO 8GB Blower Fan Picture 56778
NVIDIA's GeForce RTX 2080 is one of the first graphics cards based on the Turing GPU architecture. This generation represents an incremental improvement in general graphics performance, as usual, along with the addition of two major features: dedicated RT cores for ray tracing and Tensor cores for machine learning inference. The RT cores are brand-new, while the Tensor cores have existed on previous Titan and Quadro cards - but this is the first time they've come to the mainstream GeForce series. This specialized hardware will allow for new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit. General performance should be about 20-30% faster than the previous GTX 1080, in situations where the video card is the limiting factor.

This particular variant, from Asus, has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.

Finally, in regards to connectivity, the RTX 2080 has dropped DVI output entirely. There are still enough outputs for up to four monitors, though: one HDMI 2.0b and three DisplayPort 1.4.
Model: Asus TURBO-RTX2080-8G-EVO

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  NVLink (GeForce RTX)
GPU Specifications
Core Speed  1515 MHz
Boost Speed  1710 Mhz
Stream Processors  2944
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  256-bit
Bandwidth  448 GB/s
Additional Information
Cooling System  Loud Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  DisplayPort
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  6-pin PCI-E
Dimensions
Length  269 mm (10.6 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)


Configure a affordable custom PC with the Asus GeForce RTX 2080 EVO 8GB Blower Fan.
