EVGA GeForce GTX 980 4GB

Video Card

EVGA GeForce GTX 980 4GB Picture 34292EVGA GeForce GTX 980 4GB Picture 34289EVGA GeForce GTX 980 4GB Picture 34288EVGA GeForce GTX 980 4GB Picture 34294EVGA GeForce GTX 980 4GB Picture 34293EVGA GeForce GTX 980 4GB Picture 34291EVGA GeForce GTX 980 4GB Picture 34290
NVIDIA's GeForce GTX 980 is one of the first high-performance graphics cards using their new Maxwell GPU architecture. The main thrust with this new design is efficiency, rather than a big increase in performance. Still, in game tests it matches or beats the previous generation GTX 780 Ti - but at a lower price point. The GTX 980 also reaches that level of performance with much lower power usage and heat output than the 700-series, though: 80 watts less than the 780 Ti at maximum load! That translates directly to lower temperatures and quieter operation.

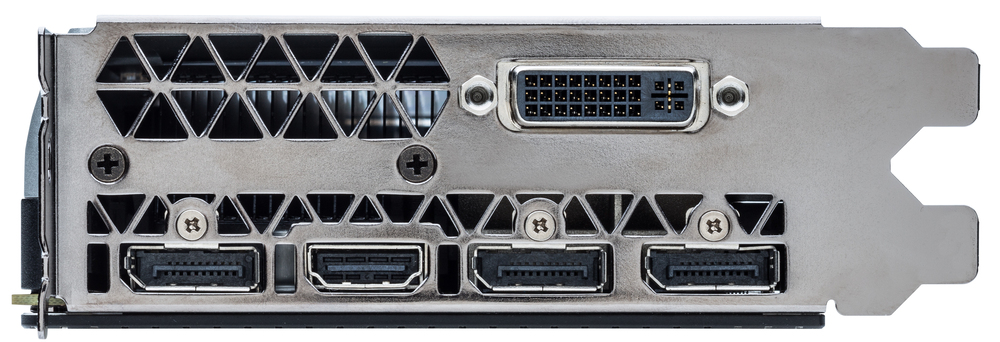

In addition to its great efficiency, the GTX 980 inherits other features common to the GeForce line. It is excellent at maintaining good frame-rates in games, not dipping too low even in graphics-laden titles, and includes support for CUDA, DX11, and NVIDIA's 3D Vision technology. Finally, it supports up to 4 usable display outputs across five physical connections: DVI, HDMI, and three DisplayPorts.
Model: EVGA 04G-P4-2980-KR

Chipset Manufacturer  nVidia
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum DisplayPort Resolution  4096x2160
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Core Speed  1126 MHz
Boost Speed  1216 Mhz
Stream Processors  2048
Memory Specifications
Video Memory  4GB
Memory Type  GDDR5
Memory Speed  3505 MHz
Memory Bus Width  256-bit
Bandwidth  224.3 GB/s
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 11.2
OpenGL Support  4.4
Port 1  Dual-Link DVI
Port 2  HDMI
Port 3  DisplayPort
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  6-pin PCI-E
Plug 2  6-pin PCI-E
Length  266.7 mm (10.5 in)
Height  111.15 mm (4.4 in)

Maximum displays using Nvidia Surround: 3


3 Years

Configure a custom computer with the EVGA GeForce GTX 980 4GB.
