EVGA GeForce RTX 3090 Ti FTW3 GAMING 24GB Open Air

Video Card

EVGA GeForce RTX 3090 Ti FTW3 GAMING 24GB Open Air Picture 74415EVGA GeForce RTX 3090 Ti FTW3 GAMING 24GB Open Air Picture 74416EVGA GeForce RTX 3090 Ti FTW3 GAMING 24GB Open Air Picture 74417EVGA GeForce RTX 3090 Ti FTW3 GAMING 24GB Open Air Picture 74418EVGA GeForce RTX 3090 Ti FTW3 GAMING 24GB Open Air Picture 74419
NVIDIA's GeForce RTX 3090 Ti is one of the last (and fastest) consumer graphics cards to be based on their Ampere architecture, which in turn was the second generation of NVIDIA GPUs to offer hardware raytracing and other advanced features under their RTX branding. In terms of performance, this model is only slightly faster than the RTX 3090 it shares part of its name with - gaining 3 to 9% in our various benchmark tests. However, there is a trade-off for this performance boost: greatly increased power usage and heat output.

This variant from EVGA is massive - more than three slots wide! - and uses a multi-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems. In those cases, a video card with a blower-style fan and rear heat exhaust would be much better.

Finally, in regards to connectivity, there are one HDMI 2.1 and three DisplayPort 1.4a plugs supporting a total of up to four displays at a maximum resolution of 7680x4320 (8K).

Model: EVGA 24G-P5-4983-KR

Specifications

Chipset Manufacturer NVIDIA
Product Line GeForce
Series RTX 3000
Model 3090 Ti
Motherboard Connection PCI Express 4.0 x16
Maximum Digital Resolution 7680x4320
Maximum HDMI Resolution 7680x4320
Maximum DisplayPort Resolution 7680x4320
Maximum Monitors Supported 4
HDCP Compliant Yes
Multi-GPU Technology NVLink (GeForce RTX 3000)
Lite Hash Rate No
GPU Specifications
Core Speed 1,670 MHz
Boost Speed 1,890 Mhz
Stream Processors 10752
Memory Specifications
Video Memory 24GB
Memory Type GDDR6X
Memory Speed 21,000 MHz
Memory Bus Width 384-bit
Bandwidth 1,008 GB/s
Additional Information
Cooling System Open Air Type
DirectX Support DirectX 12
CUDA Support 11
OpenGL Support 4.5
Removable Backplate No
Slot Width 3+

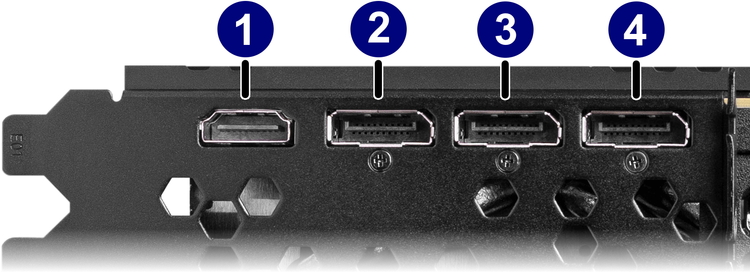

Outputs
Port 1 HDMI 2.1
Port 2 DisplayPort 1.4a
Port 3 DisplayPort 1.4a
Port 4 DisplayPort 1.4a
Power Connectors
Plug 1 8-pin PCI-E
Plug 2 8-pin PCI-E
Plug 3 8-pin PCI-E
Dimensions
Length 300 mm (11.8 in)
Height 137 mm (5.4 in)
Width 73 mm (2.9 in)
Net Weight 2.176 kg (4.8 lbs)
