MSI Geforce GT 1030 2GB

Video Card

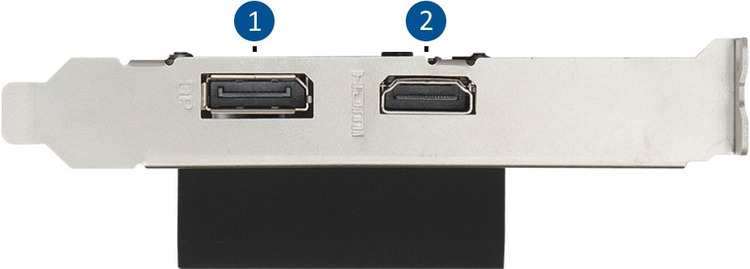

[ Rear Ports ]

MSI Geforce GT 1030 2GB Picture 47158MSI Geforce GT 1030 2GB Picture 47159MSI Geforce GT 1030 2GB Picture 47160MSI Geforce GT 1030 2GB Picture 53039
The GeForce GT 1030 is an entry-level dedicated video card from NVIDIA. It is generally a step up from integrated graphics, which are built into some CPUs from Intel and AMD, but it is more commonly used for basic video output on systems that don't already have that functionality built-in. It can also be effective for providing two additional monitor outputs, if the applications being run are not dependent on GPU performance.

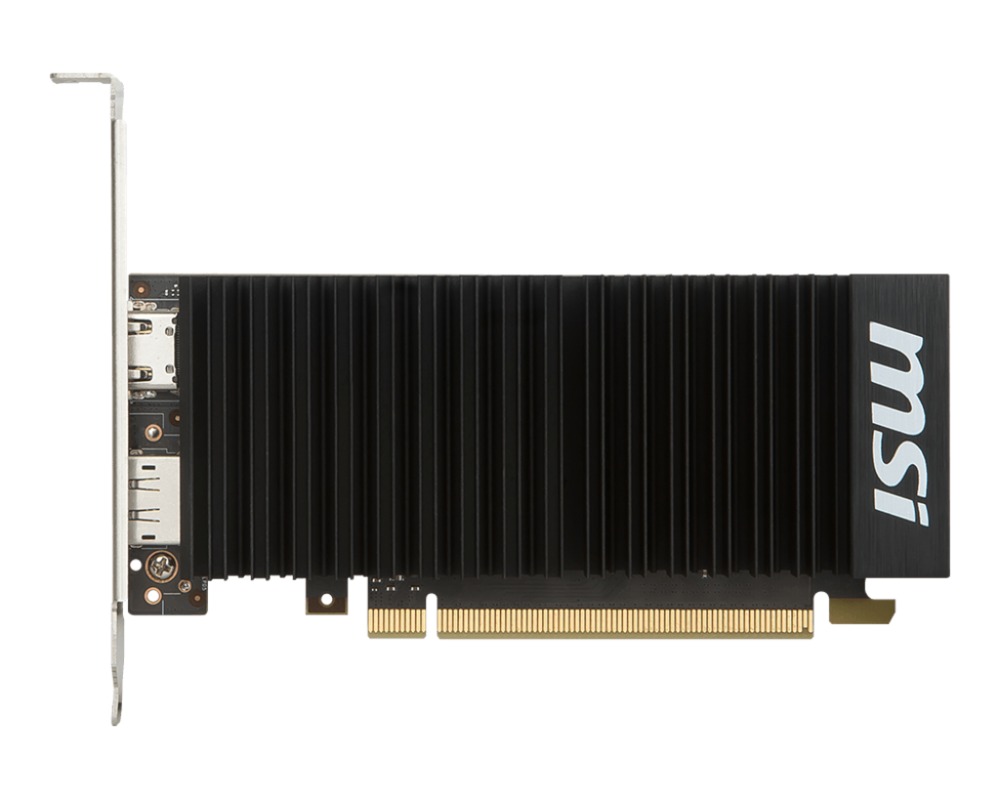

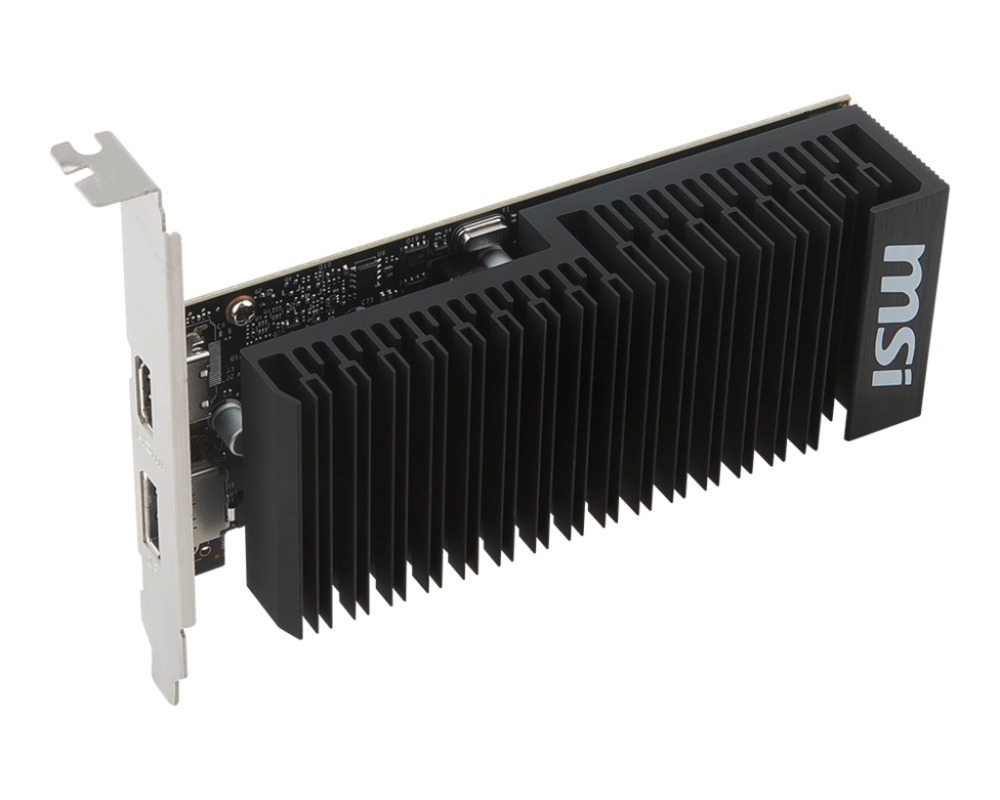

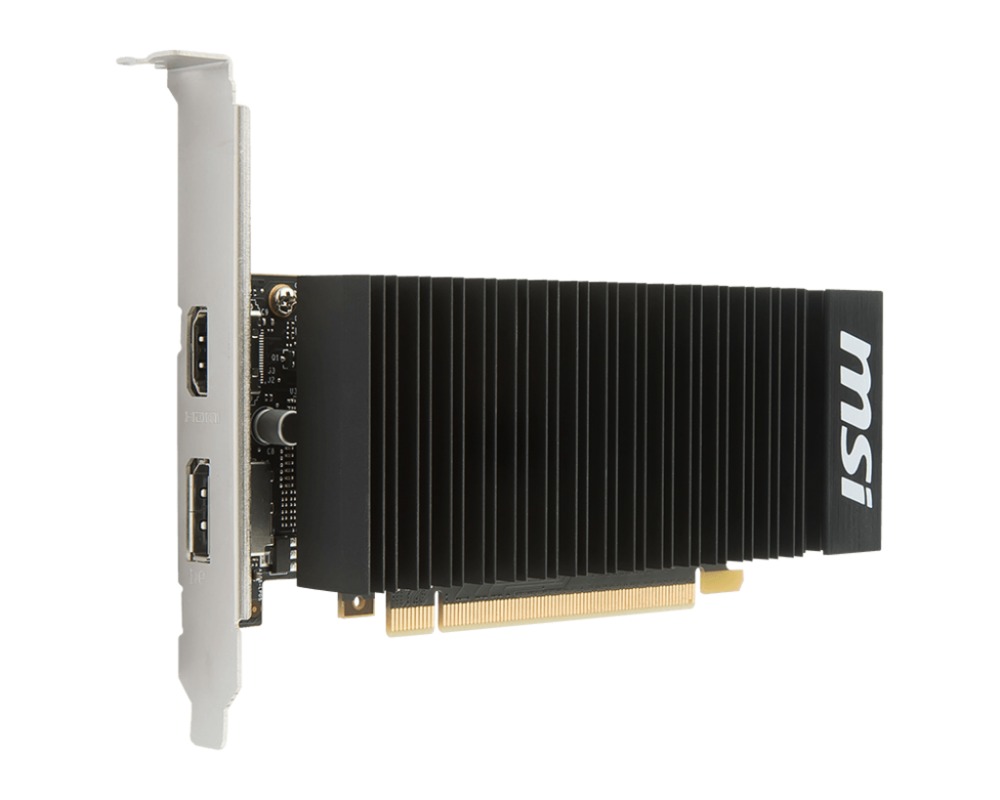

MSI's version of this card is passively-cooled, meaning it has no fan... but the heatsink is quite tall, taking up the slot next to the video card as well. As alluded to above it has two video outputs: HDMI and DisplayPort, which can be used at the same time. It is also low-profile, allowing use in some cases which cannot accommodate a full-height card.
Model: MSI GT 1030 2GH LP OC

Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  2
HDCP Compliant  Yes
GPU Specifications
Core Speed  1265 MHz
Boost Speed  1518 Mhz
Stream Processors  384
Memory Specifications
Video Memory  2GB
Memory Type  GDDR5
Memory Speed  6008 MHz
Memory Bus Width  64-bit
Bandwidth  48.06 GB/s
Additional Information
Cooling System  Passive Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  1+
Port 1  DisplayPort
Port 2  HDMI
Length  153 mm (6.0 in)
Height  69 mm (2.7 in)
Width  38 mm (1.5 in)


3 Years

Configure a custom computer with the MSI Geforce GT 1030 2GB.
