The GeForce RTX 2060 SUPER is part of the second wave of graphics cards based on the Turing GPU architecture. This mid-generation release increases performance substantially over the vanilla RTX 2060 - in fact it is on par with the RTX 2070, but at a lower price point. It even has 8GB of memory, the same as the RTX 2070 and 2080 (unlike the 6GB that the 2060 had). Like all RTX cards, this model includes dedicated RT cores for ray tracing and Tensor cores for machine learning inference. This specialized hardware enables new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

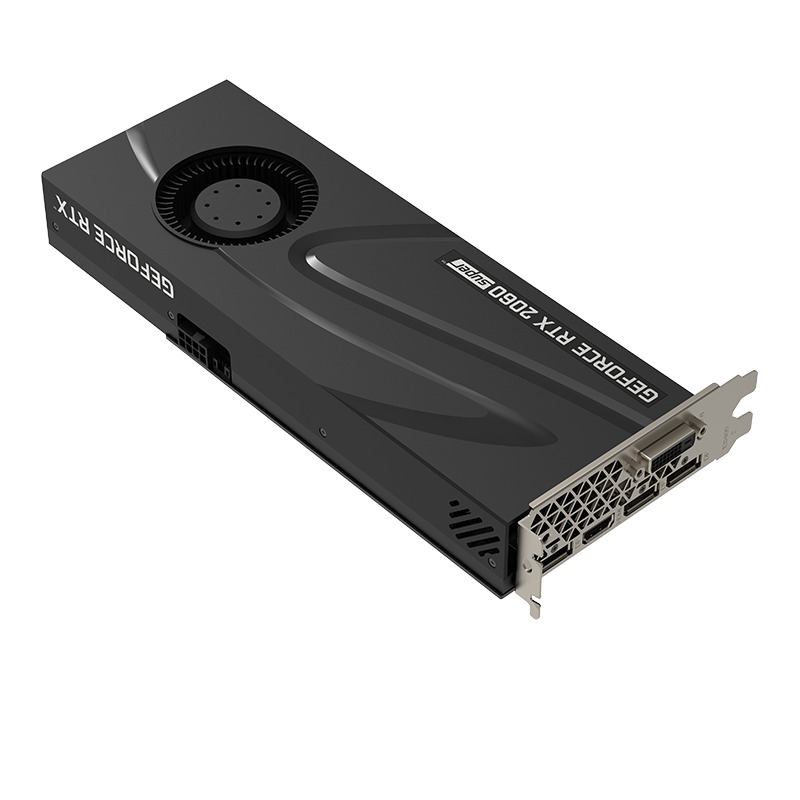

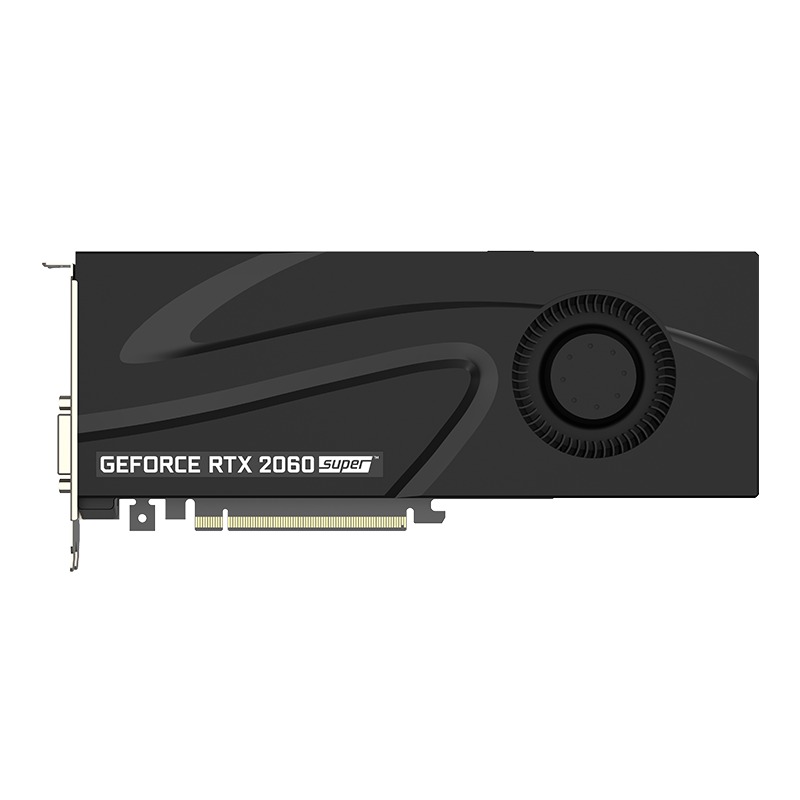

This particular variant has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.
Finally, in regards to connectivity, the RTX 2060 SUPER supports up to four monitors. Unlike the higher-end RTX 2080 and 2080 Ti, it still has one dual-link DVI output - along with one HDMI 2.0b and three DisplayPort 1.4 outputs.
This particular variant has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.
Finally, in regards to connectivity, the RTX 2060 SUPER supports up to four monitors. Unlike the higher-end RTX 2080 and 2080 Ti, it still has one dual-link DVI output - along with one HDMI 2.0b and three DisplayPort 1.4 outputs.
Specifications
Chipset Manufacturer | NVIDIA |
Product Line | GeForce |
Interface | PCI Express 3.0 x16 |
Maximum Digital Resolution | 7680x4320 |
Maximum HDMI Resolution | 4096x3112 |
Maximum DisplayPort Resolution | 7680x4320 |
Maximum DVI Resolution | 2560x1600 |
Maximum Monitors Supported | 4 |
HDCP Compliant | Yes |
Multi-GPU Technology | Not Available |
GPU Specifications | |
Core Speed | 1,470 MHz |
Boost Speed | 1,650 Mhz |
Stream Processors | 2176 |
Memory Specifications | |
Video Memory | 8GB |
Memory Type | GDDR6 |
Memory Speed | 14,000 MHz |
Memory Bus Width | 256-bit |
Bandwidth | 448 GB/s |
Additional Information | |
Cooling System | Blower Type |
DirectX Support | DirectX 12 |
CUDA Support | 6.5 |
OpenGL Support | 4.5 |
Removable Backplate | No |
Slot Width | 2 |
Outputs | |
Port 1 | DisplayPort |
Port 2 | DisplayPort |
Port 3 | HDMI |
Port 4 | DisplayPort |
Port 5 | DVI |
Power Connectors | |
Plug 1 | 8-pin PCI-E |
Dimensions | |
Length | 268 mm (10.6 in) |
Height | 113 mm (4.4 in) |
Width | 42 mm (1.7 in) |
