NVIDIA GeForce RTX 2080 Ti 11GB Open Air

Video Card

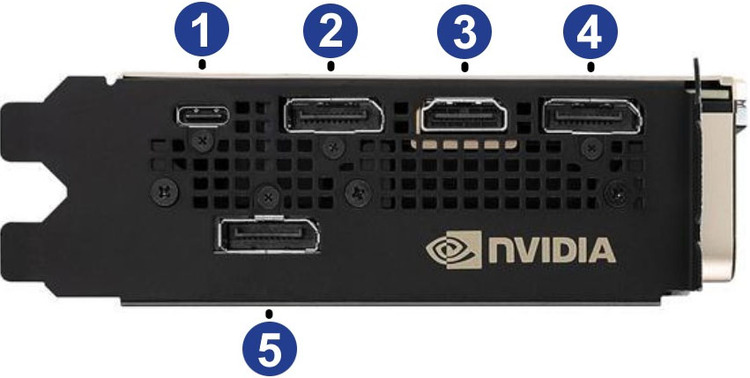

[ Rear Ports ]

NVIDIA GeForce RTX 2080 Ti 11GB Open Air Picture 52133NVIDIA GeForce RTX 2080 Ti 11GB Open Air Picture 52132NVIDIA GeForce RTX 2080 Ti 11GB Open Air Picture 52134NVIDIA GeForce RTX 2080 Ti 11GB Open Air Picture 52135NVIDIA GeForce RTX 2080 Ti 11GB Open Air Picture 52136NVIDIA GeForce RTX 2080 Ti 11GB Open Air Picture 52137NVIDIA GeForce RTX 2080 Ti 11GB Open Air Picture 53064
NVIDIA's GeForce RTX 2080 Ti is the highest-end GeForce model based on the Turing GPU architecture. This generation represents an incremental improvement in general graphics performance, as usual, along with the addition of two major features: dedicated RT cores for ray tracing and Tensor cores for machine learning inference. The RT cores are brand-new, while the Tensor cores have existed on previous Titan and Quadro cards - but this is the first time they've come to the mainstream GeForce series. This specialized hardware will allow for new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit. The 2080 Ti should be about 20-30% faster than the previous GTX 1080 Ti in normal GPU-limited situations, and even higher in applications that utilize RT and/or Tensor cores.

This version of the RTX 2080 Ti features a dual-fan cooling layout. This is great for keeping a single card running cool and quiet, but results in most of the heat the card generates being pumped back into the computer. That makes these a poor choice for use in multi-GPU systems, especially in configurations where there will be no space between each card. When installing more than one video card in a system, models with a blower-style fan and rear heat exhaust will be much better.

Finally, in regards to connectivity, the RTX 2080 Ti has dropped DVI output entirely. There are still enough outputs for four monitors, though: one HDMI 2.0b and three DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  NVLink (GeForce RTX)
GPU Specifications
Core Speed  1350 MHz
Boost Speed  1635 Mhz
Stream Processors  4352
Memory Specifications
Video Memory  11GB
Memory Type  GDDR6
Memory Speed  14,000 MHz
Memory Bus Width  352-bit
Bandwidth  616 GB/s
Additional Information
Cooling System  Quiet Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Port 1  USB Type-C
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  8-pin PCI-E
Length  269 mm (10.6 in)
Height  114 mm (4.5 in)
Width  42 mm (1.7 in)
