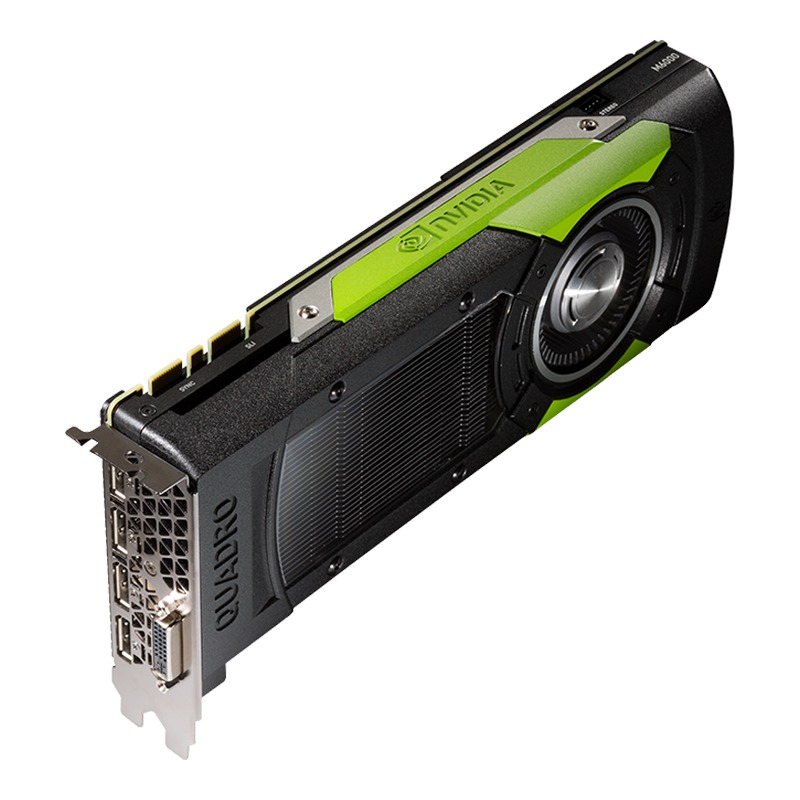

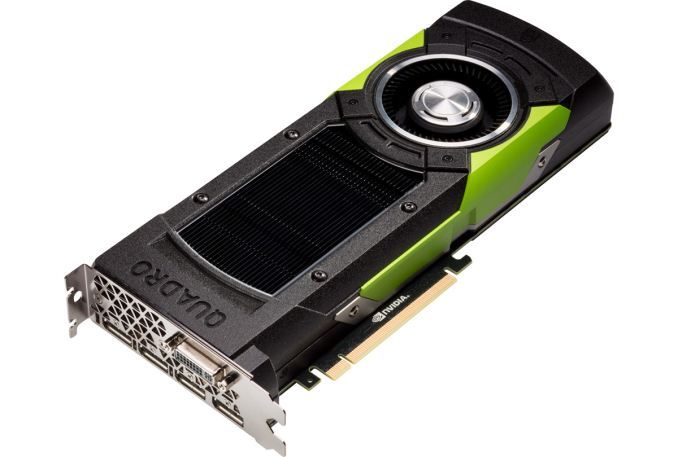

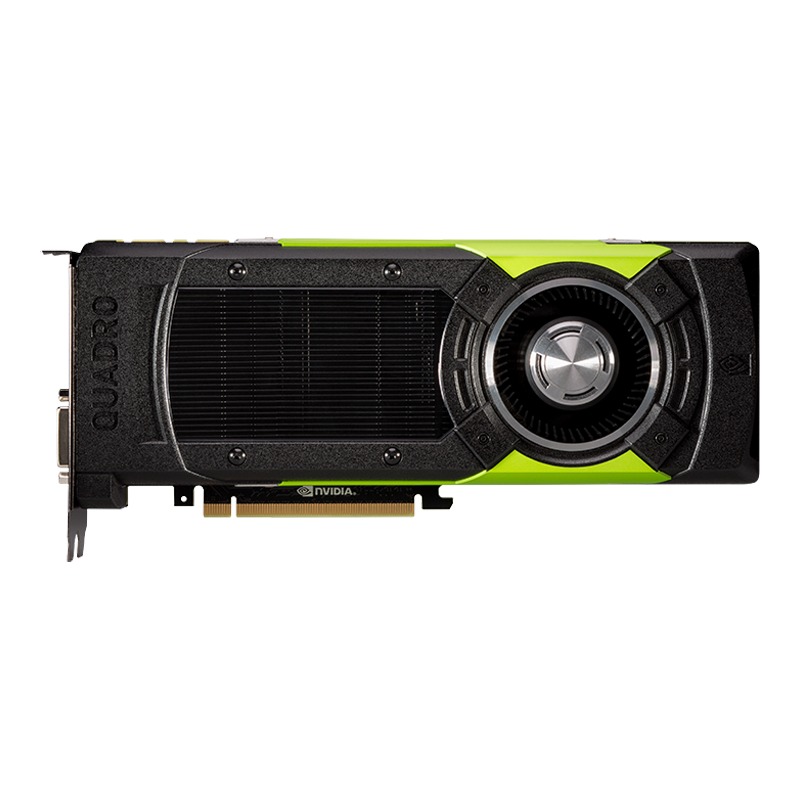

PNY Quadro M6000 PCI-E 24GB

Video Card

PNY Quadro M6000 PCI-E 24GB Picture 39117PNY Quadro M6000 PCI-E 24GB Picture 39118PNY Quadro M6000 PCI-E 24GB Picture 39119PNY Quadro M6000 PCI-E 24GB Picture 39120PNY Quadro M6000 PCI-E 24GB Picture 39121
Model: PNY VCQM6000-24GB-PB

Specifications:
spacer
Chipset Manufacturer  nVidia
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum DVI Resolution  2560x1600
Maximum DisplayPort Resolution  4096x2160
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Boost Speed  1140 Mhz
Stream Processors  3072
Memory Specifications
Video Memory  24GB
Memory Type  GDDR5 ECC
Memory Speed  6600 MHz
Memory Bus Width  384-bit
Bandwidth  317 GB/s
Performance
Single Precision Floating Point (Peak)  7 Tflops
Additional Information
Cooling System  Loud Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  5.2
OpenGL Support  4.5

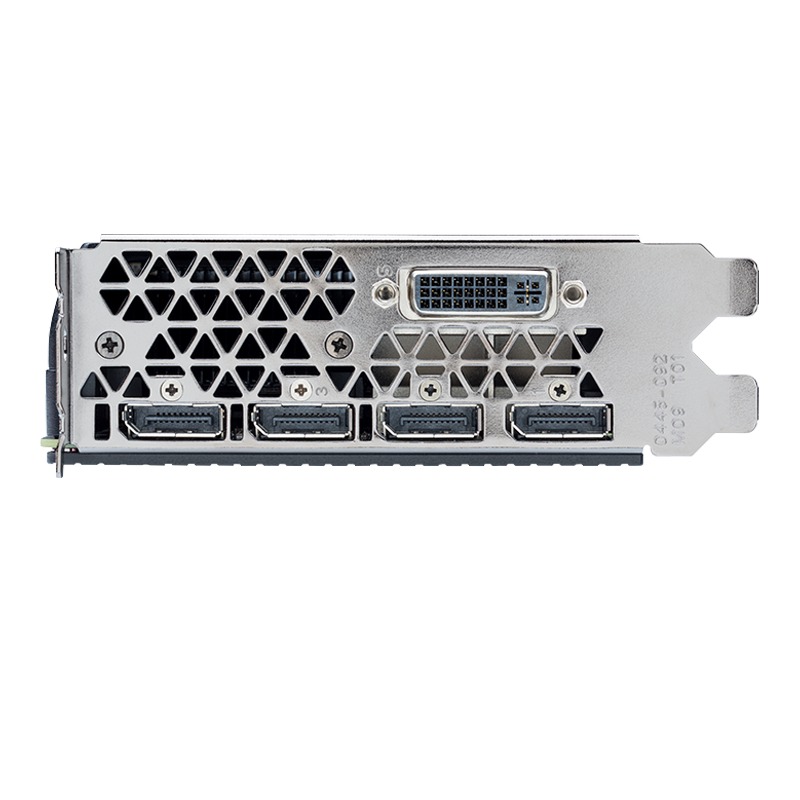

Outputs
Port 1  Dual-Link DVI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Dimensions
Length  267 mm (10.5 in)
Height  111 mm (4.4 in)

Get real interactive expression with NVIDIA Quadro-the world's most powerful workstation graphics. The NVIDIA Quadro M6000, accelerated by NVIDIA's Maxwell GPU architecture, lets you conquer your most challenging visualization workloads with ease and enjoy interactive physically based rendering of your work. 12 GB of GDDR5 GPU memory with ultra-fast bandwidth allows you to create and render large, complex models and compute massive datasets. Plus, there's the all-new display engine that drives up to four 4K resolution displays natively with DisplayPort 1.2 support for ultra-high resolutions like 4096 x 2160 at 60 Hz with 30-bit color. Synchronize multiple displays across systems with the Quadro Sync board (see PNY PN VCQM6000SYNC-PB) and accelerate data transfer with external I/O boards through GPU Direct for Video and dual-copy engines.

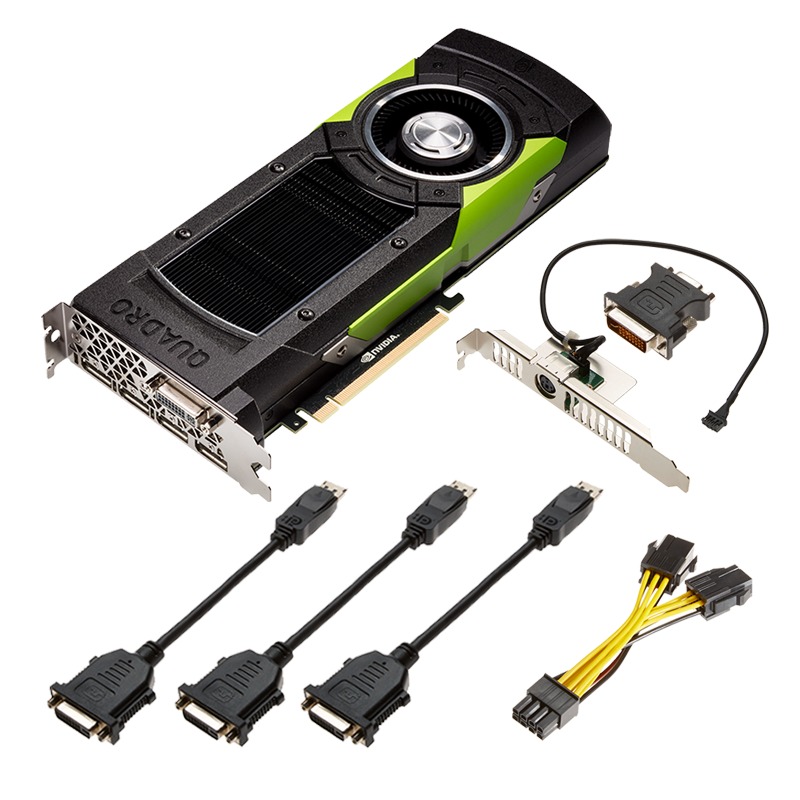

Includes 3x DisplayPort to DVI-D SL adapters and a Stereo connector bracket




with the PNY Quadro M6000 PCI-E 24GB.
