PNY Quadro P5000 PCI-E 16GB

Video Card

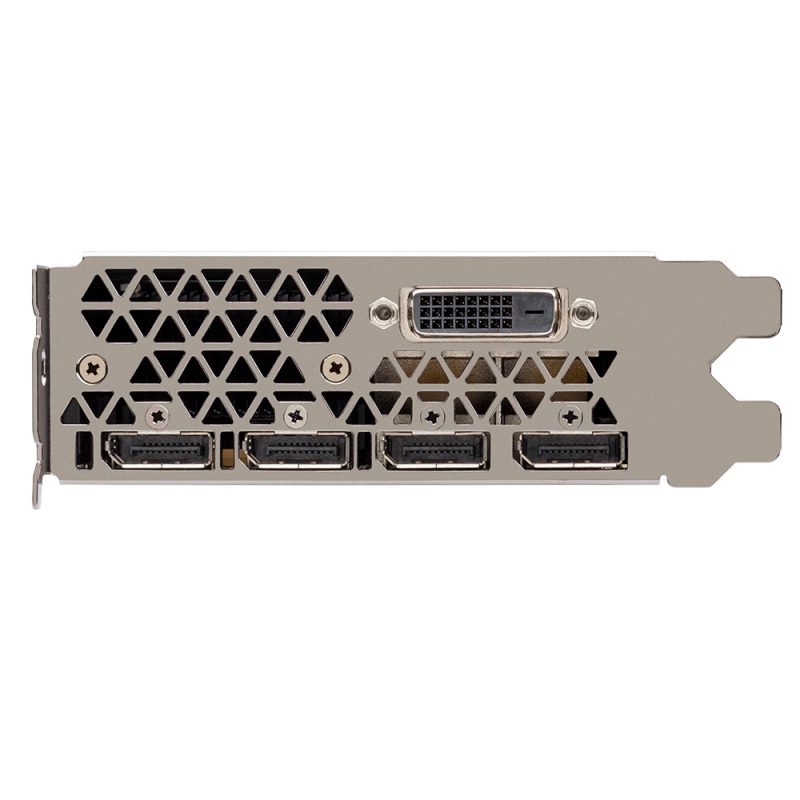

[ Rear Ports ]

PNY Quadro P5000 PCI-E 16GB Picture 40919PNY Quadro P5000 PCI-E 16GB Picture 40918PNY Quadro P5000 PCI-E 16GB Picture 40915PNY Quadro P5000 PCI-E 16GB Picture 40916PNY Quadro P5000 PCI-E 16GB Picture 40917PNY Quadro P5000 PCI-E 16GB Picture 53072
The NVIDIA Quadro P5000 is a high-end "professional grade" video card, based on the Pascal GPU architecture and offering great performance for 3D applications. Because of the Pascal architecture it is more efficient than previous Quadro cards of this caliber, with very good single-precision floating point performance as well. This architecture is not very good at double-precision calculations, though, falling behind some older generations of Quadro cards in that area. It has 2560 stream processors, a 256-bit memory bus, and 16GB of ECC memory - giving it overall about 2/3rds of the capability of the P6000.

In addition to great performance for professional 3D applications, the Quadro P5000 also supportsup to four 4K monitors at the same time. That connectivity is provided by four DisplayPort outputs, and there is a dual-link DVI output as well for legacy monitors. A wide range of standards are supported by this card: DirectX 12, OpenGL 4.5, CUDA, and OpenCL (to name a few).
Model: PNY VCQP5000-PB

Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum DVI Resolution  2560x1600
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Stream Processors  2560
Memory Specifications
Video Memory  16GB
Memory Type  GDDR5X
Memory Bus Width  256-bit
Bandwidth  288 GB/s
Single Precision Floating Point (Peak)  8.9 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  6.1
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Port 1  Dual-Link DVI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Length  266.7 mm (10.5 in)
Height  111.76 mm (4.4 in)

The NVIDIA Quadro P5000 workstation graphics card, powered by NVIDIA Pascal GPU technology, features 16 GB memory capacity and enables an expansive visual workspace with quad display outputs. Work with larger models, complex visual effects and simulations, larger rendering tasks, and more lifelike VR experiences in your workflow today and be well prepared for the challenges of tomorrow.

Designs are becoming more complex all the time. Media is becoming richer, combining greater resolutions and complex visual effects. Scientific visualization and compute problems are larger than ever. VR is changing entertainment, design, engineering, architecture, and medicine. And you need to validate designs, rehearse procedures, and visualize problems-interacting with them naturally and at scale.

Includes 2x DisplayPort to DVI-D SL adapters and a Stereo connector bracket


3 Years

Related Parts

Configure a custom computer with the PNY Quadro P5000 PCI-E 16GB.
