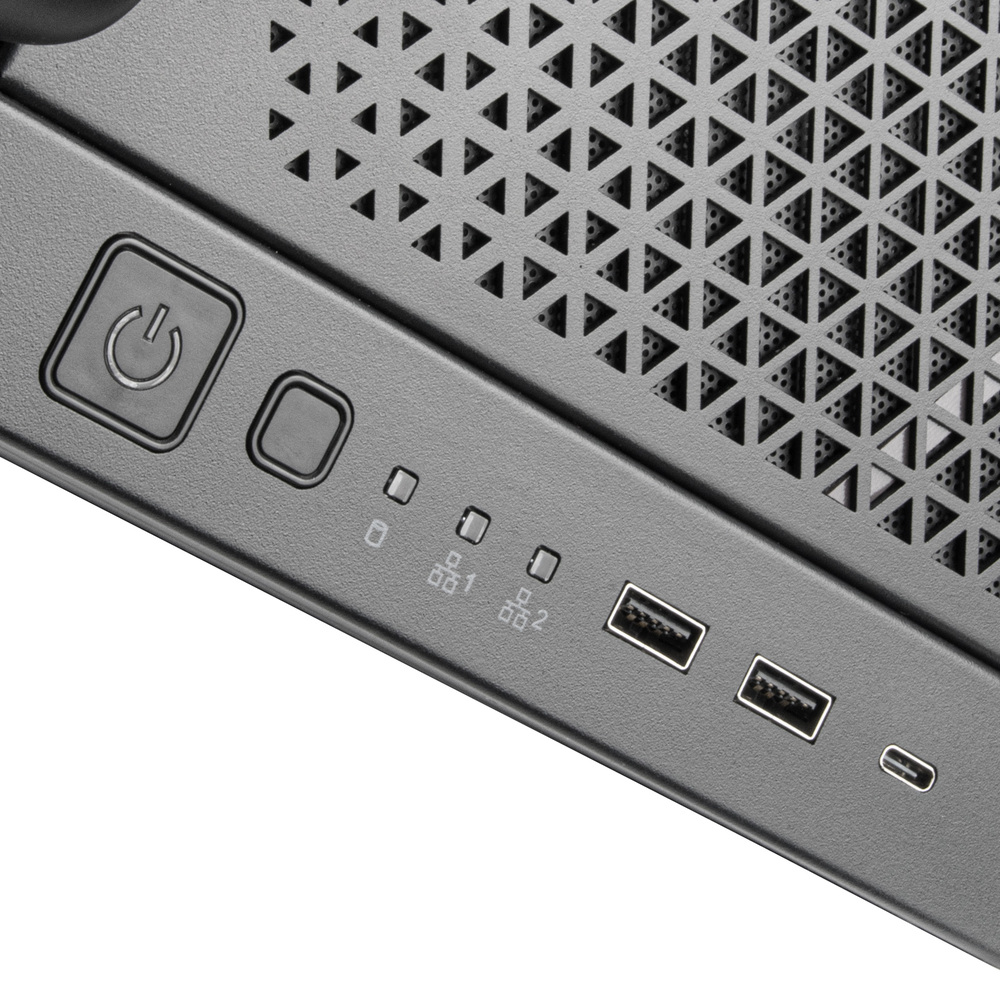

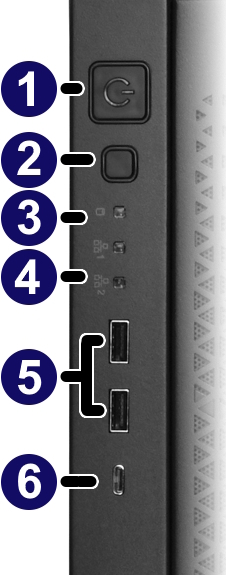

SilverStone RM51 5U Ports
Power Switch: On/off button for the device.
Reset Switch: Immediately hard-restarts system. Last resort only, as it will lose unsaved data and may corrupt OS.
HDD LED: Light that turns on when there is drive activity.
LAN LED: Light that turns on when there is any wired network activity.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB 3.2 Type C Port(s): USB port for USB 3.2 Gen 2 Type C devices (10 Gb/s)

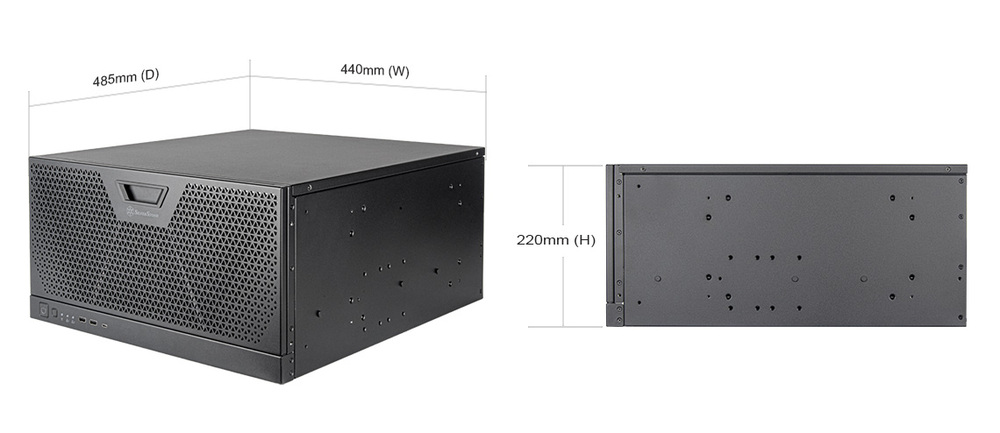

SilverStone RM51 5U Dimensions

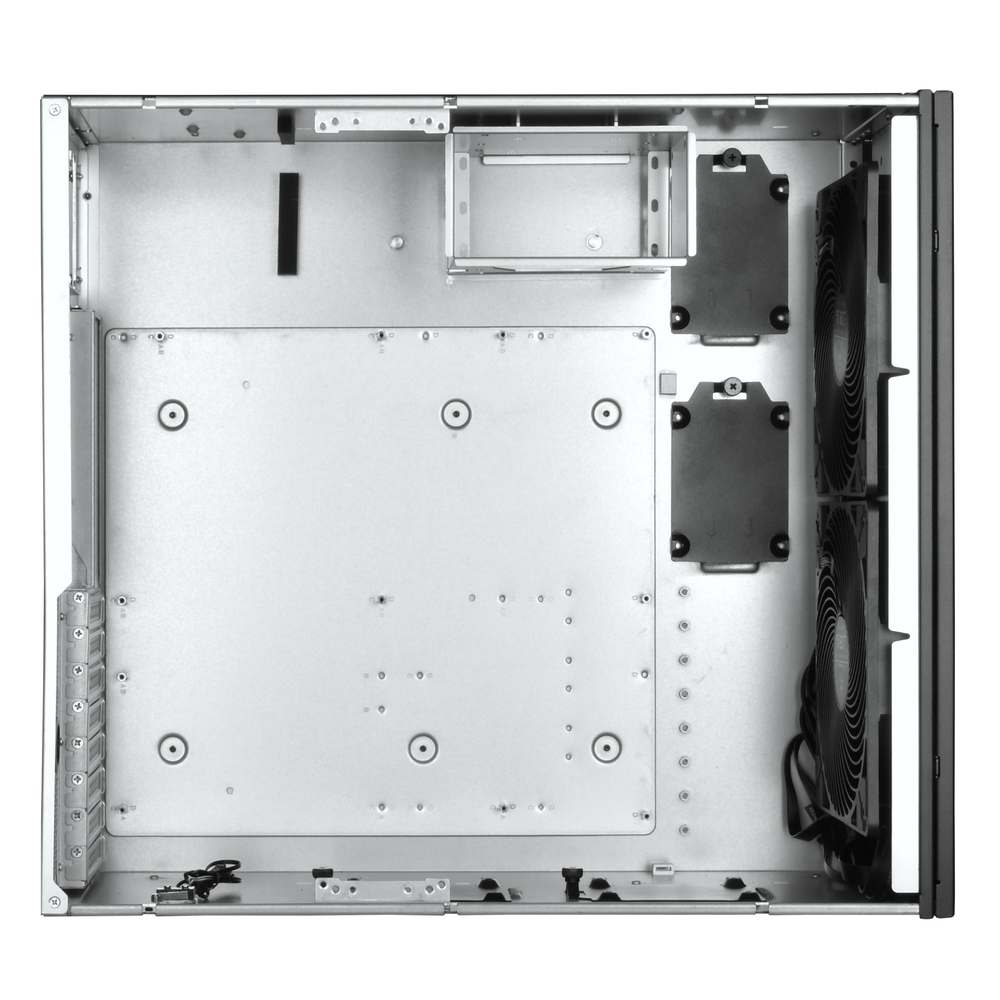

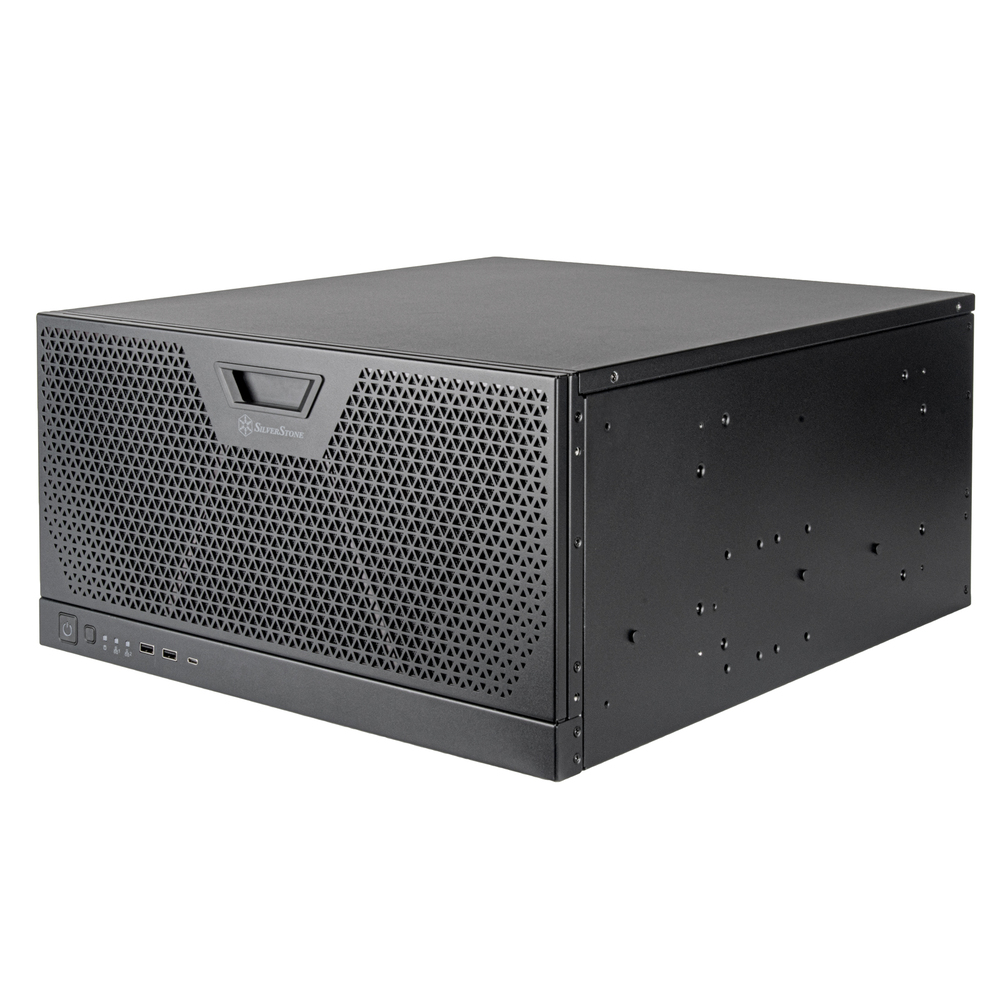

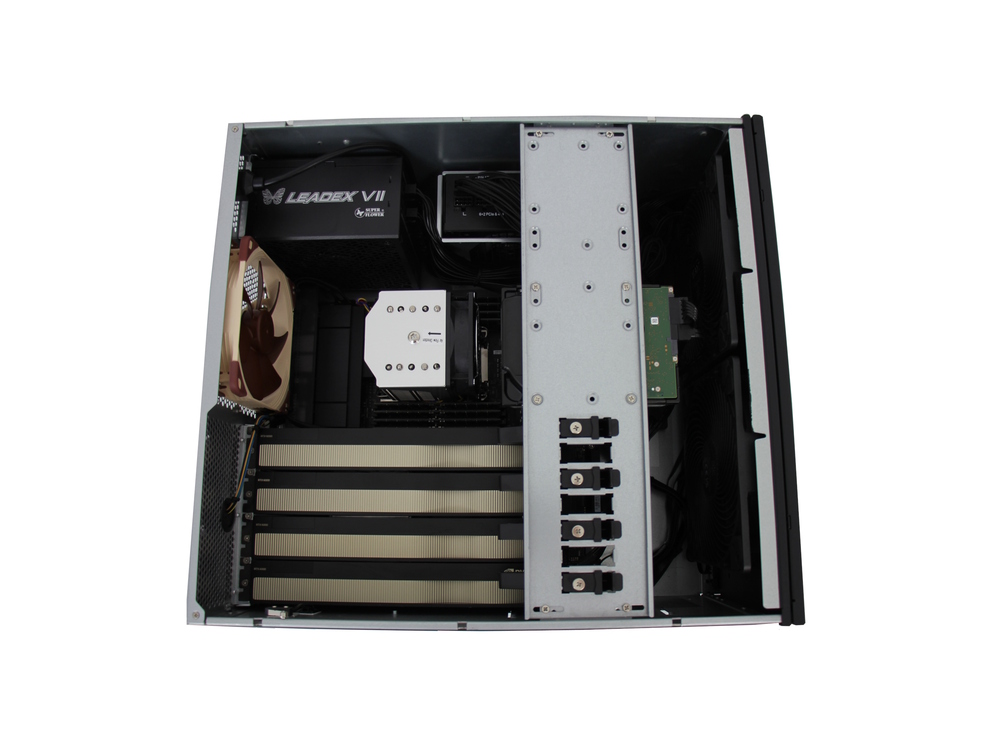

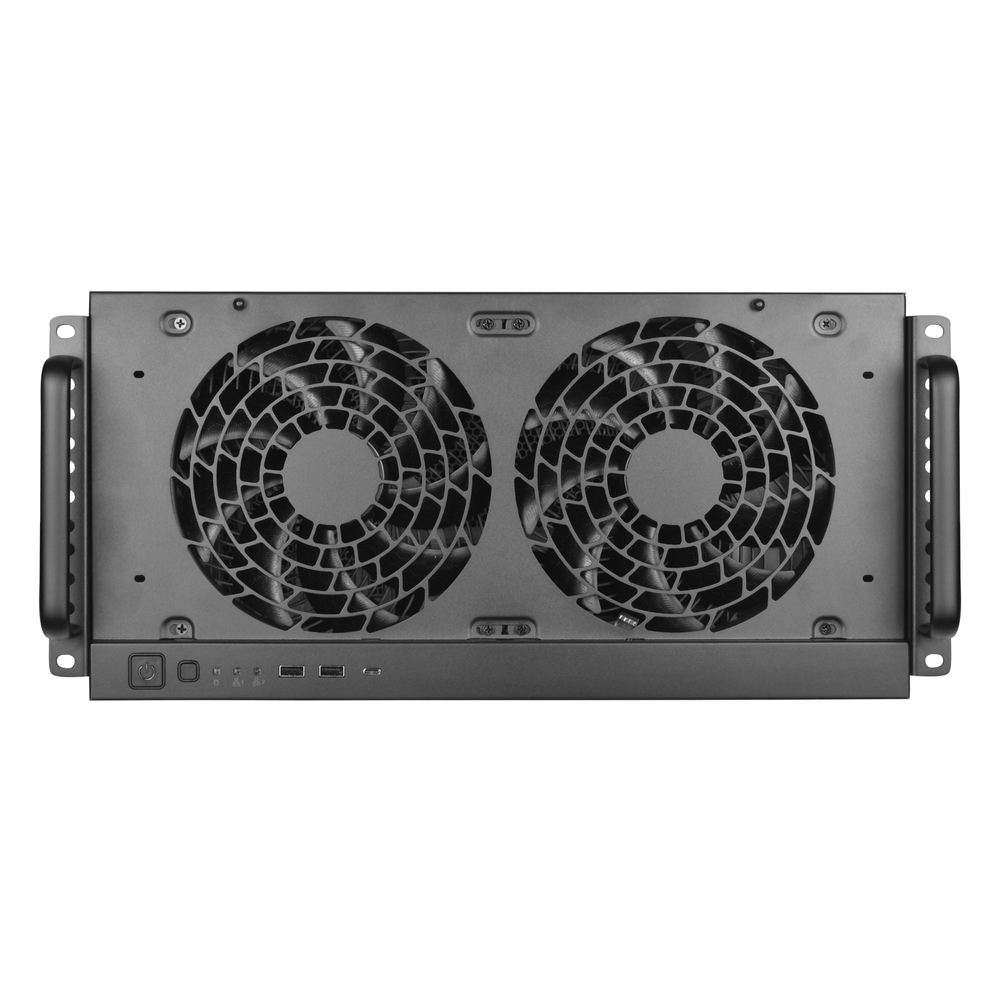

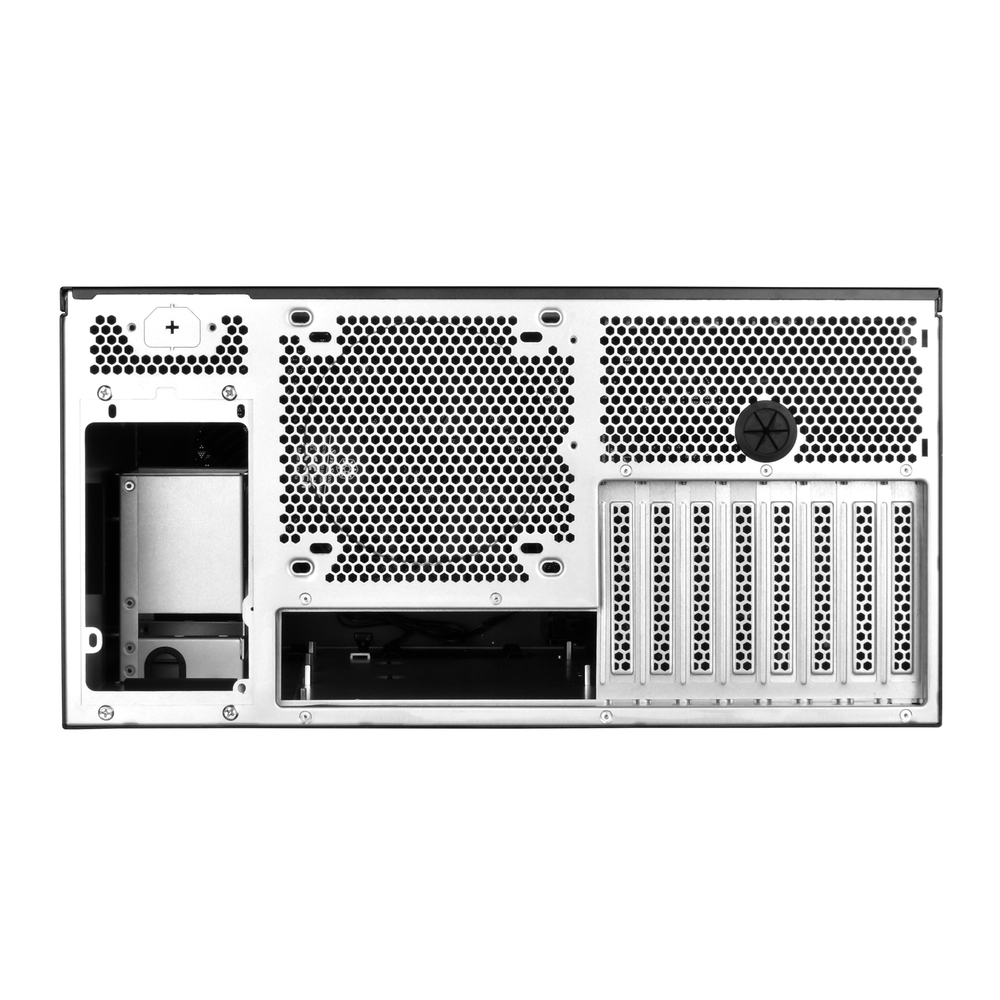

The Silverstone RM51 is a 5U rackmount chassis designed to house a wide range of hardware configurations. Its extra height allows taller GPUs and larger CPU coolers to fit more easily, and it supports an optional secondary SFX power supply to provide extra wattage for power-hungry components. For cooling, the RM51 has two massive 180mm intake fans which generate plenty of front-to-back airflow. Optional feet also allow this chassis to be turned on its side and used as a full-tower workstation, though its more industrial look isn't as polished as our other tower systems.
William George (Marketing Project Manager) Says:
If you are aiming to have a lot of 3.5-inch hard drives (or even 2.5-inch SSDs) in this chassis, be aware that utilizing dual power supplies will block use of two internal drive bays.
If you are aiming to have a lot of 3.5-inch hard drives (or even 2.5-inch SSDs) in this chassis, be aware that utilizing dual power supplies will block use of two internal drive bays.
Model: Silverstone RM51
Specifications
| Color | Black |
| Material | Steel |
| Type/Size | 5U Rackmount |
| Maximum Motherboard Size | SSI EEB |
Dimensions | |
| Height | 220 mm (8.7 in) |
| Width | 440 mm (17.3 in) |
| Depth | 485 mm (19.1 in) |
| Net Weight | 10.6 kg (23.4 lbs) |
| Maximum CPU Cooler Height | 192 |
| Maximum GPU Length | 455 |
| Maximum PSU Length | 190 |
Drive Bays | |
| External 5.25 inch | 0 |
| External 3.5 inch | 0 |
| Internal 3.5 inch | 2* |
| Internal 2.5 inch | 4 |
| Internal 2.5/3.5 inch | 2 |
Front Panel Connectors | |
| USB 3.0 | 2 |
| USB-C | 1 |
Cooling System | |
| Included Fans | 2x 180mm |
| Total Fan Mounts | 3x |
*HDD capacity is limited by component choice. Using a PSU greater than 150mm in length OR dual PSUs requires removing a drive cage, eliminating these two 3.5" HDD mounts.
