Adobe Photoshop CS6 GPU Acceleration

Written on September 20, 2012 by Matt Bach
Share:

Introduction

With Photoshop CS6, Adobe began integrating the Mercury Graphics Engine which uses the video card (via OpenCL and OpenGL) to vastly improve the performance of certain features. This is a great way to easily improve performance, but it adds more complexity to the question of "what hardware do I need" since the video card is now a bigger part of the performance equation. Adobe has a list of video cards that are compatible with Photoshop CS6, but as is often the case with compatibility lists, is often slightly outdated as new products are continuously being released.

So in this article we have two specific goals we want to accomplish: First, we will determine exactly how much of an effect the video card has on GPU accelerated features in Photoshop CS6. To do this, we will take a sample of the effects that Adobe says are GPU accelerated and benchmark them using various Intel, NVIDIA, and AMD graphics cards to see the performance differences between each card.

Second, since Adobe has not yet certified the NVIDIA 600 series or the Intel HD4000 graphics, we will use our benchmark results to determine if GPU acceleration is actually supported on those cards or not. If they are, this means that consumers who want an NVIDIA-based video card will not be limited to either a Quadro card or a card that is from the previous generation (NVIDIA 500 series).

Test Setup

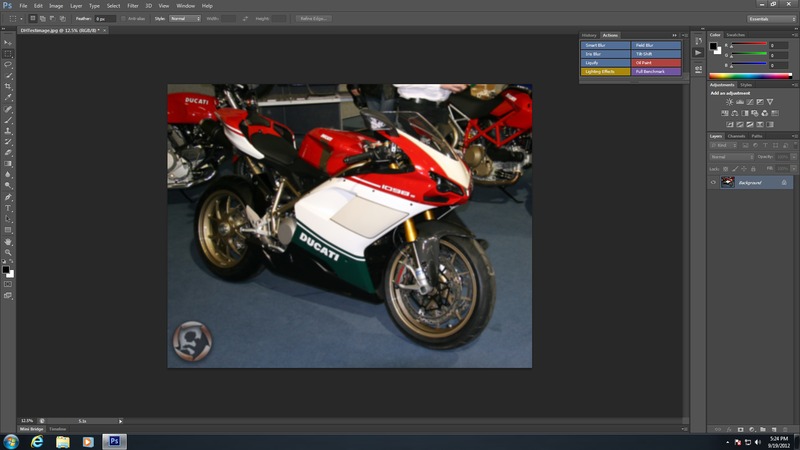

To ensure consistent benchmark results, we created a series of "Actions" in Photoshop CS6 64-bit to apply the effects we selected from Adobe's list of GPU accelerated effects. Each effect was applied with its default options to a 12MB (38 megapixel) image. To actually measure how long each effect took to apply, we simply enabled the integrated "Timing" feature in Photoshop CS6 which displays how long Photoshop took to perform an action. This method was based off of HardwareHeaven.com's popular Photoshop Benchmark V3 benchmark, but adapted to specifically target GPU accelerated effects.

If you would like to run this set of actions on your own computer, you can download them here: Download Link

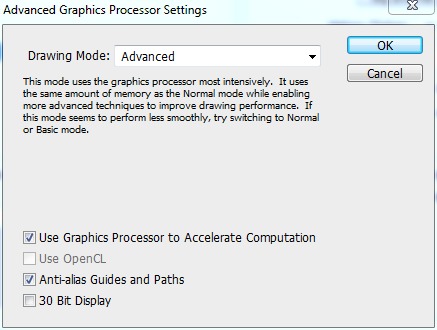

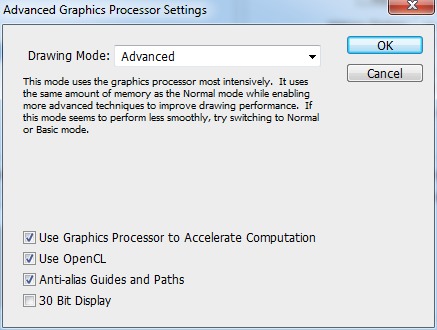

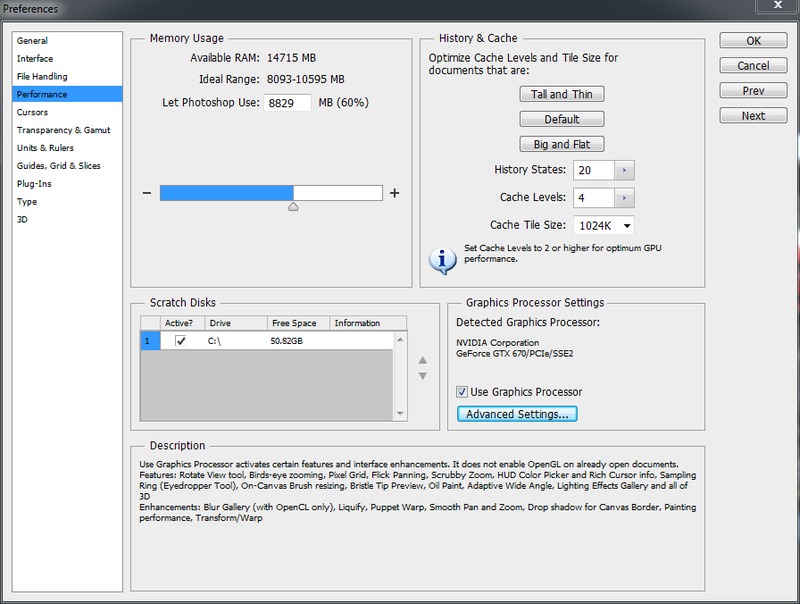

To ensure video acceleration was enabled, we made sure that the "Use Graphics Processor" was enabled under Edit -> Preferences -> General -> Performance before each round of testing. No other setup was required to enable acceleration for any of our test video cards. Note that many of these effects require that GPU acceleration is enabled, so even if you have a card that does not fully support OpenCL, this box must be checked in order for all of the effects to function properly. In order to show the importance of OpenCL support, we included the NVIDIA Quadro NVS 450 in our list of video cards since it does not support OpenCL. We fully expect this to result in a serious performance hit, but it will work well as a baseline to compare the other cards against.

Performance Options Advanced Settings NVIDIA Quadro NVS 450 Settings


To make sure that the chipset and CPU did not affect our results, we used two separate testing platforms consisting of the following hardware:


To test a wide spectrum of GPUs, we tested the following cards (video driver version listed in parentheses):

NVIDIA GeForce NVIDIA Quadro AMD Radeon Intel
GTX 580 1.5GB (301.42) Quadro 4000 2GB (305.93) HD 7970 3GB (12.8) HD 4000 1GB (8.15.10.2761)
GTX 680 2GB (301.42) Quadro 2000 1GB (305.93) HD 7870 2GB (12.8)
GTX 670 2GB (301.42) NVS 450 512MB (305.93) HD 7750 1GB (12.8)
GTX 660 Ti 2GB (306.02)
GTX 650 1GB (306.02)
GT 610 (301.42)



Results

Adobe Photoshop CS6 Benchmark Results

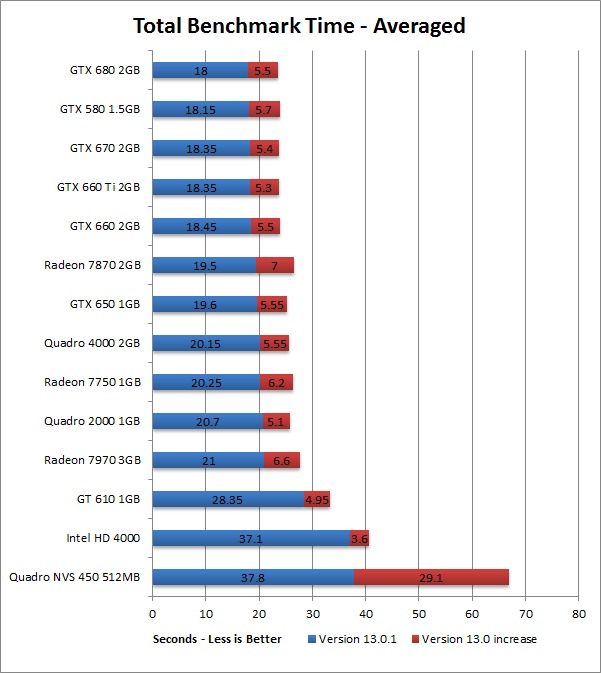

Totaling together the time it took for all of the effects to complete, then averaging the results from both chipsets (except the HD 4000 which was only available on the Z77 chipset) gives us a great summary of the results. One thing that is very easy to notice is that the 13.0.1 update improved GPU acceleration performance across the board by a very healthy amount. So if you use Photoshop CS6 and have not updated yet, we highly recommend doing so!

The NVIDIA Quadro NVS 450 is understandably the slowest performer since it does not support OpenCL, but you can see the massive increase in performance it received with the 13.0.1 update. Post-update, it is pretty close to the Intel HD 4000 graphics, which did a surprisingly decent job considering that it is integrated onto the CPU. However, even if you are on a very tight budget, the improvement gained by adding a cheap NVIDIA GT 610 1GB card is well worth the cost in our opinion.

If you have a bit more of a budget, the NVIDIA Geforce GTX 650 1GB and AMD Radeon HD 7750 are both budget-friendly cards, yet give performance that is very close to the more expensive cards. For the absolute best performance, the NVIDIA Geforce GTX 680 2GB tops our charts with the GTX 580 2GB just slightly behind. The NVIDIA Geforce GTX 670, GTX 660 Ti and GTX 660 are all less than half a second behind the GTX 680, however, so if you are looking for a way to save a decent amount of money with minimal performance loss, using a NVIDIA GTX 660 2GB is definitely worth considering.

The odd point in our benchmarks is the AMD Radeon HD 7970. Strangely, it did worse than the AMD Radeon HD 7750 and Radeon HD 7870 even though it is technically a much more powerful card. We have no idea why this is, but to be sure we did not have erroneous results we actually ended up running many of our benchmarks dozens of times just to be 100% sure of our results. Each time, the results were the same even after reinstalling the video driver and even reinstalling the main OS.

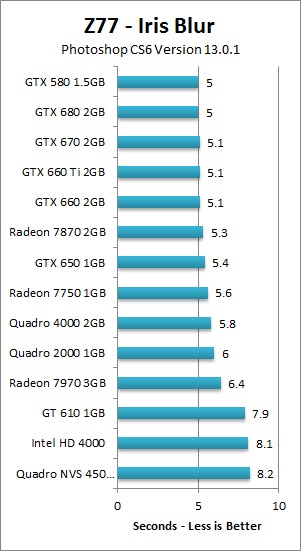

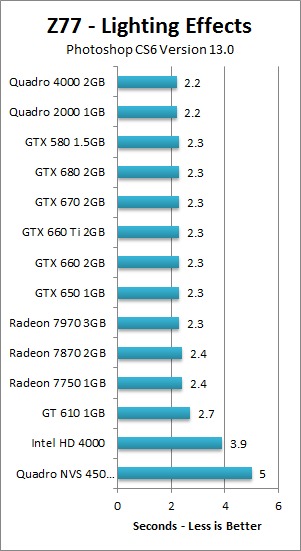

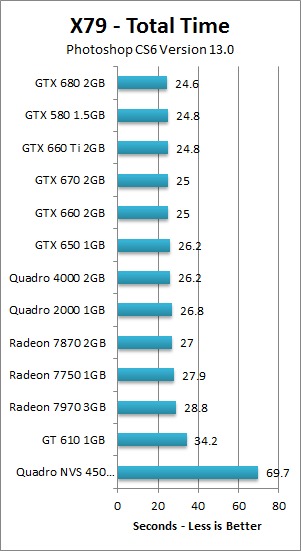

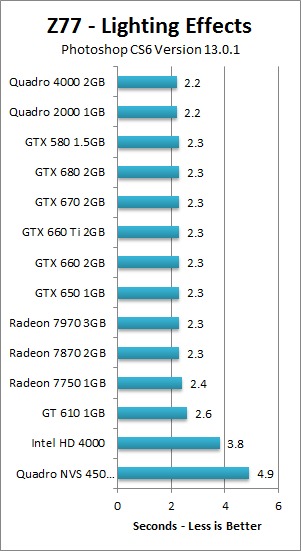

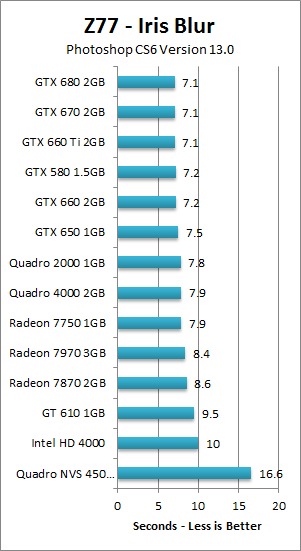

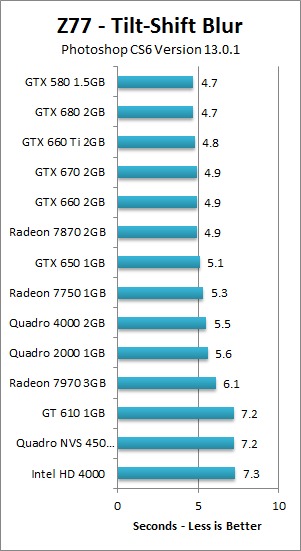

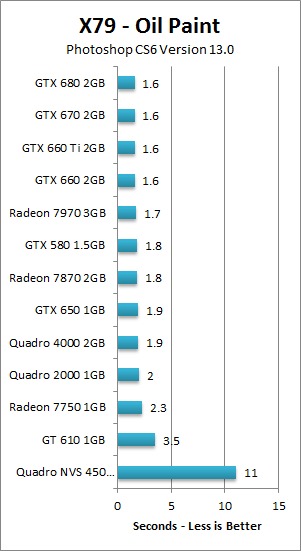

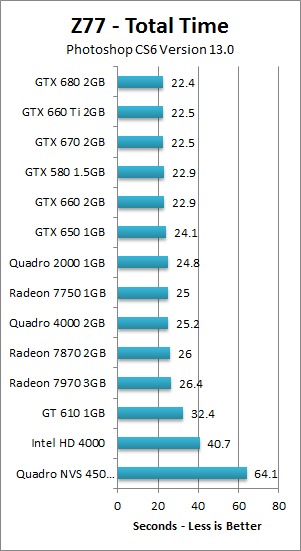

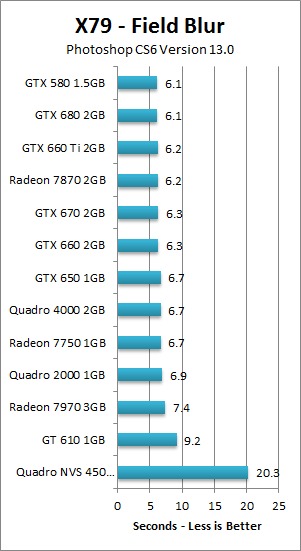

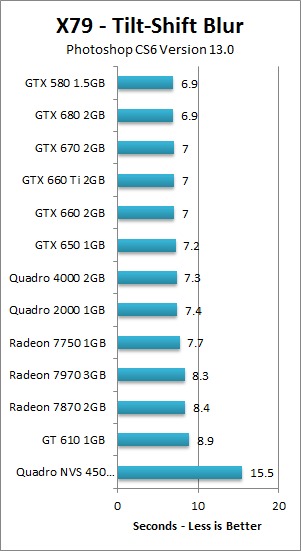

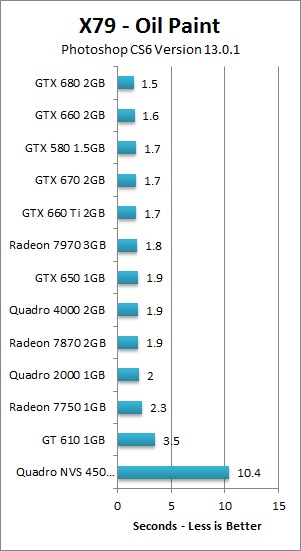

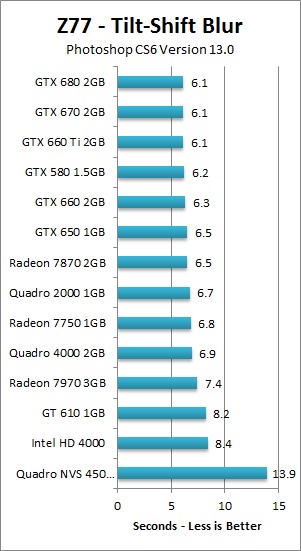

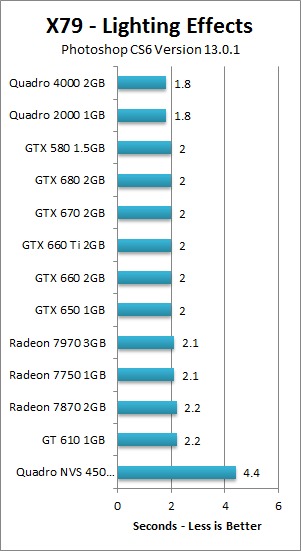

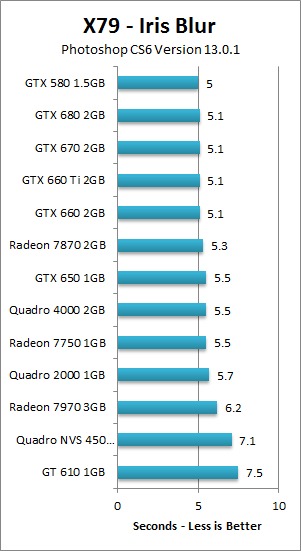

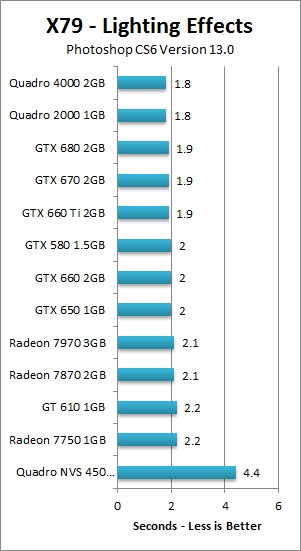

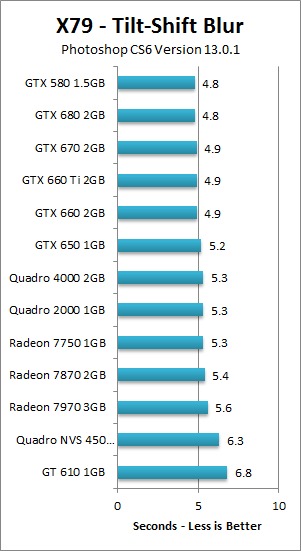

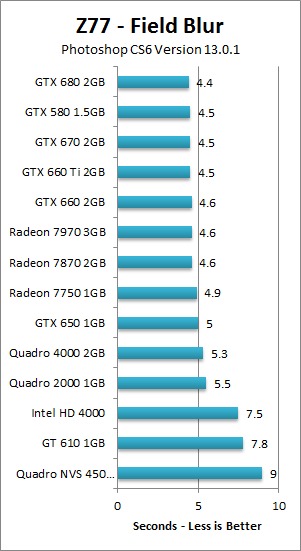

If you would like to see the individual benchmark times for each effect, feel free to click on any of the thumbnails below for a closer look.

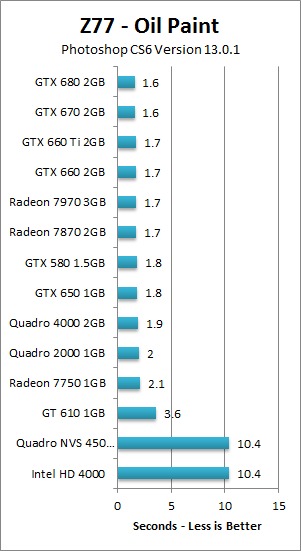

Photoshop CS6 Version 13.0.1

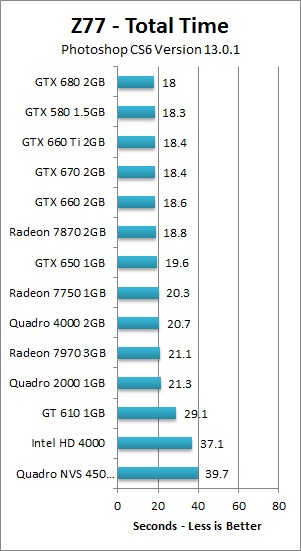

Z77 Chipset

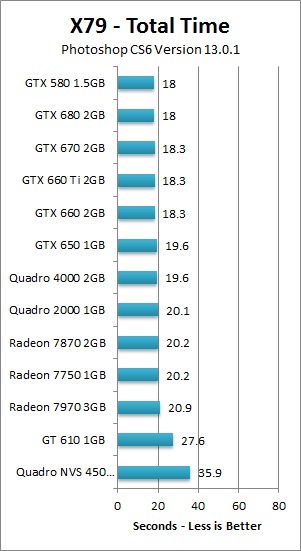

X79 Chipset

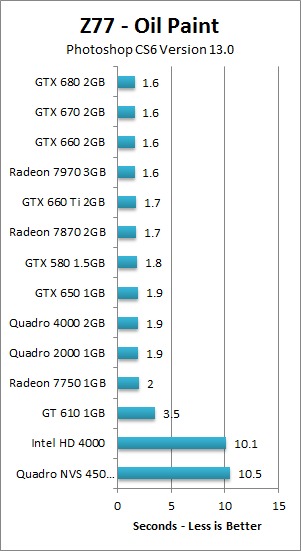

Photoshop CS6 Version 13.0
Z77 Chipset
X79 Chipset



Conclusion

From our testing, we can now confidently state that even though the NVIDIA 600-series and Intel HD 4000 graphics are not on Adobe's compatibility list, GPU acceleration in Photoshop CS6 works great on those cards. So, contrary to the compatibility list, there is no reason to use an older generation NVIDIA GTX 580 since the current generation NVIDIA cards performs as well or better.

From a budget standpoint, the NVIDIA Geforce GTX 650 1GB and AMD Radeon HD 7750 both did great for their price points, performing just a few seconds slower than the fastest cards we tested. If you have a bit more to spend, but cannot afford a NVIDIA GTX 680 2GB (which was the top performer), we recommend the NVIDIA Geforce GTX 660 2GB as it's performance was almost identical to the NVIDIA Geforce GTX 660 Ti and GTX 670, yet is much cheaper.

Update 2/5/2013: If you are interested in optimizing your system for Photoshop CS6, check out our Photoshop CS6 Memory Optimization article!

Tags: Advice, Technology, Photoshop, Performance
