DaVinci Resolve 14 GPU Performance: NVIDIA Titan V 12GB

Written on February 9, 2018 by Matt Bach
Share:

Introduction

The NVIDIA Titan V 12GB is the latest in NVIDIA's Titan line of GPUs and while the $3,000 price tag is pretty steep, it has a number of features that makes it very unique. The two most interesting being full-speed FP64 (double precision) performance and the addition of 640 "Tensor" cores. These special cores are designed specifically for use in machine learning, but both they and the FP64 performance unfortunately has no bearing on performance in software like DaVinci Resolve.

This doesn't make the Titan V a dud, however. This card also features HBM2 memory (which is faster than the GDDR5/GDDR5X VRAM found on most cards) and has more CUDA cores than any other GTX or Titan GPU. In fact, it has 5120 CUDA cores while the Titan Xp and GTX 1080 Ti only have 3840 and 3584 CUDA cores respectively. One thing to note is that while the higher number of cores gives the Titan V a theoretical higher performance ceiling than any other GTX or Titan video card, each individual core in the Titan V is actually slower than the cores in cards like the GTX 1080 Ti or Titan Xp. So just like how a CPU with more cores is not always better, there is a chance that the lower frequency of the Titan V holds it back from being a top pick for software like DaVinci Resolve.

To find out, we will be looking at how this card performs in a number of realistic situations using our newly updated DaVinci Resolve testing process. This new process is not vastly different than our old testing, but simply focuses on a wider range of codecs and has more in-depth Live Playback testing that more accurately reflects real-world workflows. Thanks to all our customers and readers who gave us feedback on our previous articles!

One thing we do want to note is that we will only be looking at single GPU performance in this article. We fully intend on testing dual, triple, and quad GPU setups in the near future, but there is currently a severe GPU shortage and every GPU we get is going directly into customer workstations. Once supply improves a bit, we will publish a follow-up article looking at the Titan V (and other video cards) in multi-GPU setups.

Test Hardware & Methodology

To see how the Titan V performs in DaVinci Resolve, we opted to pair a number of different GPUs with the Intel Core i9 7960X CPU which - based on our previous testing - is the fastest all-around CPU for Resolve. Our full test platform consists of the following hardware:

Test Platform
Motherboard: Gigabyte X299 Designare EX (rev. 1.0)
CPU: Intel Core i9 7960X 2.8GHz (4.2/4.4GHz Turbo) 16 Core
RAM: 8x DDR4-2666 16GB (128GB Total)
Hard Drive: Samsung 960 Pro 1TB M.2 PCI-E x4 NVMe SSD
OS: Windows 10 Pro 64-bit
Software: DaVinci Resolve 14.3.0.014

To act as comparison points, we will be testing a number of NVIDIA GPUs ranging from the Titan V all the way down to the GTX 1060:

For those that read our previous articles, you will notice that our testing looks a bit different since we just recently updated our entire testing process for DaVinci Resolve based on feedback from our customers and readers. The first change is that we are now testing a wider range of codecs using media that is either publicly available for download or transcoded from media that is publicly available. This was done so that anyone can repeat our testing in order to both verify our findings and to see how their current computer stacks up to the latest hardware available.

In addition to changing our test media, we also adjusted the different "levels" of color correction. The lowest level is simply a basic correction using the color wheels plus 4 Power Window nodes that include motion tracking. The next level up is the same adjustments but with the addition of 3 OpenFX nodes: Lens Flare, Tilt-Shift Blur, and Sharpen. The final level has all of the previous nodes plus one TNR node.

For all the RAW footage we tested (CinemaDNG, ARRIRAW, and RED), we not only tested with the RAW decode quality set to "Full Res" but we also tested at "Half Res" ("Half Reg Good" for the RED footage) and "Quarter Res". Full resolution decoding should show the largest performance delta between the different GPUs, but we also want to see what kind of FPS increase you might see by running at a lower decode resolution with the different video cards.

The footage used in our testing is shown below with links to where you can download it yourself:

Codec Resolution FPS Camera Clip Name Source
ProRes 422 HQ 3840x2160 24 fps Ursa Mini 4K City Train Station Blackmagic Design
Production Camera 4K Update
ProRes 4444 3840x2160 59.94 fps Canon C200 Untitled00024199 4K Shooters
Canon C200 Raw Footage Workflow
CinemaDNG 4608x2592 24 fps Ursa Mini 4K Interior Office Blackmagic Design
[Direct Download]
ARRIRAW 6560x3100 23.976 fps ALEXA 65 A003C025
(Open Gate spherical)
ARRI
ALEXA Sample Footage
RED 3840x2160
(11:1)
23.976 fps EPIC DRAGON A016_C001_02073O_001 RED
Sample R3D Files
RED 4096x2304
(7:1)
29.97 fps RED ONE MYSTERIUM A004_C186_011278_001 RED
Sample R3D Files
RED 6144x3160
(12:1)
23.976 fps EPIC DRAGON A007_C115_07181B_001 RED
Sample R3D Files
RED 6144x3077
(7:1)
23.976 fps WEAPON 6K S005_L001_0220LI_001 RED
Sample R3D Files
RED 8192x4096
(12:1)
23.976 fps WEAPON 8K S35 S002_C074_02065Z_001 RED
Sample R3D Files
RED 8192x4320
(9:1)
25 fps WEAPON 8K S35 B001_C096_0902AP_001 RED
Sample R3D Files
RED 8192x4320
(7:1)
23.976 fps EPIC-W 8K S35 S002_C074_02065Z_001 RED
Sample R3D Files
DNxHR HQ
8-bit
3940x2160 29.97 fps Transcoded from RED A004_C186_011278_001
DNxHR HQ
8-bit
6144x3160 23.976 fps Transcoded from RED A007_C115_07181B_001
DNxHR HQ
8-bit
8192x4320 25 fps Transcoded from RED B001_C096_0902AP_001

While this is by no means every codec available, we do feel that this covers a much wider range than our previous testing. In the future we may cut down on the number of RED clips and replace then with something like XAVC-S or AVCHD but for this round of testing we really wanted to see how the different compression levels impact performance.

Live Playback Results

Live playback performance is a challenge to accurately test since performance depends not only on the codec and resolution of your media, but also the number of nodes you use, the effects you have applied, and even the decode resolution when using RAW footage. Since this is the first full round of testing with our new benchmark process, we decided to benchmark all our test media with not only three different "levels" of corrections, but also with the RAW footage at full, half, and quarter playback resolution. For more information on each test media and timeline, check out the Test Hardware & Methodology section. And as always, we welcome any suggestions for future testing in the comments section.



DaVinci Resolve 14.3 Live Playback Benchmark Titan V

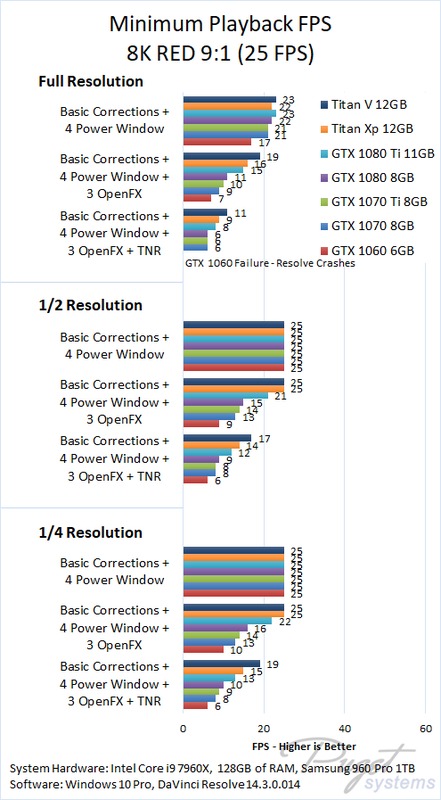

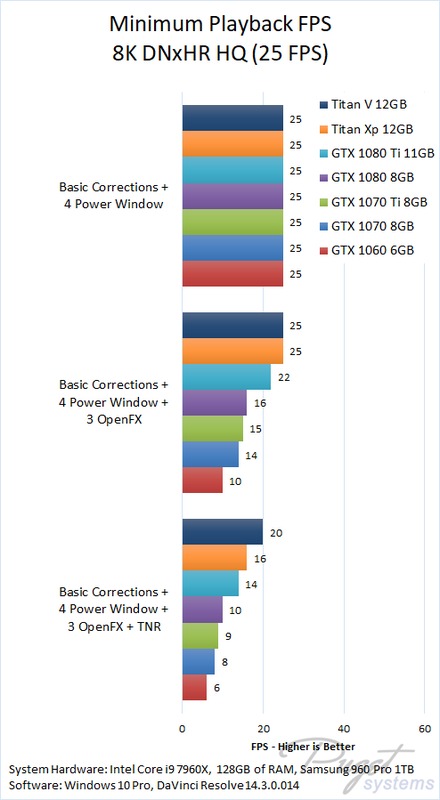

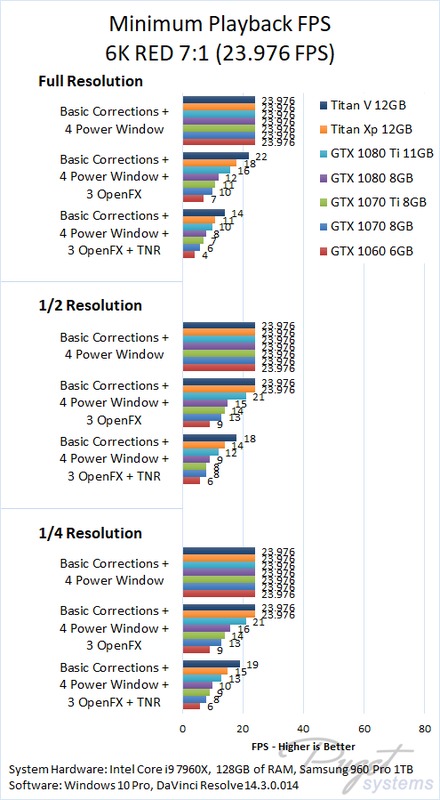

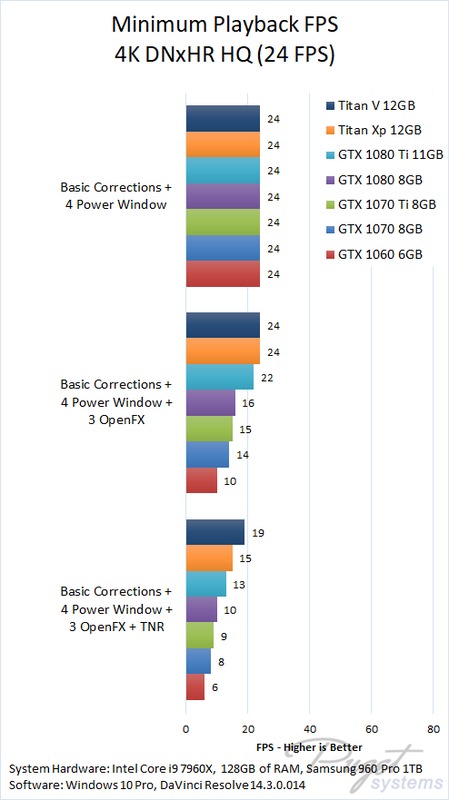

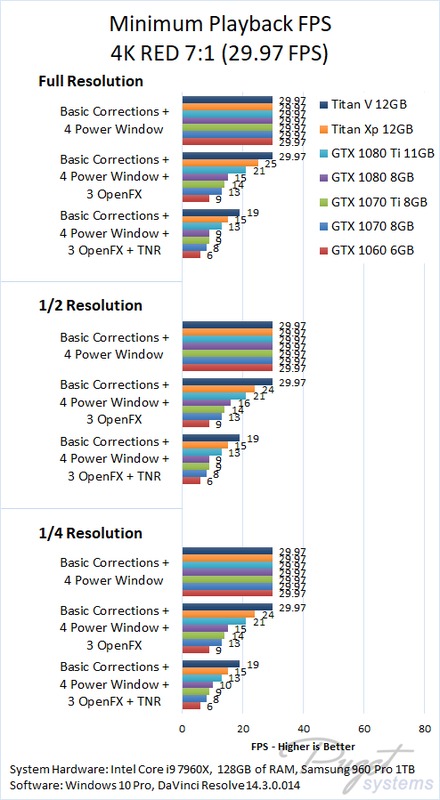

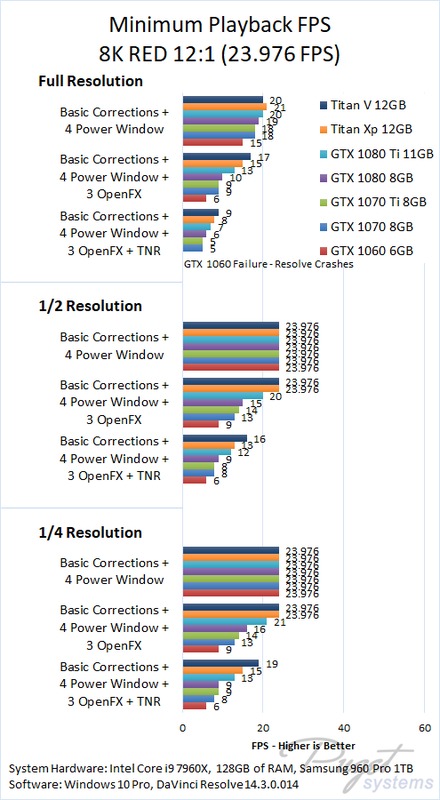

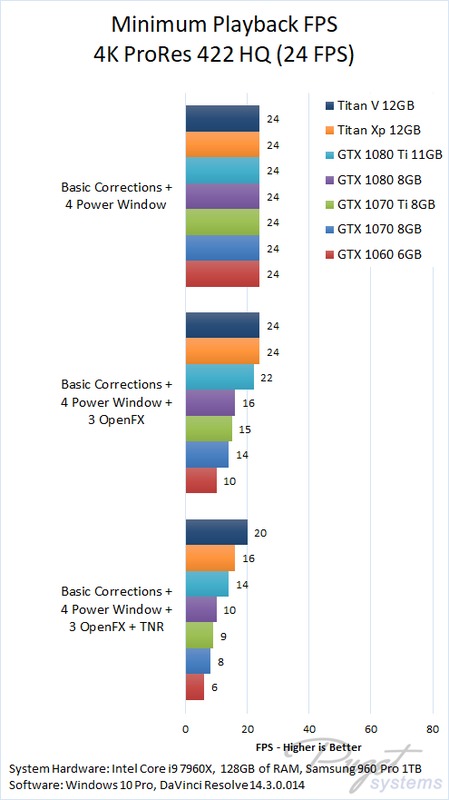

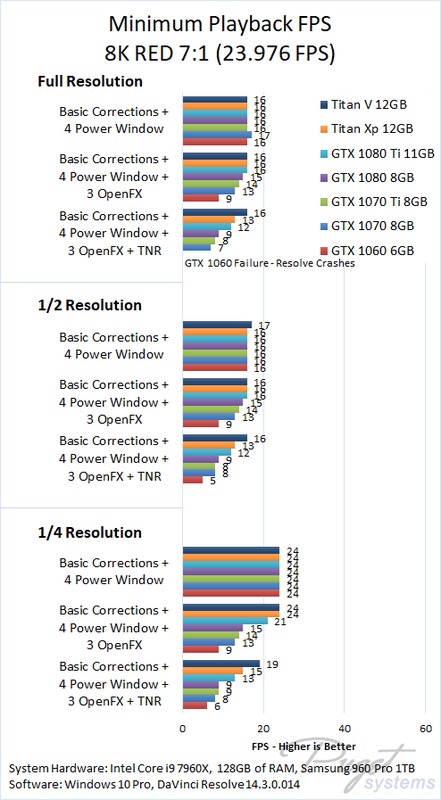

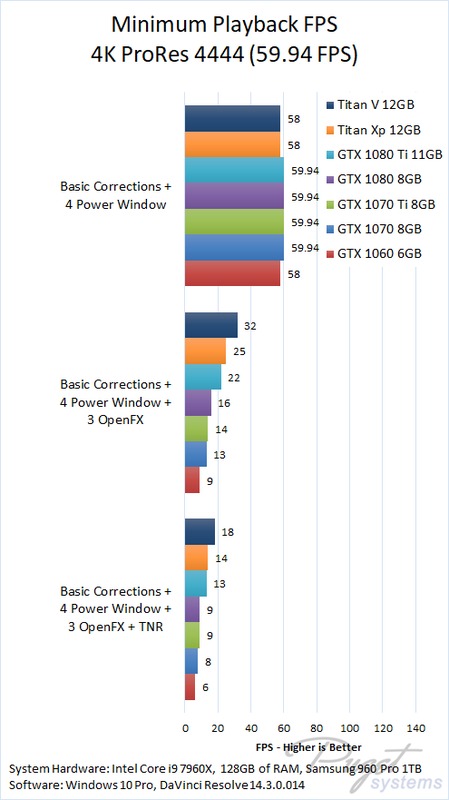

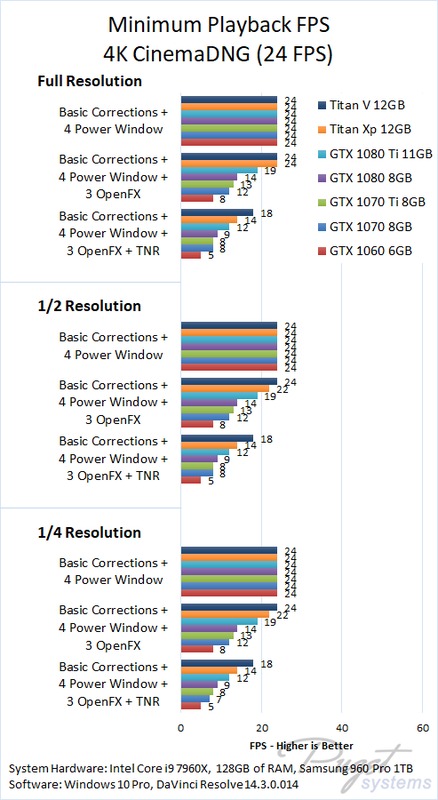

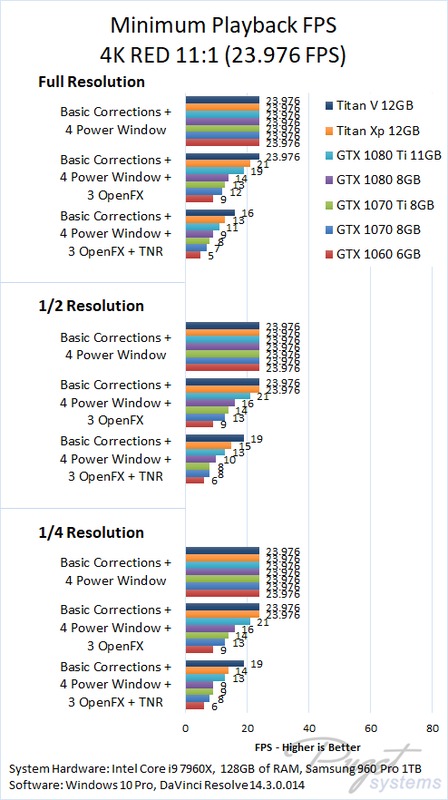

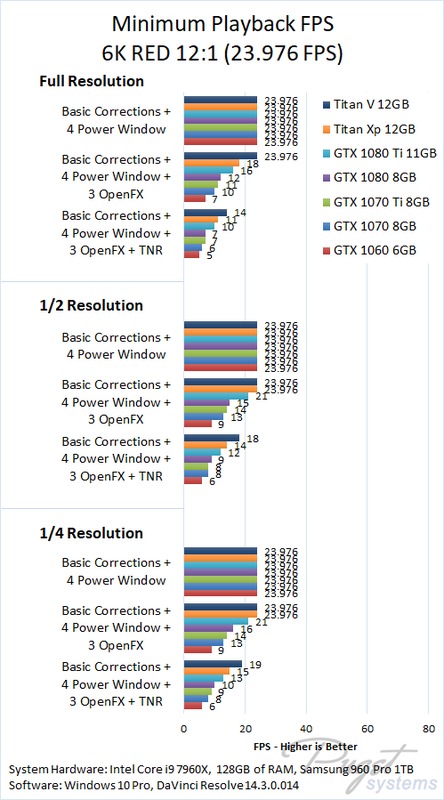

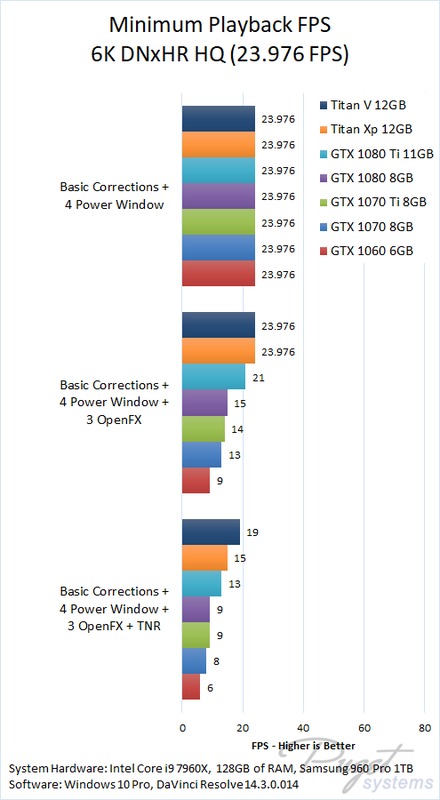

Individual Avg. FPS Results

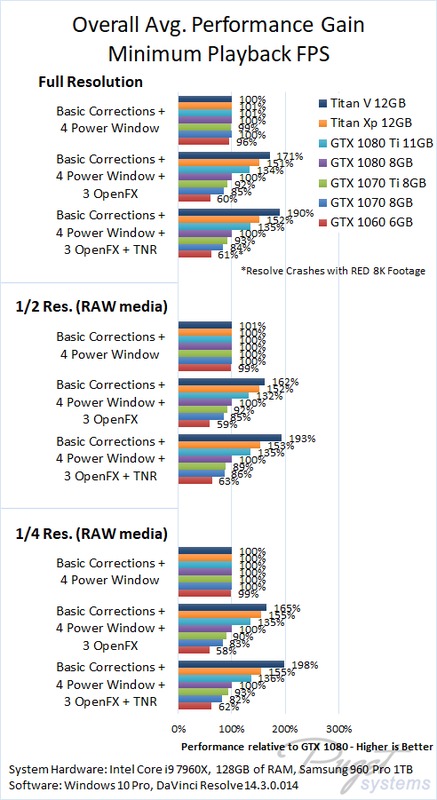

Due to the huge amount of data gathered in our testing (over 650 different data points in total!), we are not going to go through everything point by point. If we tested a codec you typically work with, we highly recommend looking at the "Individual Avg. FPS Results" charts to see exactly what FPS each card was able to achieve with that type of media. However, for a general overview of how each GPU performed we decided to average the results relative to a GTX 1080 8GB video card.

There are a number of very interesting results to talk about, but the first thing we want to point out is that the decode resolution for RAW media actually has little impact on the relative performance difference between each GPU model. We certainly saw higher overall FPS results at lower decode resolutions (especially with 8K media) but the percentage of FPS increase was relatively stable.

As for actual GPU performance, with basic color corrections (via the color wheels) and four power windows with similar corrections, we actually didn't see much difference between the different GPU models. The GTX 1060 was slightly slower than the other cards, but overall if you are just using Resolve for basic color grading then a mid-range GPU should work just fine.

As soon as you start getting into more complex workflows with things like OpenFX or TNR, however, the GPU can make a massive difference. In these heavier workloads, each subsequent model of GPU provides better and better performance. Anyone doing this type of work shouldn't even consider using a GTX 1060 (which actually caused Resolve to crash when trying to use TNR on RED 8K media), but even going from the very solid GTX 1080 to a GTX 1080 Ti can often give a healthy 5-6 FPS bump. Upgrading to a Titan Xp can give you another few FPS (especially with 6K and 8K footage) while the new Titan V sits at the very top providing the best possible performance in Resolve from a single GPU.

Conclusion

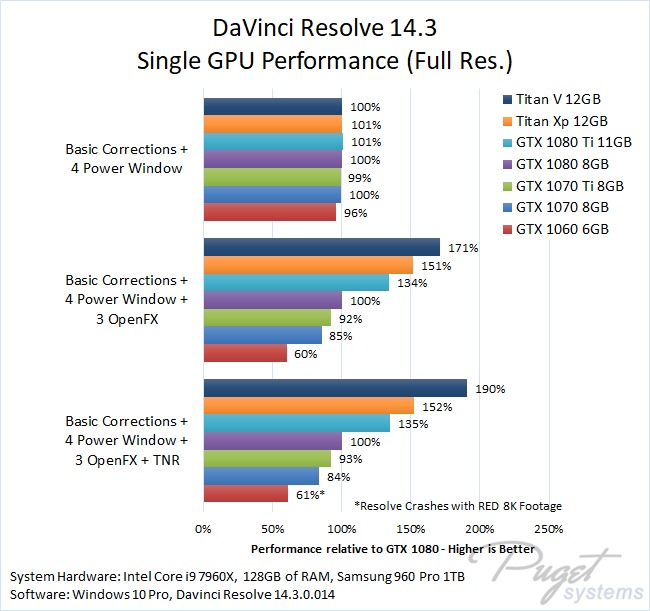

DaVinci Resolve 14.3 Single GPU Performance Benchmark

Looking at just the results with full decode resolution (when available), we get a pretty good idea about how the Titan V stacks up against the other video cards. Frankly, the Titan V is amazing. Expensive at a retail cost of $3,000...but amazing.

Of course, we will freely admit that this testing is only half the picture. Most professional Resolve users are going to be heavily considering a workstation with multiple video cards and it is very likely that two or three GTX 1080 Ti cards will out-perform a single Titan V at a lower cost. This is certainly something we will be looking into as soon as the current GPU shortage lightens up. At the moment, nearly all our GPUs are being immediately allocated for customer machines but once we are able to procure four GTX 1080Ti, Titan Xp, and Titan V cards we will repeat this testing all the way up to quad GPU configurations. Unfortunately we cannot give an accurate timeline on when that testing will be complete but we will get it done as soon as we are able.

Even without multi-GPU testing completed yet, it is clear that the Titan V is a terrific card for those that can justify the cost. If the scaling holds up, the performance possible with four of them in a single workstation is going to be nothing short of amazing.
