  5. Tech Primer: Intel E5 Xeon CPUs (Sandy Bridge-EP)

Tech Primer: Intel E5 Xeon CPUs (Sandy Bridge-EP)

Posted on March 6, 2012 by Matt Bach
Always look at the date when you read an article. Some of the content in this article is most likely out of date, as it was written on March 6, 2012. For newer information, see our more recent articles.

Table of Contents

  • Introduction
  • Meet Sandy Bridge-EP
  • Detailed Features
  • Romley Platform
  • Conclusion

Introduction

Intel Xeon Sandy Bridge-EP LogoIn late 2011, Intel launched their desktop series of Sandy Bridge-E processors and made it clear that their upcoming Xeon line of processors would be using this same Sandy Bridge-E architecture. The launch of this new Xeon line has finally arrived with the arrival of the Intel Xeon E5 processors. With the move to the Sandy Bridge-E architecture, the E5 series should give higher CPU performance with the same or better thermal limits as the previous generation of Xeon processors.

Because of the new architecture, the E5 series will use an all new platform (codenamed Romley) utilizing socket 2011 which should improve overall system performance in many areas. The naming scheme has also been adjusted due to the changes to the CPU architecture. See the image below for Intel's graphic showing the new naming convention:

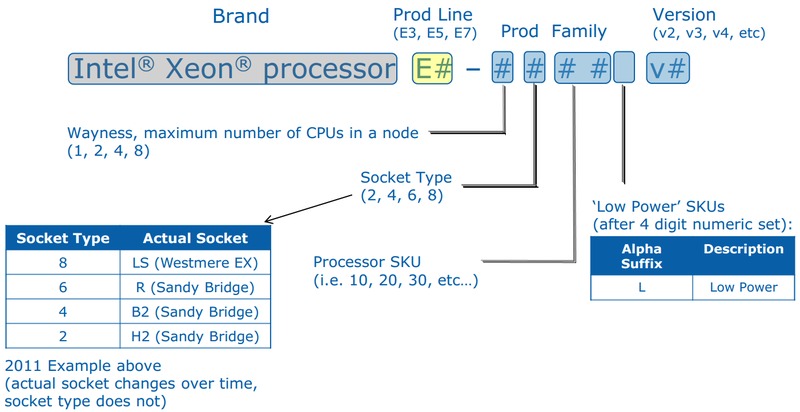

Intel Xeon Sandy Bridge-EP Naming Scheme

Most of this graphic is fairly self-explanatory except for the Socket Type (the second number in the Product Family string). An easier way to follow these socket types is to list them in terms of the LGA type:

8: LGA 1567
6: LGA 2011
4: LGA 1356
2: LGA 1155

Note that this only applies at the time of this article and a short period after. Even though the R (Sandy Bridge) socket currently uses LGA 2011, that does not mean that Intel will not use a different or new socket in the future. For at least the first half of 2012, however, this should be an accurate way to think of the socket associations.

Meet Sandy Bridge-EP

At launch, Intel is releasing a very wide variety of products as you can see below. Finding just the right CPU for a given application will be difficult for many due to the wide variety, but it also means that there should be a CPU perfectly suited for nearly any application. The offerings range from low frequency, four core budget CPUs to high frequency, six core CPUs up to medium frequency, eight core CPUs.

Model Stock Frequency Turbo Boost Cores / Threads  Shared L3 Cache Thermal Output
E5-2690 2.9Ghz Yes 8/16 20MB 135W
E5-2687W 3.1Ghz Yes 8/16 20MB 150W
E5-2680 2.7Ghz Yes 8/16 20MB 130W
E5-2670 2.6Ghz Yes 8/16 20MB 115W
E5-2667 2.9Ghz Yes 6/12 15MB 130W
E5-2665 2.4Ghz Yes 8/16 20MB 115W
E5-2660 2.2Ghz Yes 8/16 20MB 95W
E5-2650 2.0Ghz Yes 8/16 20MB 95W
E5-2643 3.3Ghz Yes 4/8 10MB 130W
E5-2640 2.5Ghz Yes 6/12 15MB 95W
E5-2637 3.0Ghz Yes 2/4 5MB 95W
E5-2630 2.3Ghz Yes 6/12 15MB 95W
E5-2620 2.0Ghz Yes 6/12 15MB 95W
E5-2609 2.4Ghz No 4/4 10MB 80W
E5-2603 1.8Ghz No 4/4 10MB 80W
E5-1660 3.3Ghz Yes 6/12 15MB 130W
E5-1650 3.2Ghz Yes 6/12 12MB 130W
E5-1620 3.6Ghz Yes 4/4 10MB 130W


As you can see, the number of options available is almost overwhelming. The available frequencies range from a modest 1.8Ghz all the way up to 3.6Ghz. The number of cores vary from 2 to 8, with the amount of L3 cache varying roughly in line with the core count between 5MB and 20MB total. This chart is great for comparing the new CPUs against other CPUs in their product line, but it does not give us any idea of the performance advantages over the previous generation. For that, let's take a look at the detailed features of the E5 series versus the previous 5600 series of Xeon processors.

Detailed Features

Below is a quick breakdown of the features of the E5 series of processor versus the previous 5600 series:

  E5 Series (Sandy Bridge-EP) 5600 Series (Westmere-EP)
Maximum Cores 8 6
Turbo Boost Version 2.0 1.0
L2 Cache per core 256KB 256KB
L3 Cache 20MB 12MB
QPI Link Speed Up to 8.0GT/s Up to 6.4GT/s
Memory Support Up to 4 DDR3 1600MHz memory channels per CPU Up to 3 DDR3 1333MHz memory channels per CPU
Process Technology 32nm 32nm
Socket 2011 1366


As you can see, there are improvements nearly across the board with the E5 series. The number of cores has increased to eight and with the new Turbo Boost 2.0, the turbo frequencies are greater than on the 5600 series. The amount of L2 cache per core has not increased, but the total possible L3 cache has increased from 12MB to 20MB.

The increased QPI link speed means that the CPU will be able to communicate with the rest of the system much faster. And while the process technology for manufacturing has not improved, the E5 series will use the new socket 2011 which allows for more contact points between the CPU and the motherboard. Finally, the increase memory support will allow more RAM operating at faster speeds to be used which can also result in an overall system performance boost.

While new product lines are usually faster than their predecessors, the E5 series adds so many improvements that it is actually somewhat difficult to make comparisons to the previous generation. One thing is very clear, however: the E5 series will certainly have a very nice performance boost over the previous generation.

Romley Platform

Alongside the new E5 Xeon processors, Intel is also launching a corresponding platform codenamed Romley. Pictured below is a comparison between the previous generation 5500/5600 platform and the new Romley platform.

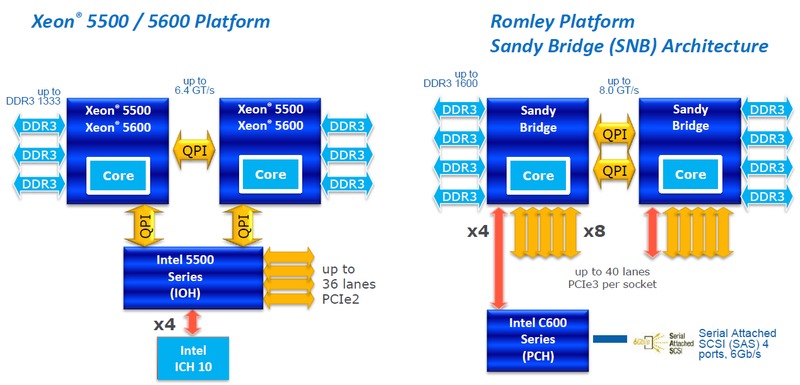

Intel Romley Platform Schematic

As you can see from the graphic, the move to the new Romley platform brings about quite a few changes. One of the largest changes is that the PCIe lanes are now controlled directly from the CPU and do not pass through the chipset. The chipset on the Xeon 5500/5600 platform has always run very hot, often requiring either a high airflow chassis or dedicated cooling to keep it at a safe temperature. This one change alone will help reduce the temperature of the chipset and make it much easier to cool properly. For an example of the difference, check out the temperature section of our Asus Z9PE-DB WS qualification article in which we look at the heat of a Romley Chipset compared to an Intel 5520 chipset. In addition to the thermal advantages, the change of how the PCIe lanes are controlled will also make the communication between the CPU and the PCIe lanes much faster and more efficient resulting in increased system performance.

Since the PCIe lanes are controlled by the CPU now, the total number of PCIe lanes available now depends on the number of CPUs being used. Each CPU can now handle 40 PCIe 3.0 lanes versus the previous generation's 36 PCIe 2.0 lane total. So a single socket Romley system will provide 40 PCIe lanes, while a dual socket system can provide 80 PCIe lanes. The communication path between dual CPUs has also been increased with dual QPI links now available rather than just a single link which results in an 1.6GT/s increase in data transfer speeds between the CPUs.

Finally, RAM compatibility has been improved with an update to four DDR3 lanes (8 physical sticks) per socket over the previous 3 lanes (6 physical sticks) per socket. The usable RAM frequency has also received a slight bump, upping from 1333Mhz to 1600Mhz.

Conclusion

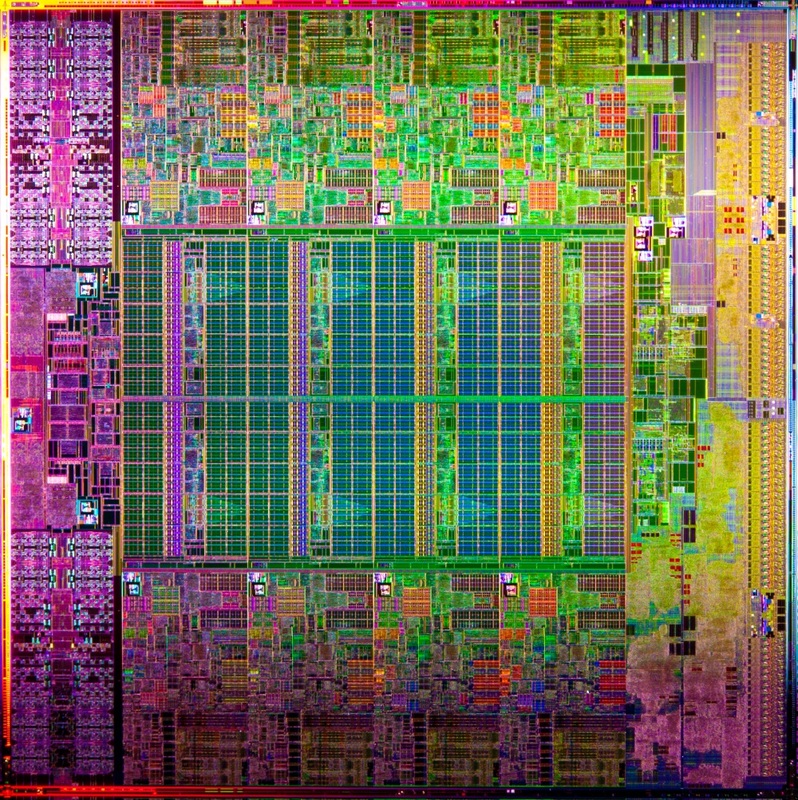

Intel Xeon E5 Sandy Bridge-EP Product DieAfter reviewing all the changes and features of the Xeon E5 series of CPU and the corresponding Romley platform, it's clear that there will be a very noticeable performance improvement with this new line. The previous Westmere-EP series of Xeons are going end of life, but even if they were not, there would be absolutely no reason not to update our product line to the E5 series.

Due to the huge number of E5 processors available, we will only actively list the CPUs that meet the majority of our customer's needs. If there is a specific CPU you are looking for and we do not list it on our product pages, we encourage you to contact our Puget Systems team at [email protected] to find out if it is available or if another CPU would be better suited for your needs.
