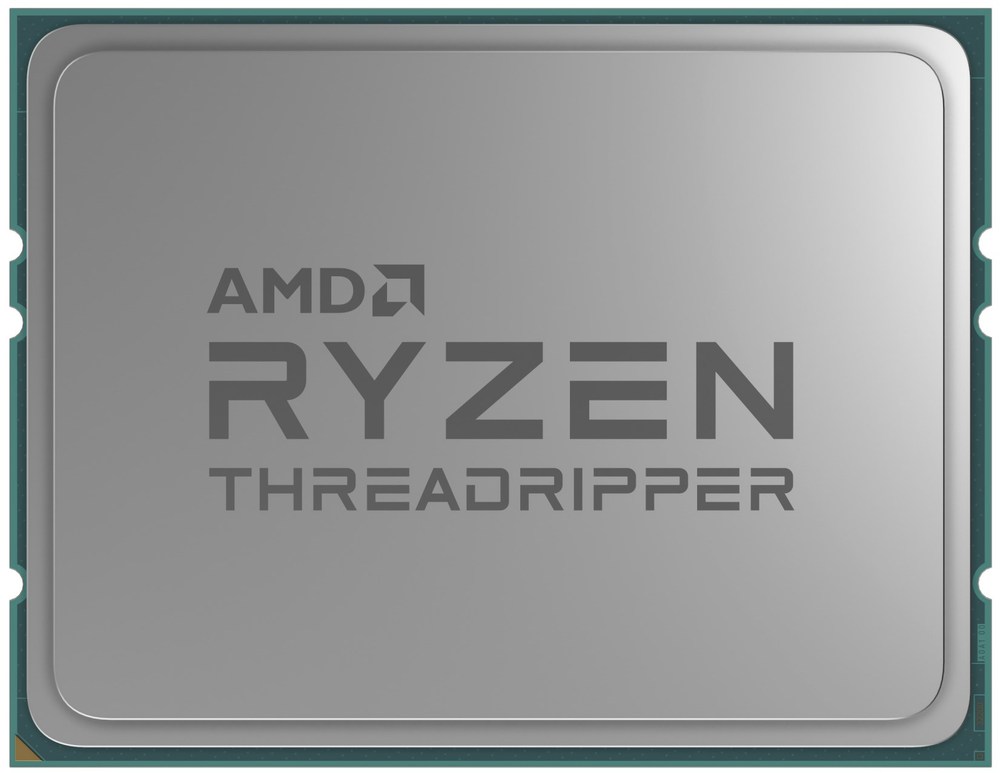

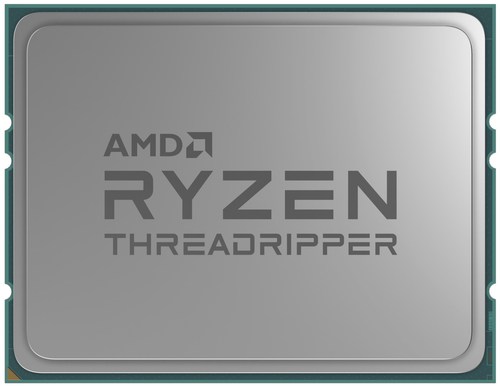

AMD Ryzen Threadripper 3960X 3.8GHz 24 Core 280W
CPU
Background on AMD Ryzen Threadripper CPU
AMD's Threadripper processors are built for heavy multi-tasking and applications that can use multiple CPU cores well. They are the top-end of AMD's consumer CPU line, and their focus is on a huge number of cores, threads, and PCI-Express lanes.
This series debuted in 2017, but the 3rd generation that is now available has improved upon the original design in many ways. These 3000-series models are based on AMD's "Zen 2" 7nm chiplet architecture, down from 14nm in the first generation, and have higher clocks with dramatically improved single-core speed. They are also among the first processors to support PCI-Express 4.0.
Lots of cores combined with solid per-core performance makes for a fantastic combination. Check out how these Threadripper chips handle real-world applications in our numerous CPU comparison articles.
Specifications:
| Product Line | Threadripper |
| Code Name | Castle Peak |
| Socket | sTRX4 |
| Process | 7 nm |
| Number of Cores | 24 |
| Clock Speed | 3.80 GHz |
| Simultaneous Multi-Threading | Yes |
| Turbo Boost | Yes |
| Max. Turbo Boost | 4.50 GHz |
| Thermal Output | 280 W |
| PCI-E Lanes | 56 |
| Max Temperature | 95 C |
| Cache | |
| L2 | 12MB |
| L3 | 128MB |
| Memory Specification | |
| Memory Type | DDR4 |
| Maximum Frequency | 3200 |
| ECC Support | Yes |
| Registered Support | No |
Maximum memory speed is reduced when configured with two DIMMs per channel.
Configure a custom computer with the AMD Ryzen Threadripper 3960X 3.8GHz 24 Core 280W.
