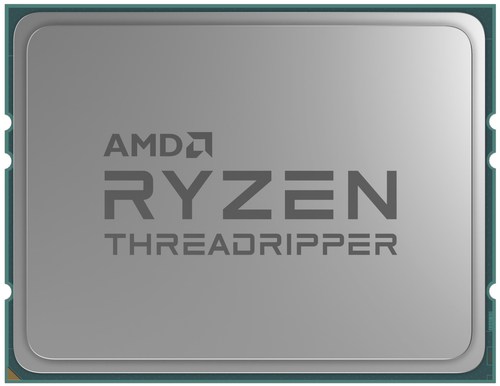

AMD Ryzen Threadripper 3970X 3.7GHz 32 Core 280W

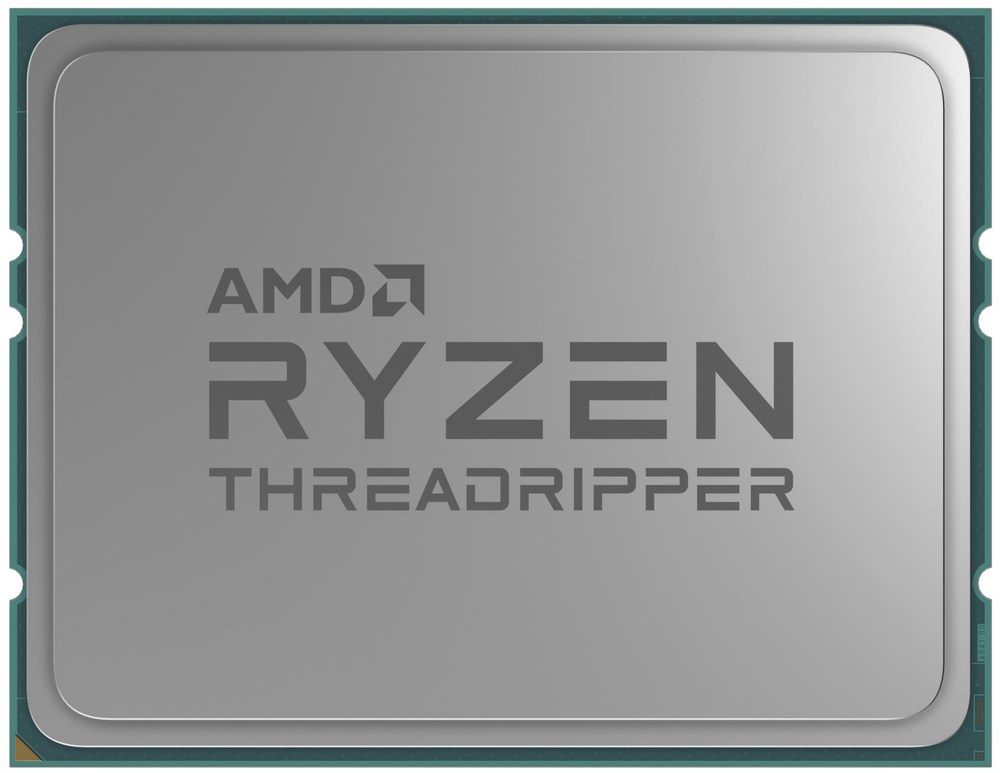

AMD Ryzen Threadripper 3970X 3.7GHz 32 Core 280W Picture 58237

Background on AMD Ryzen Threadripper CPUs

AMD's Threadripper processors are built for heavy multi-tasking and applications that can use multiple CPU cores well. They are the top-end of AMD's consumer CPU line, and their focus is on a huge number of cores, threads, and PCI-Express lanes.

This series debuted in 2017, but the 3rd generation that is now available has improved upon the original design in many ways. These 3000-series models are based on AMD's "Zen 2" 7nm chiplet architecture, down from 14nm in the first generation, and have higher clocks with dramatically improved single-core speed. They are also among the first processors to support PCI-Express 4.0.

Lots of cores combined with solid per-core performance makes for a fantastic combination. Check out how these Threadripper chips handle real-world applications in our numerous CPU comparison articles.

Model: AMD 100-000000011

Product Line  Threadripper
Code Name  Castle Peak
Socket  sTRX4
Process  7 nm
Total Number of Cores  32
Base Clock Speed  3.70 GHz
Simultaneous Multi-Threading  Yes
Turbo Boost  Yes
Max. Turbo Boost  4.50 GHz
Thermal Output  280 W
PCI-E Lanes  56
Max Temperature  95 C
L2  16MB
L3  128MB
Memory Specification
Memory Type  DDR4
Maximum Frequency  3200
ECC Support  Yes
Registered Support  No

Maximum memory speed is reduced when configured with two DIMMs per channel.

  • Single rank: 2933 MT/s
  • Dual rank: 2666 MT/s

Configure a custom computer with the AMD Ryzen Threadripper 3970X 3.7GHz 32 Core 280W.
