AMD Ryzen Threadripper 3990X 2.9GHz 64 Core 280W

CPU

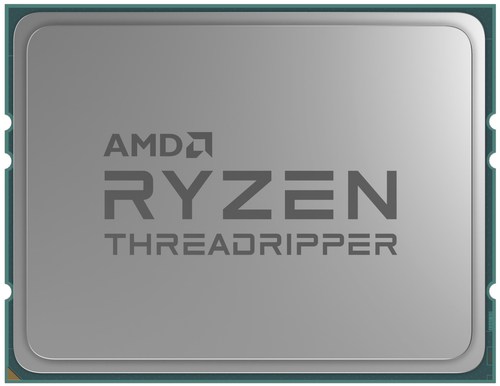

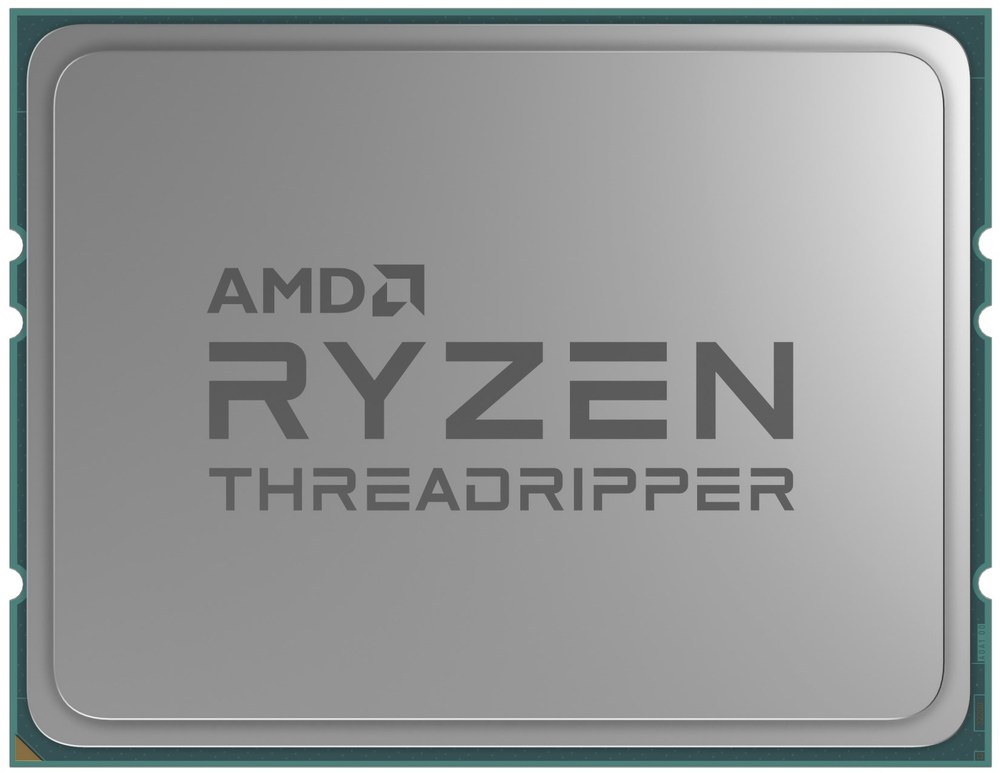

AMD Ryzen Threadripper 3990X 2.9GHz 64 Core 280W Picture 59153

Background on AMD Ryzen Threadripper CPU

AMD's Threadripper processors are built for heavy multi-tasking and applications that can use multiple CPU cores well. They are the top-end of AMD's consumer CPU line, and their focus is on a huge number of cores, threads, and PCI-Express lanes.

This series debuted in 2017, but the 3rd generation that is now available has improved upon the original design in many ways. These 3000-series models are based on AMD's "Zen 2" 7nm chiplet architecture, down from 14nm in the first generation, and have higher clocks with dramatically improved single-core speed. They are also among the first processors to support PCI-Express 4.0.

Lots of cores combined with solid per-core performance makes for a fantastic combination. Check out how these Threadripper chips handle real-world applications in our numerous CPU comparison articles.


William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
Because of its massive thread count (64 cores x 2 threads per core via SMT = 128 threads) it is recommended to use Windows 10 Pro for Workstations with this processor. The normal version of Windows 10 Pro splits up processors with >64 threads in ways which some applications cannot recognize, potentially limiting real-world performance.
Model: AMD 100-100000163WOF

Specifications:
spacer
Product Line  Threadripper
Code Name  Castle Peak
Socket  sTRX4
Process  7 nm
Number of Cores  64
Clock Speed  2.90 GHz
Simultaneous Multi-Threading  Yes
Turbo Boost  Yes
Max. Turbo Boost  4.30 GHz
Thermal Output  280 W
PCI-E Lanes  56
Cache
L2  32MB
L3  256MB
Memory Specification
Memory Type  DDR4
Maximum Frequency  3200
ECC Support  Yes


Configure a custom computer with the AMD Ryzen Threadripper 3990X 2.9GHz 64 Core 280W.
