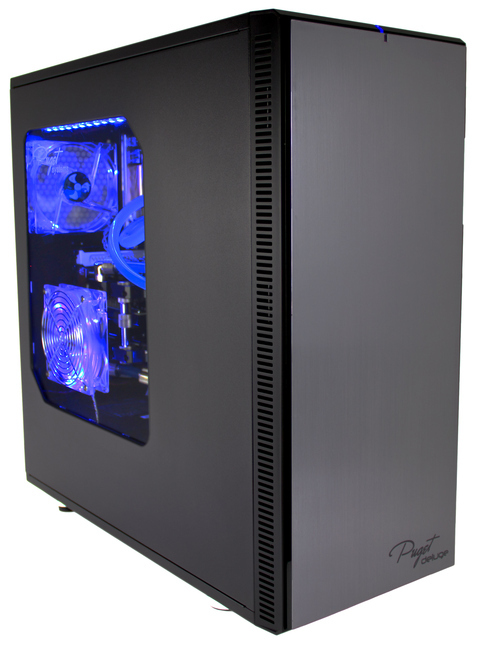

Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package)

Case

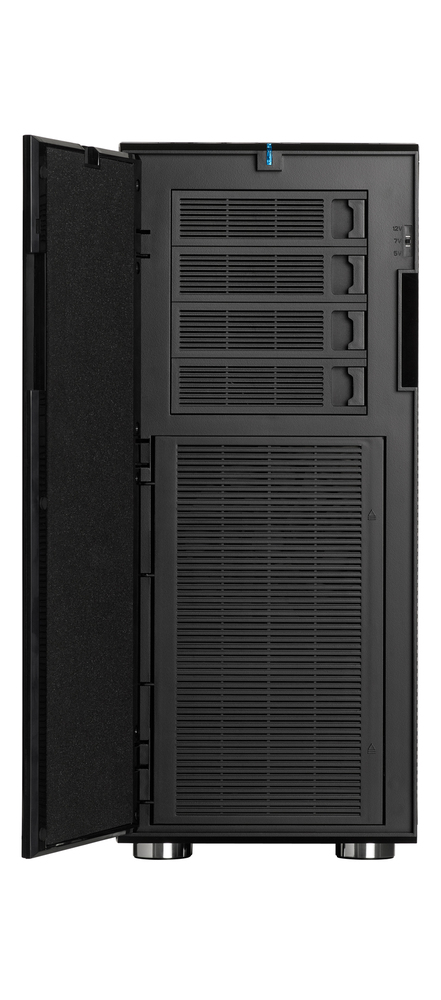

[ Front Panel ]

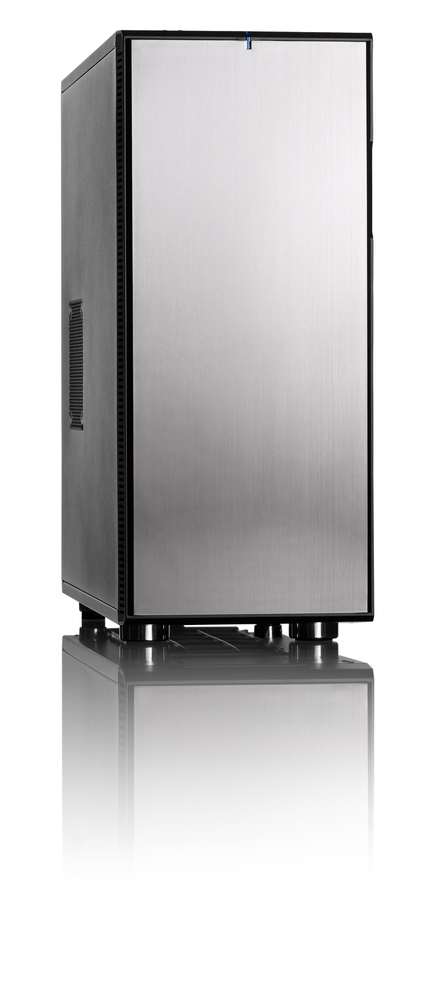

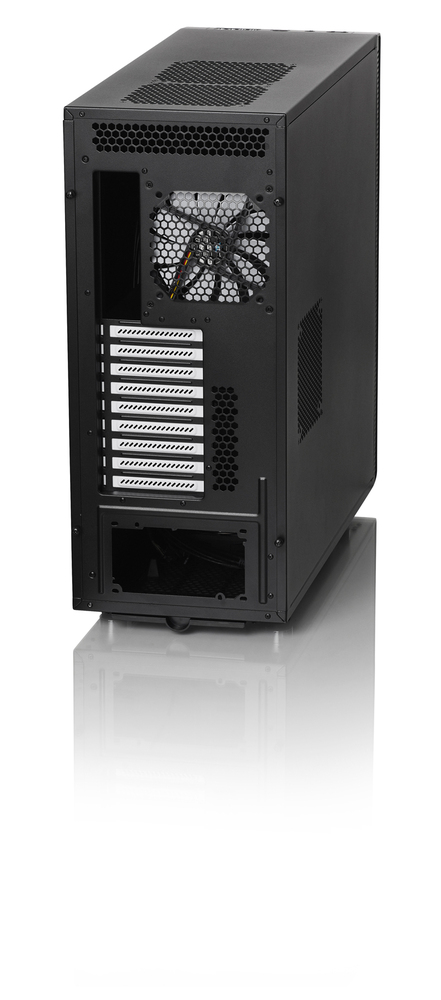

Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 35366Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 35367Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24487Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24482Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24488Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24484Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24495Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24496Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24510Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package) Picture 24492

Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.

Specifications:
spacer
Color  Grey
Material  Plastic front panel, steel frame
Type/Size  Full Tower
Maximum Motherboard Size  XL-ATX
Case Window  No
Power Supply  None
Dimensions
Height  559 mm (22.0 in)
Width  232 mm (9.1 in)
Depth  560 mm (22.0 in)
Net Weight  16.4 kg (36.2 lbs)
Maximum CPU Cooler Height  170mm (with no side fan)
Maximum GPU Length  330mm (480mm with top HD cage removed)
Maximum PSU Length  190mm (345mm with bottom fan removed)
Drive Bays
External 5.25 inch  4
External 3.5 inch  0
Internal 2.5/3.5 inch  4

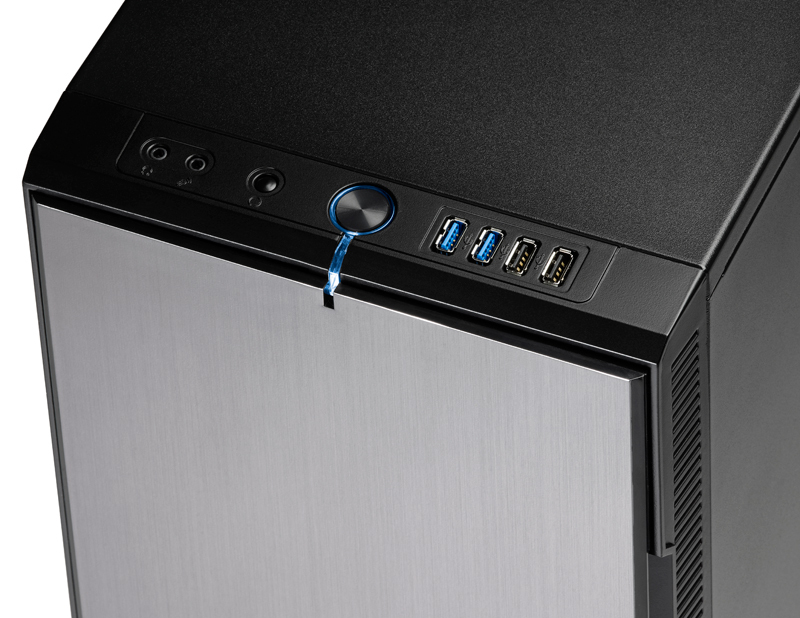

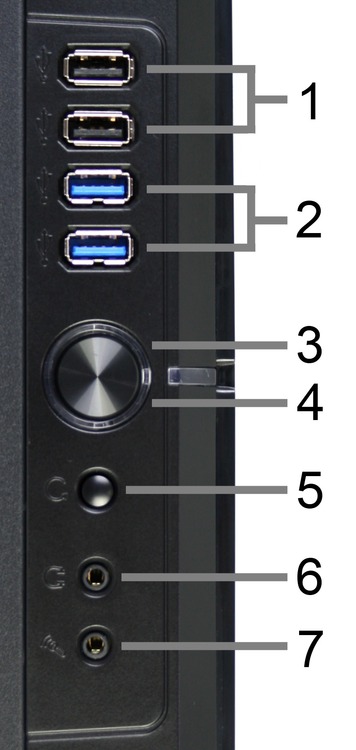

Front Panel Connectors
USB 2.0  2
USB 3.0  2
Audio In  1
Audio Out  1
Cooling System
Cooling Method  Liquid
Included Fans  2x 140mm Top, 1x 140mm Rear, 2x 120mm Front

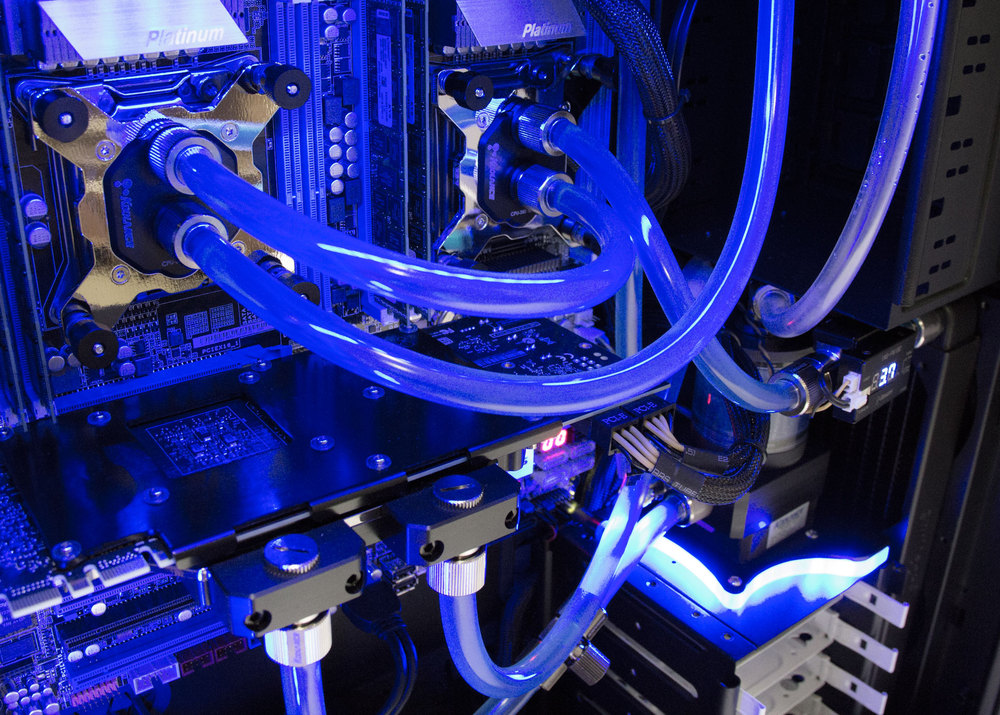

Liquid cooling package includes:

Fractal Design Define XL R2 Titanium Grey

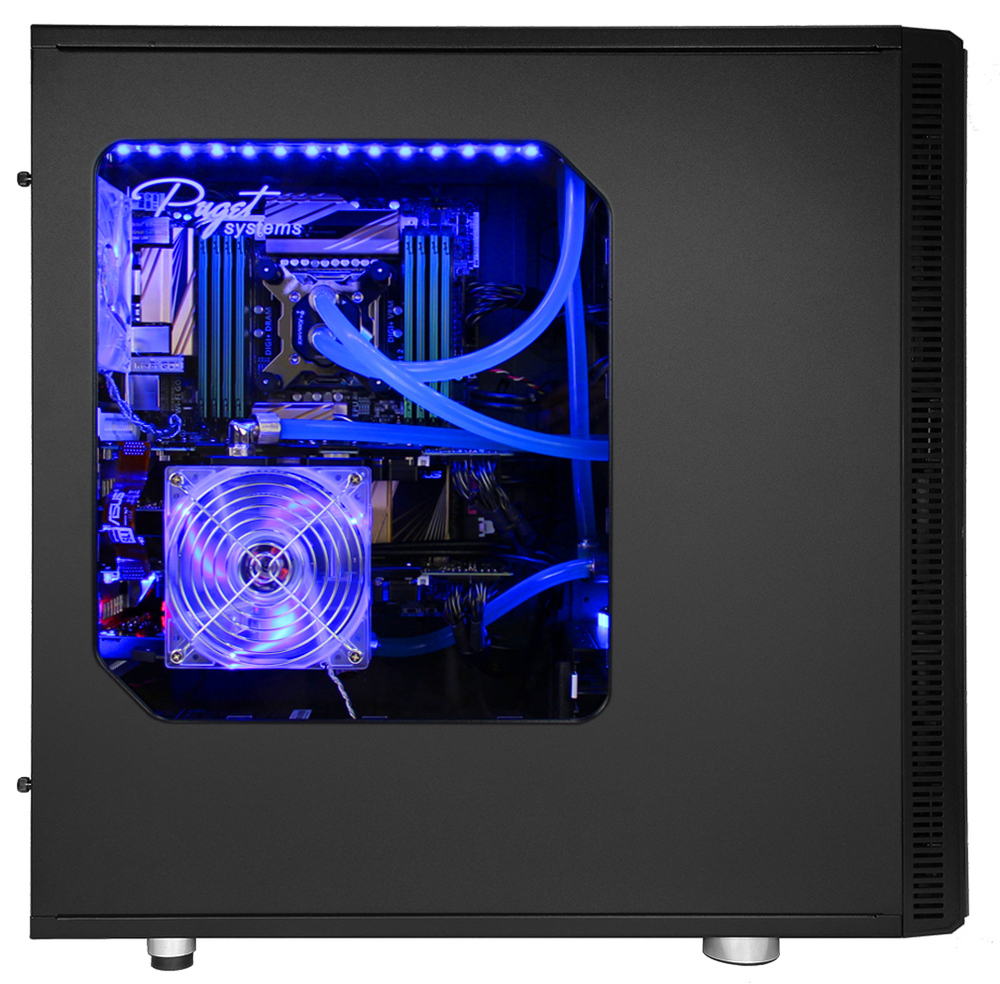

Fractal Design Define XL R2 Titanium Grey Side Panel Window
Swiftech MCR240 Quiet Power Series 2x140mm Radiator
Swiftech MCR240 Quiet Power Series 2x140mm Radiator

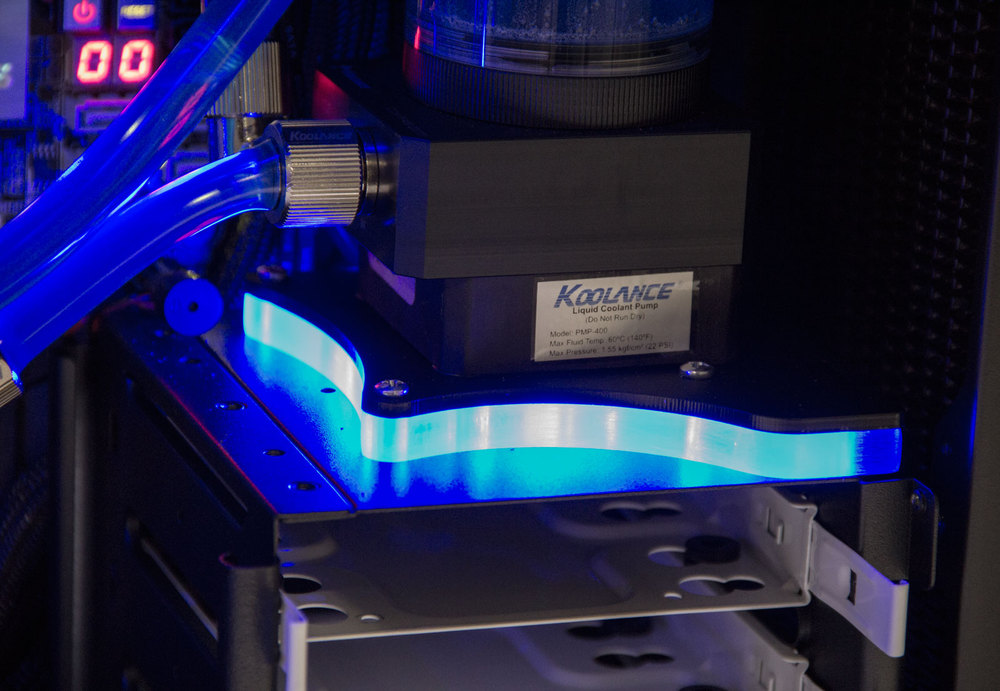

Koolance PMP-400 Pump
Koolance Pump Fitting & Reservoir Base for PMP-400, Rev.2.0
Koolance Reservoir Body, 60x50mm (WxL), 98ml
Koolance Reservoir Top with Fill Port (60mm OD)

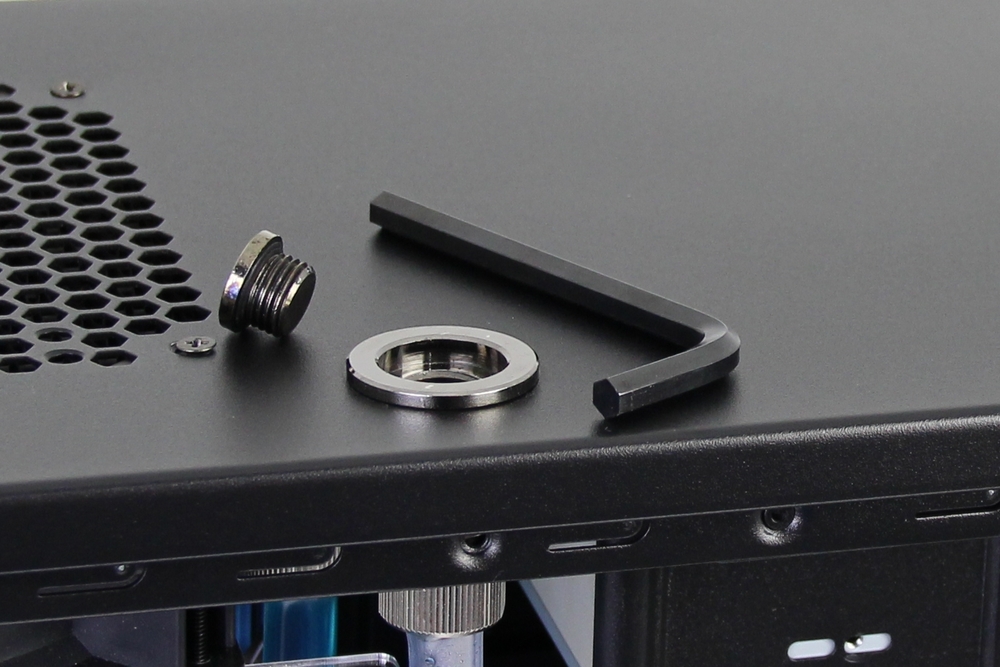

Phobya G1/4 Fillport - Black Nickel
Koolance Drain Valve for ID 10mm (3/8in)
2x Cooljag Everflow 120mm PWM Fan
2x Cooljag Everflow 140mm PWM Fan

Fluid color is blue by default, or matched to the case lighting kit if selected.

When purchased as part of a computer system, all necessary barbs, fittings Koolance 3/8" ID Clear PVC Tubing is included. When purchased as a part, barbs, fitting and tubing must be purchased separately.




with the Fractal Design Define XL R2 Titanium Grey w/ Window (Performance Liquid Cooling Package).
