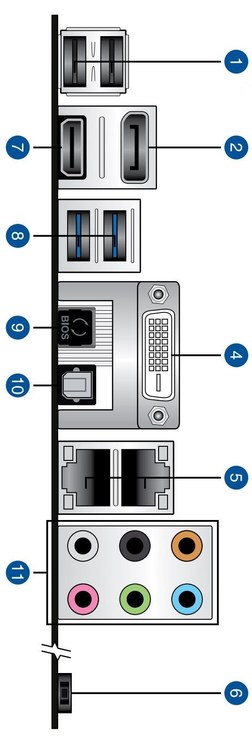

Asus P10S-M WS Ports
USB 2.0 Port(s): Universal Serial Bus (USB) port for connecting USB 2.0 and older devices (480 Mb/s).
DisplayPort Out: DisplayPort for outputting digital video.
DVI (Single Link): Digital Video Interface (DVI) port for outputting digital video. Supports up to 1920x1200.
LAN Port (RJ-45): RJ-45 plug for connecting to a wired Local Area Network (LAN) via Ethernet at up to 100 Mbps.
Power Switch: On/off button for the device.
HDMI Out Port: High Definition Multimedia Interface (HDMI) port for outputting digital video and audio.
USB 3.2 Gen 1 (USB 3.0) Port(s): Universal Serial Bus (USB) port for connecting USB 3.2 Gen 1 and older devices (5 Gb/s).
USB BIOS Flashback Button: Updates UEFI / BIOS from file on connected USB drive without entering pre-boot menu or OS.
Optical S/PDIF Out: Digital audio output port compatible with optical S/PDIF cables / devices (also called TOSLINK).
Audio Jacks: 3.5mm analog audio jacks for various input and output functions (see manual for more information).

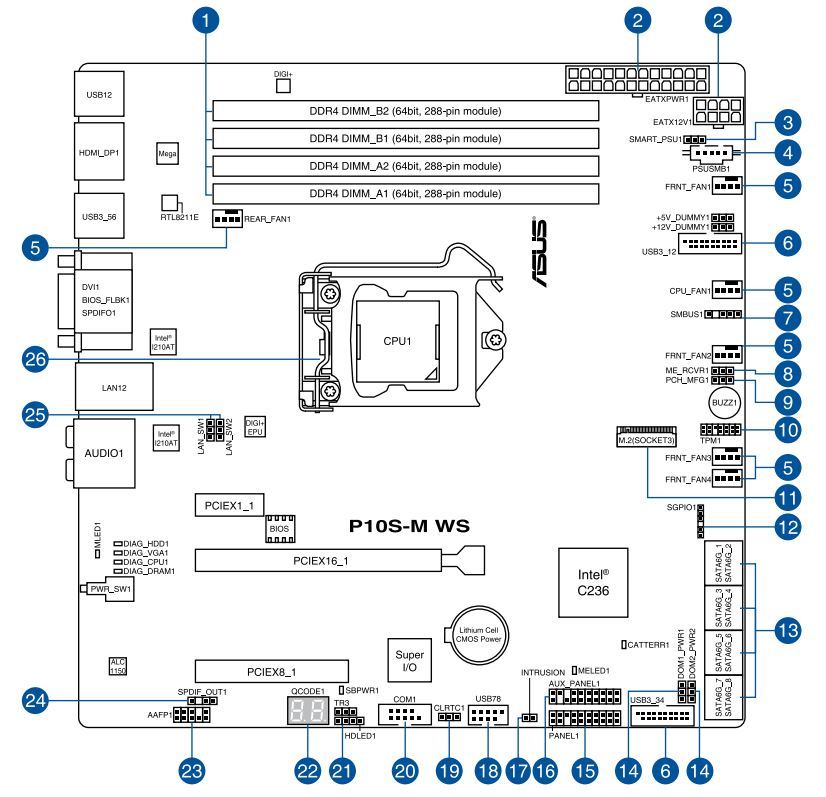

Asus P10S-M WS Schematic
This is a very stable motherboard, and if you use the onboard video the outputs can support 3 monitors with its (1) DVI, (1) HDMI, & (1) DisplayPort outputs. So if you plan to use onboard video outputs, you would want to make sure your monitor(s) have compatible inputs.

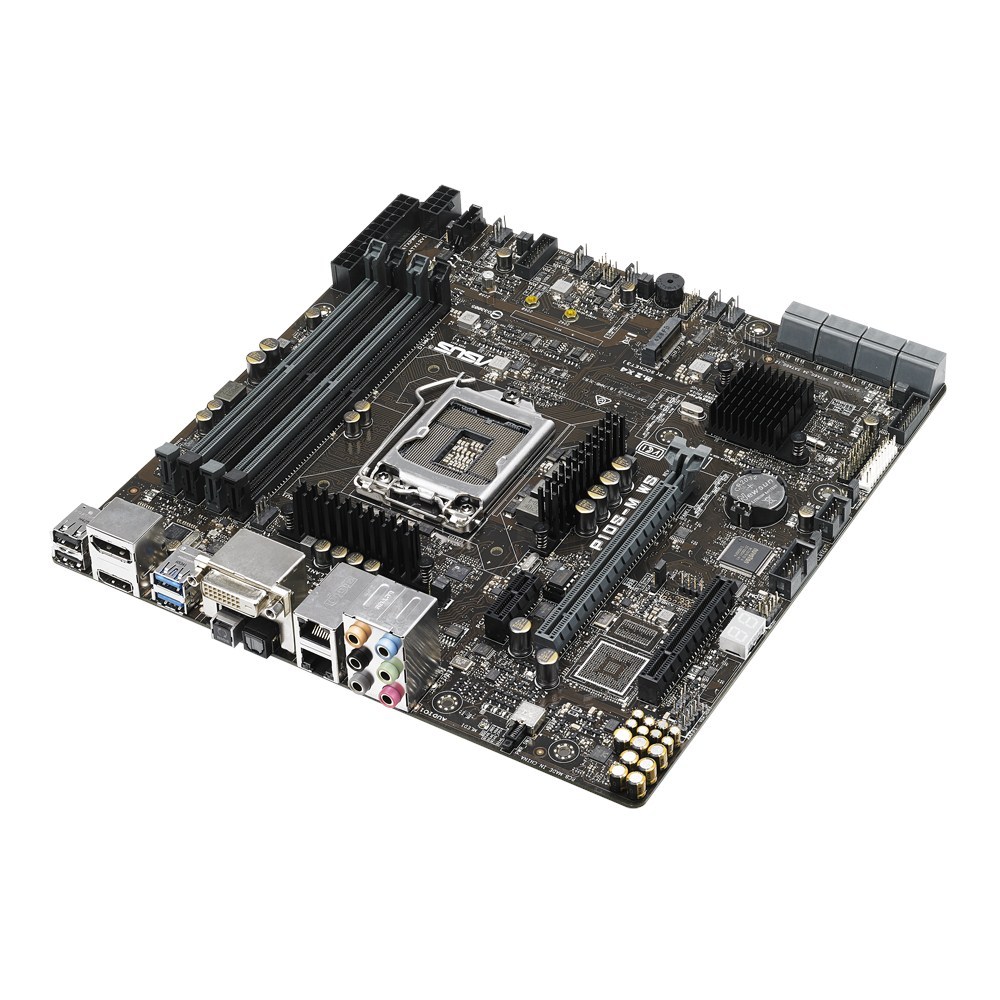

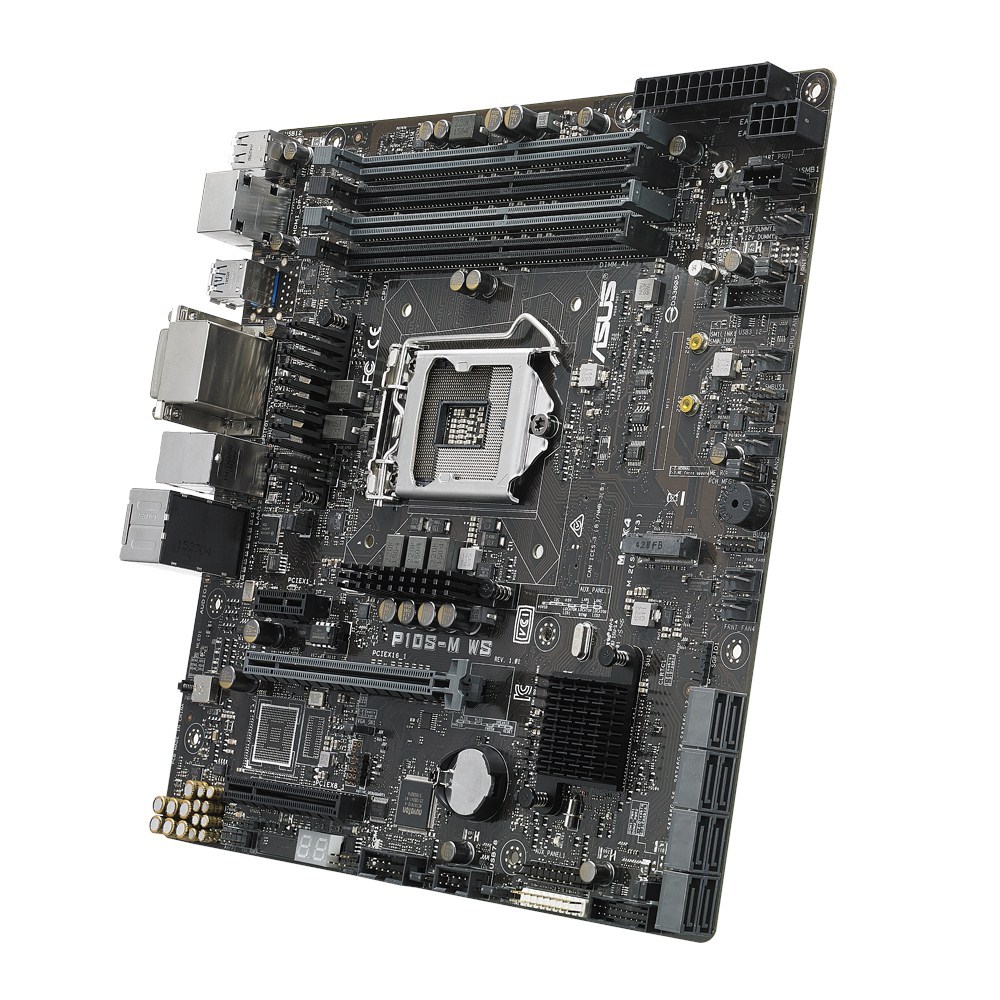

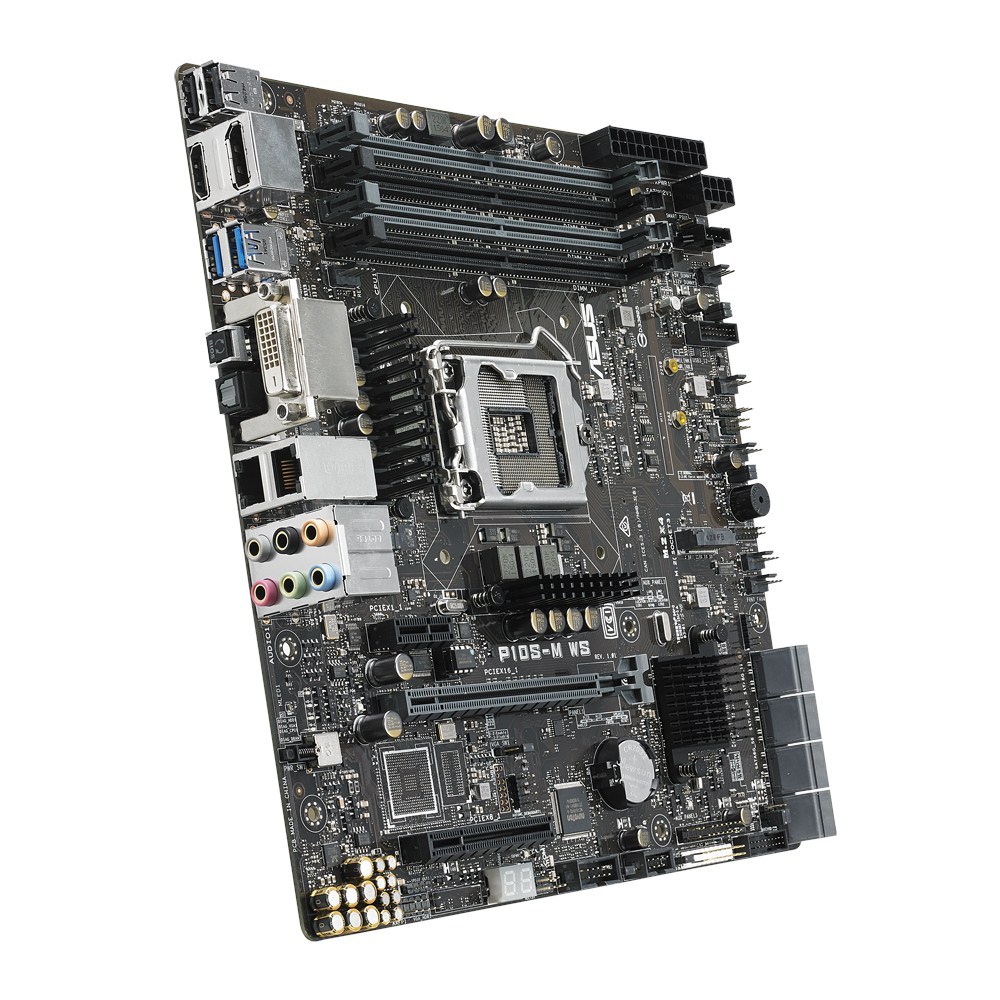

Model: Asus P10S-M WS
Specifications
| Socket | 1151 |
| CPU Compatibility | Intel Socket 1151 Core i7/Core i5/Core i3/for Xeon E3-1200 v5 and 6th generation CoreTM, Pentium and Celeron Processors |
| Form Factor | MicroATX |
| Chipset Manufacturer | Intel |
| Chipset | C236 |
| Front Side Bus | DMI 3.0 |
| Network Connectivity | Gigabit Networking |
| Network Controller | Intel I210 |
| Audio Controller | Onboard Realtek ALC1150 8-Channel High Definition Audio CODEC |
| Cooling System | Heatsink |
| Color | Black |
Memory Support | |
| Type | DDR4 ECC |
| Maximum Speed | 2133 MHz |
| Number of Slots | 4 |
| Maximum Size per Slot | 16 GB |
| Maximum Amount Supported | 64 GB |
Onboard Video | |
| Chipset Manufacturer | Intel |
| Processor Type | CPU Integrated Graphics |
| Maximum Shared Memory | 512 MB |
| Maximum HDMI Resolution | 4096x2160 |
| Maximum DisplayPort Resolution | 4096x2160 |
| DVI | 1 |
| HDMI | 1 |
| HDMI Version | 2.0 |
| DisplayPort | 1 |
| DisplayPort Version | 1.2 |
External Connections | |
| USB 2.0 | 2 |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| Audio Out | Surround Sound (7.1) |
| Audio In | Line-In/Microphone |
| S/PDIF | Optical |
| LAN (RJ45) | 2 |
Internal Connections | |
| USB 2.0 | 1 (providing 2 ports) |
| USB 3.2 Gen 1 (USB 3.0) | 2 |
| SATA III 6.0Gbps | 8 |
| M.2 Connector | 1 |
| M.2 Support | SATA 6Gb/s & PCI-E Gen3 x4 link, NGFF 22110/2280/2260/2242 |
| TPM (module sold separately) | 1 |
| Compatible TPM | 14-1 |
SATA Controllers | |
| SATA III 6.0Gbps Controller 1 | 8 port - Intel C236 |
Expansion Slots | |
| Slot 1 | PCI Express 3.0 x1 |
| Slot 2 | PCI Express 3.0 x16 |
| Slot 4 | PCI Express 3.0 x8 |
Additional Information | |
| SLI Compatible | No |
| Crossfire Compatible | No |
| RAID Support | 0,1,5,10 |
| Bluetooth | No |
BIOS Features | |
| UEFI BIOS | Yes |
| EZ Flash | Yes |
| OC Profiles | No |
Dimensions | |
| Height | 244 mm (9.6 in) |
| Width | 244 mm (9.6 in) |
- If M.2 slots are used in SATA mode, this will disable two SATA ports.
