Supermicro X10QBL-4CT

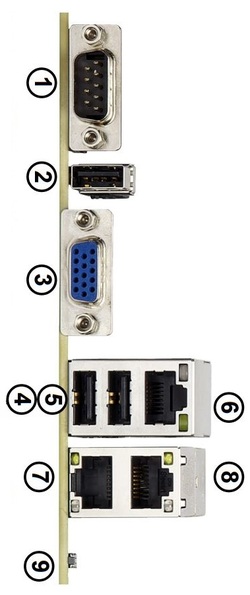

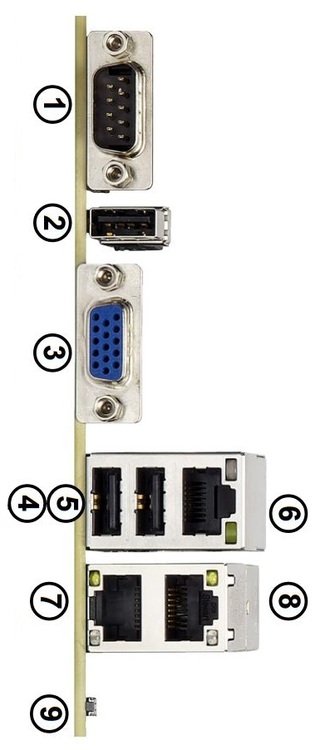

[ Rear Ports ][ Schematic ]

Supermicro X10QBL-4CT Picture 38507Supermicro X10QBL-4CT Picture 38506Supermicro X10QBL-4CT Picture 38505

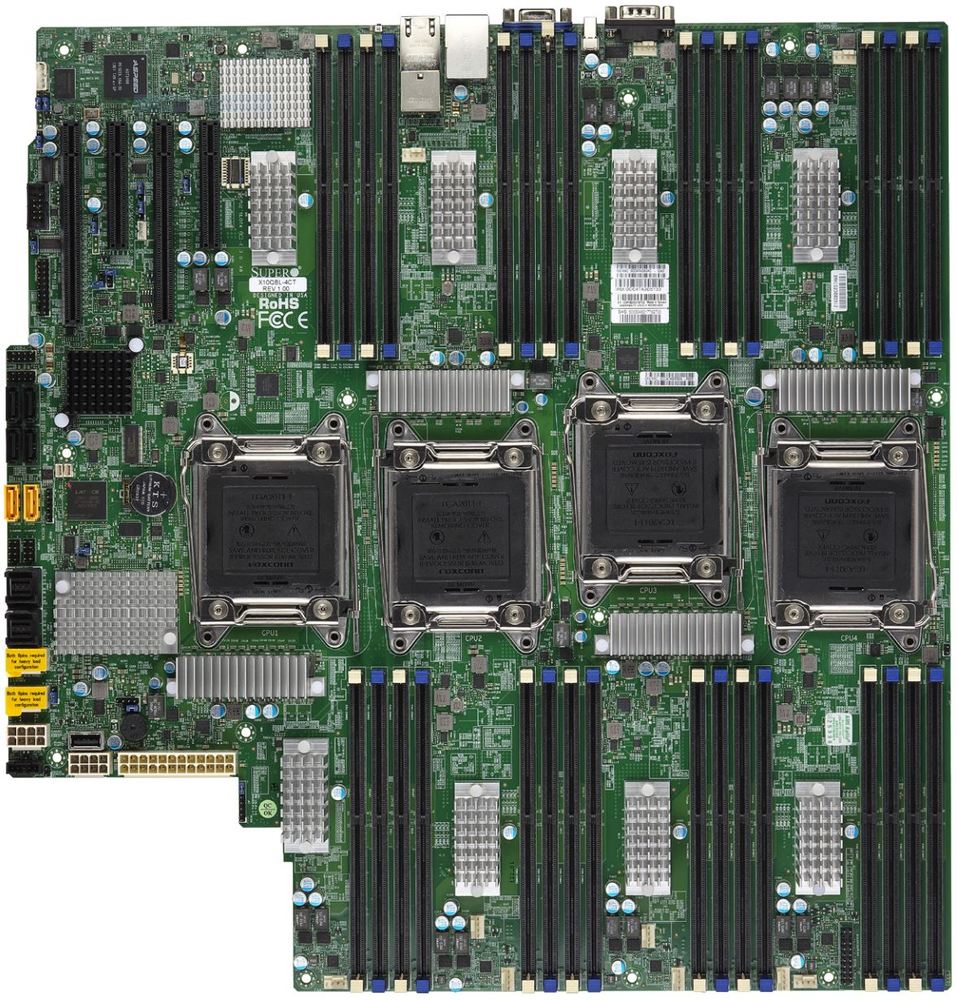

The Supermicro X10QBL-4CT motherboard can support up to four of Intel's Xeon E7 v4/v3 series processors - from either the 4XXX or 8XXX series. That for up to 96 total cores, or 192 threads, in a single computer! It is mainly geared toward servers, which shows in it's limited rear-panel port configuration: integrated VGA graphics with a few USB 2.0, serial, and a pair of 10Gb Ethernet ports - as well as the inclusion of an IPMI module for remote management. Due to its massive size, which is necessary to accommodate four CPU sockets, the selections of cases capable of fitting it is also very limited. Here at Puget Systems, though, we had adapted this board to work in a tower chassis with relatively quiet cooling - which makes it excellent for us as a scientific computing workstation.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
It is worth noting that Windows operating systems are often limited to a specific number of physical processors that they can use. Windows 10 is limited to one (Home) or two (Pro) CPUs - so if you want to use this motherboard then none of the normal versions of Windows will suffice. Instead you need a Windows Server edition or Linux.
Model: Supermicro X10QBL-4CT

Socket  Quad 2011
CPU Compatibility  Intel Xeon processor E7-8800 v4/v3 / E7-4800 v4/v3 family (18-Core), w/ QPI up to 9.6 GT/s
Form Factor  Other
Chipset Manufacturer  Intel
Chipset  Intel C602J
Front Side Bus  QuickPath Interconnect
Network Connectivity  Dual 10G Networking
Network Controller  Intel i350 Dual port GbE LAN
Cooling System  Heatsink
Color  Green
Memory Support
Type  DDR4 ECC Registered
Maximum Speed  1600 MHz
Number of Slots  32
Maximum Size per Slot  64 GB
Maximum Amount Supported  2048 GB
Onboard Video
Processor Type  ASPEED 2400
VGA  1
External Connections
USB 2.0  3
LAN (RJ45)  2
Mgmt LAN (RJ45)  1
Serial (COM) Port  1
Internal Connections
USB 2.0  1 (providing 2 ports)
SATA II 3.0Gbps  4
SATA III 6.0Gbps  2
SAS  8
Serial (Com)  1
SATA Controllers
SATA II 3.0Gbps Controller 1  4 port - Intel C602J
SATA III 6.0Gbps Controller 1  2 port - Intel C602J
Expansion Slots
Slot 1  PCI Express 3.0 x8
Slot 2  PCI Express 3.0 x16
Slot 3  PCI Express 3.0 x8
Slot 4  PCI Express 3.0 x16
Additional Information
RAID Support  0,1,5,10 (SATA); 0,1,10 (SAS)
BIOS Features
EZ Flash  No
OC Profiles  No
Height  417 mm (16.4 in)
Width  426 mm (16.8 in)

Includes a built-in TPM module


1 Year Parts, 3 Years Labor

  • Supermicro X10QBL-4CT Drivers
  • Supermicro X10QBL-4CT Manual
  • Supermicro X10QBL-4CT Firmware
  • Supermicro X10QBL-4CT BIOS

Configure a custom computer with the Supermicro X10QBL-4CT.
