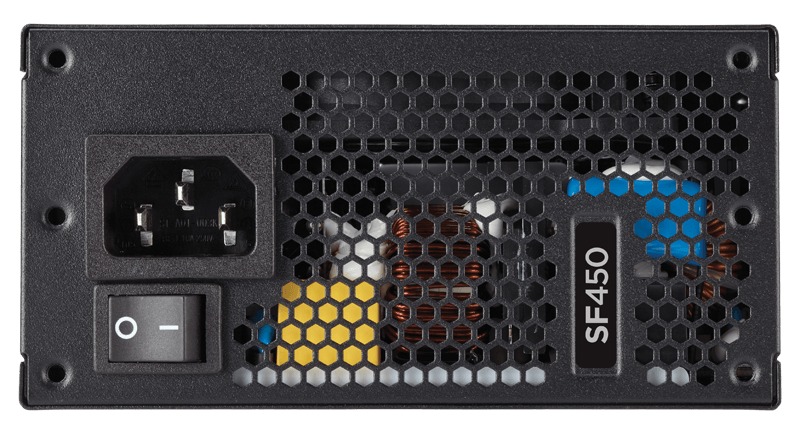

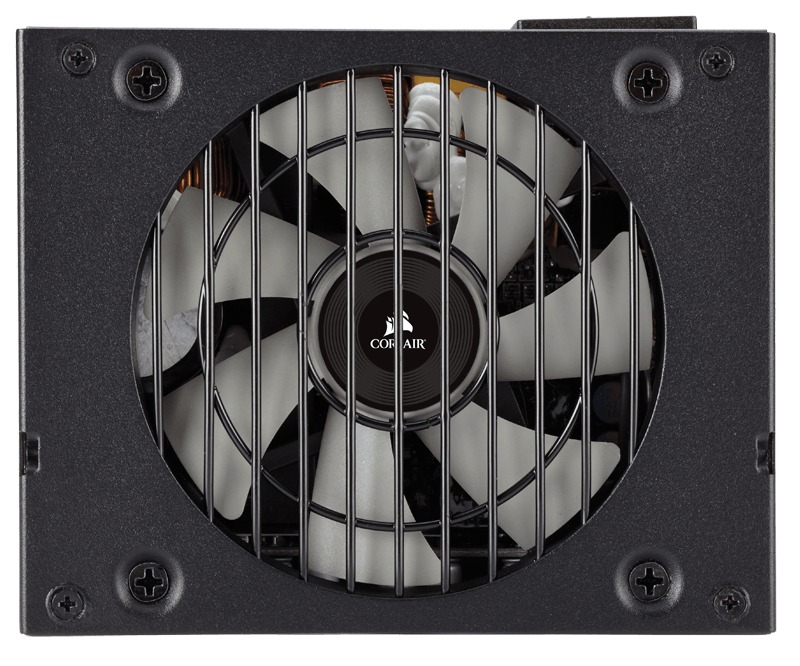

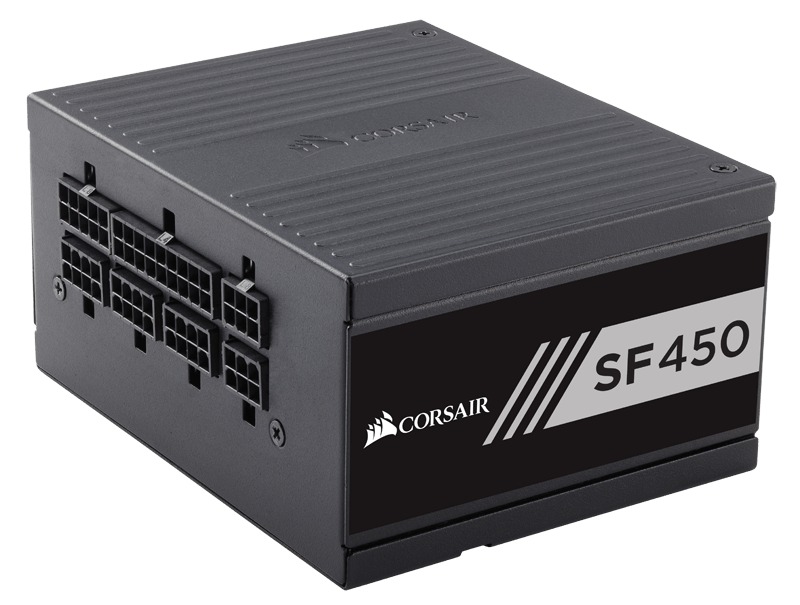

Corsair SF450 450W SFX Power Supply

Power Supply

Corsair SF450 450W SFX Power Supply Picture 39285Corsair SF450 450W SFX Power Supply Picture 39719Corsair SF450 450W SFX Power Supply Picture 39720
The Corsair SF450 is a small form factor (SFX) power supply, used in some ITX computer cases where full ATX power supplies would not fit. It is very efficient, with an 80 PLUS Gold rating, and has a quiet fan that turns off entirely at lower power levels. The 450W maximum load rating is somewhat limited, but should be plenty for ITX systems which can only fit one video card and a few drives.

Please note that due to the smaller size of this PSU, it cannot be used in larger cases which are designed for full ATX power supplies.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
This should be able to handle powering almost any single-GPU video card, but I would not recommend it for use with dual GPU cards. Of course, such cards would probably be too hot to put in a small chassis to begin with.
Model: Corsair CP-9020104-NA

Maximum Power  450 W
Efficiency Certification  80 PLUS Gold
Cooling System  92mm Fan
Power Distribution
+3.3V rail  15 amps
+5V rail  20 amps
+12V1 rail  37.5 amps
Combined +12V Maximum  37.5 amps
Molex  4
PCI Express 8-pin  2
CPU Power 8/4 pin  1
External Connector Type  C13
Height  100 mm (3.9 in)
Width  63 mm (2.5 in)
Depth  125 mm (4.9 in)
Net Weight  .86 kg (1.9 lbs)
Voltage  100-240 Vac
Frequency  47-63 Hz


7 Years
