EVGA SuperNOVA 1600W T2 Power Supply

Power Supply

EVGA SuperNOVA 1600W T2 Power Supply Picture 58628EVGA SuperNOVA 1600W T2 Power Supply Picture 58629EVGA SuperNOVA 1600W T2 Power Supply Picture 58630EVGA SuperNOVA 1600W T2 Power Supply Picture 58631

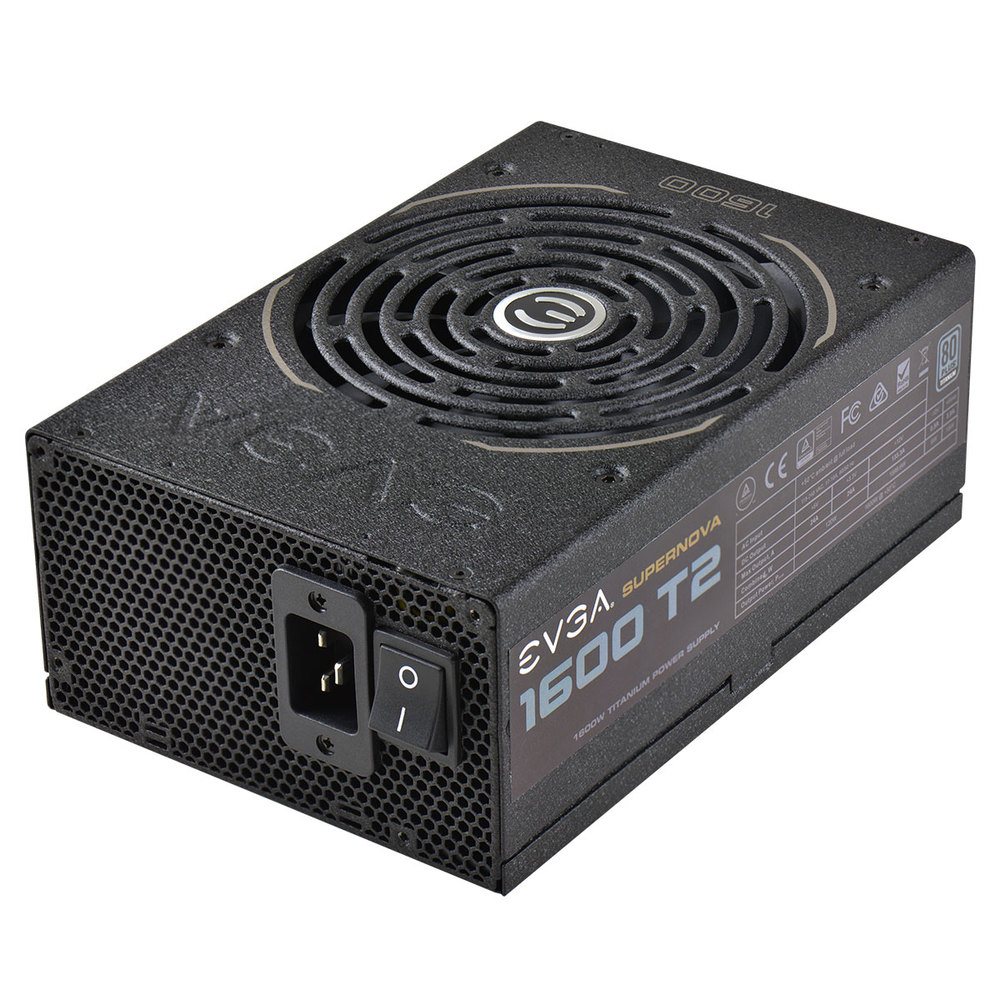

The EVGA SuperNOVA 1600W T2 is a high-quality, 80 PLUS Titanium-certified power supply unit - complete with entirely modular wiring for clean assembly and a 140mm fan for cooling. The fan is very quiet, ramping up or down in speed as needed to keep the unit cool and even turning off entirely at low power draw levels. In terms of physical size, this model is substantially longer than most other models - so it will not fit in a lot of cases.
William George (Product Development)
William George (Product Development) Says:
The cabling used by this power supply is the same as most other SuperNOVA models, making it relatively easy to replace a failed PSU or upgrade to a higher wattage later on if needed. Beware of the size of this unit, though: it is quite large! The one reason for such a high-wattage PSU is supporting 4 video cards and/or dual CPUs, though, either of which will necessitate a fairly large chassis to begin with.

Model: EVGA 220-T2-1600-X1

Specifications

Maximum Power 1600 W
Standard Compliance ATX
Peak Efficiency 94 %
Efficiency Certification 80 PLUS Titanium
Cooling System 140mm Fan
Noise Level 0 - 38 dB
Safety Compliance OVP, UVP, OPP, SCP, OCP, OTP
Industry Compliance TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement

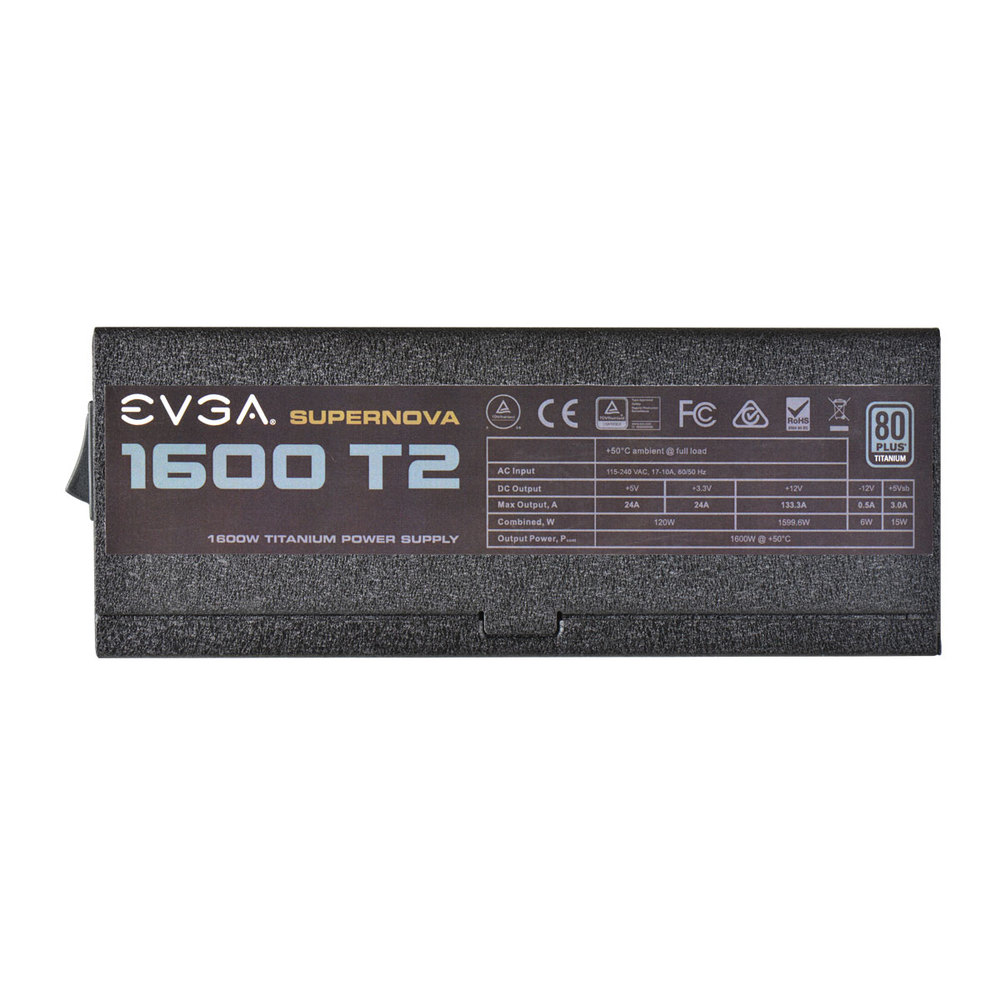

Power Distribution
+3.3V rail 24 amps
+5V rail 24 amps
+12V1 rail 133 amps

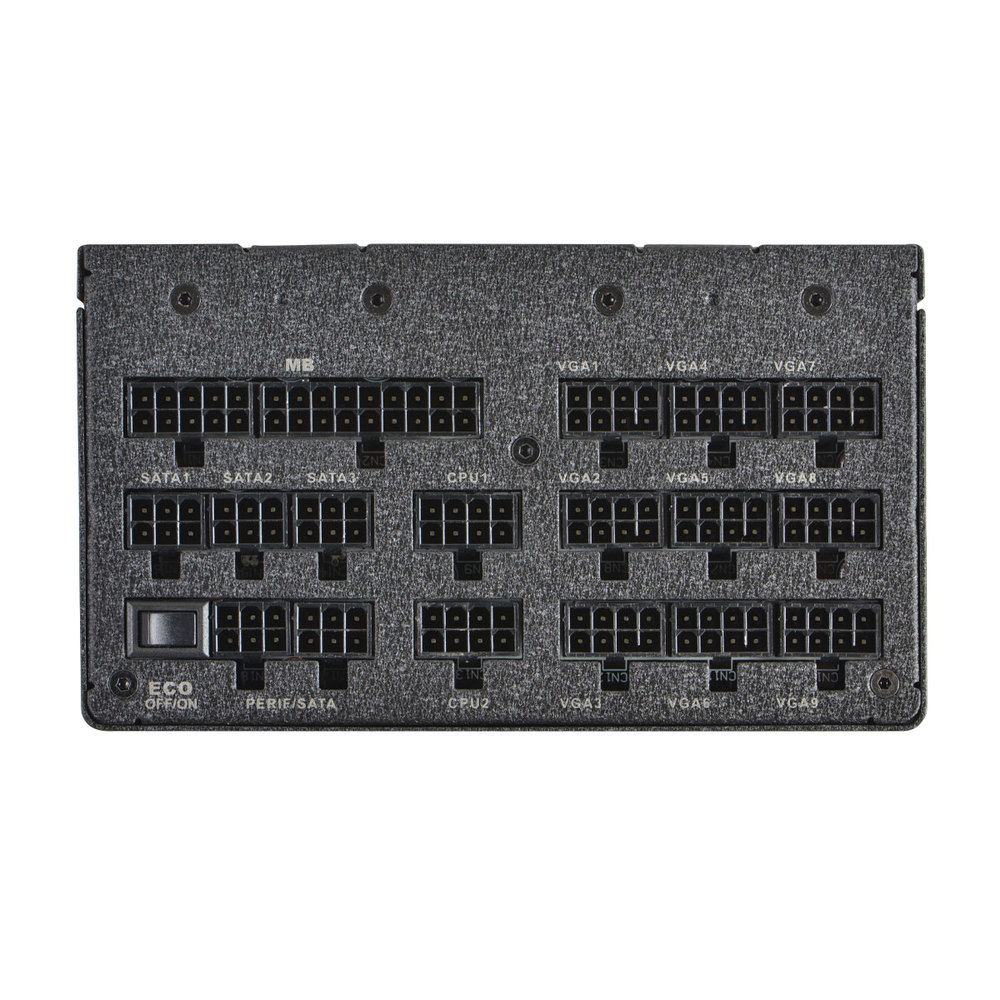

Connectors
Molex 5
SATA 14
Floppy 2
PCI Express 5
PCI Express 8-pin 9
CPU Power 8/4 pin 2

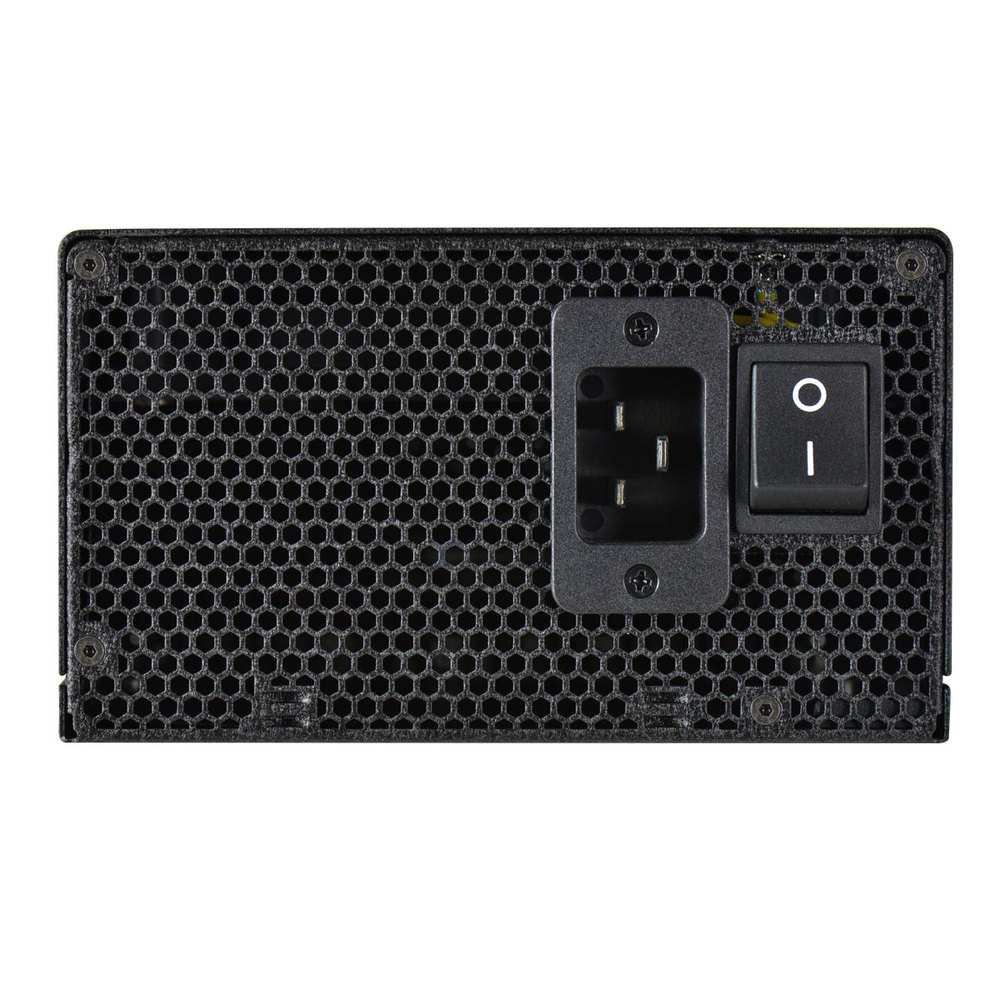

External Connector Type C19
Dimensions
Height 85 mm (3.3 in)
Width 150 mm (5.9 in)
Depth 220 mm (8.7 in)
Net Weight 5.90 kg (13.0 lbs)
Input
Voltage 115 - 240 Vac
Frequency 50 - 60 Hz
