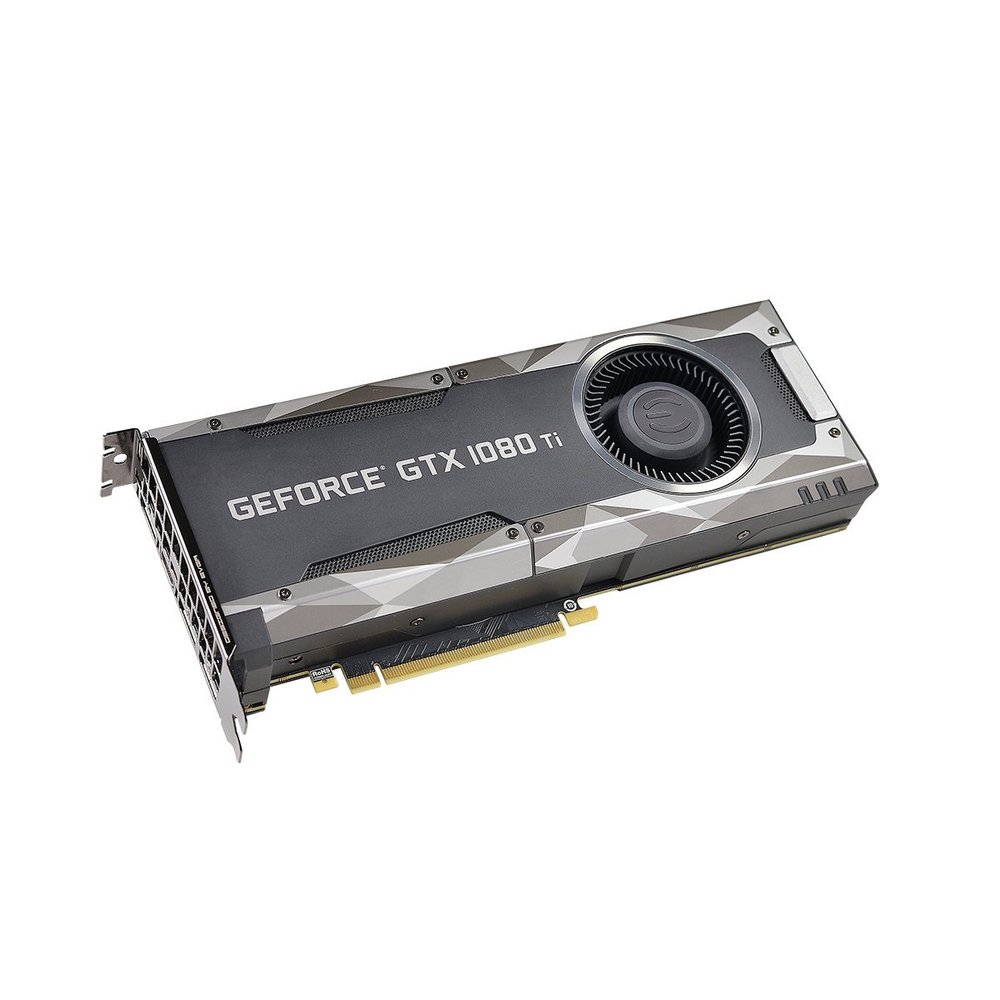

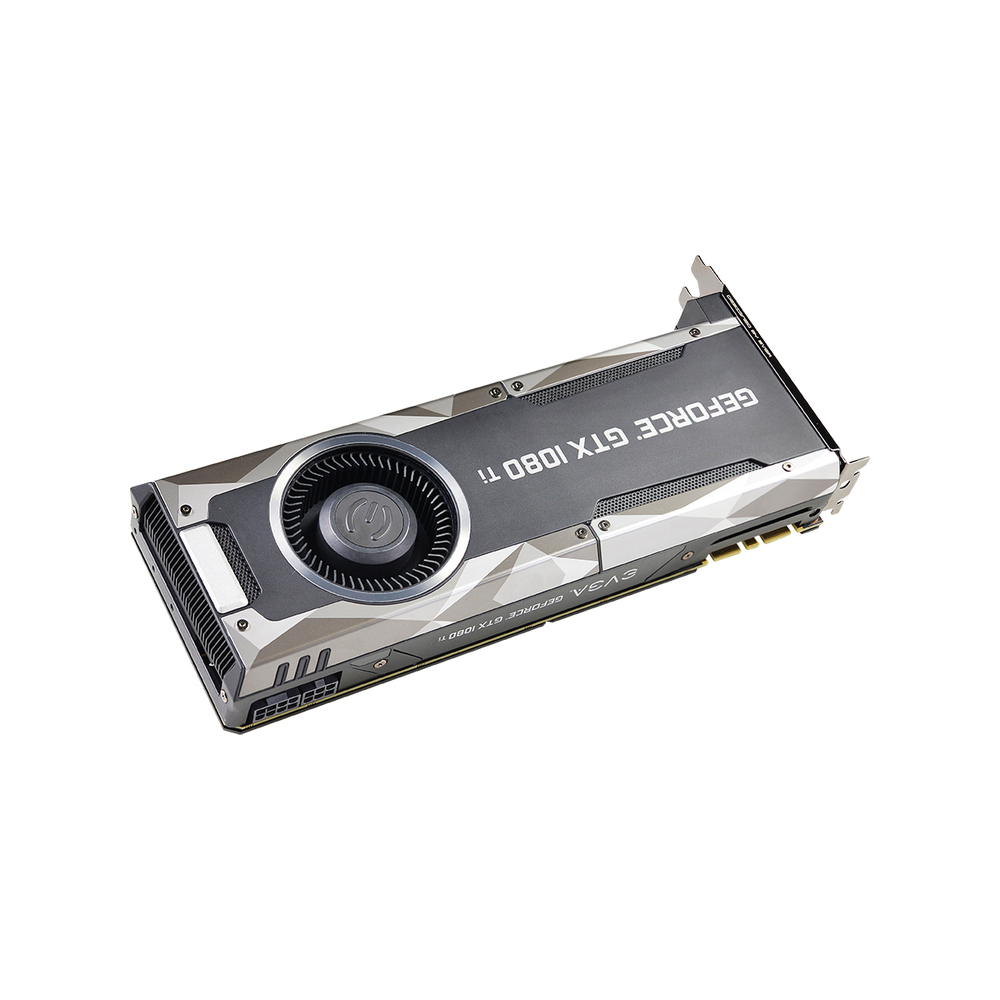

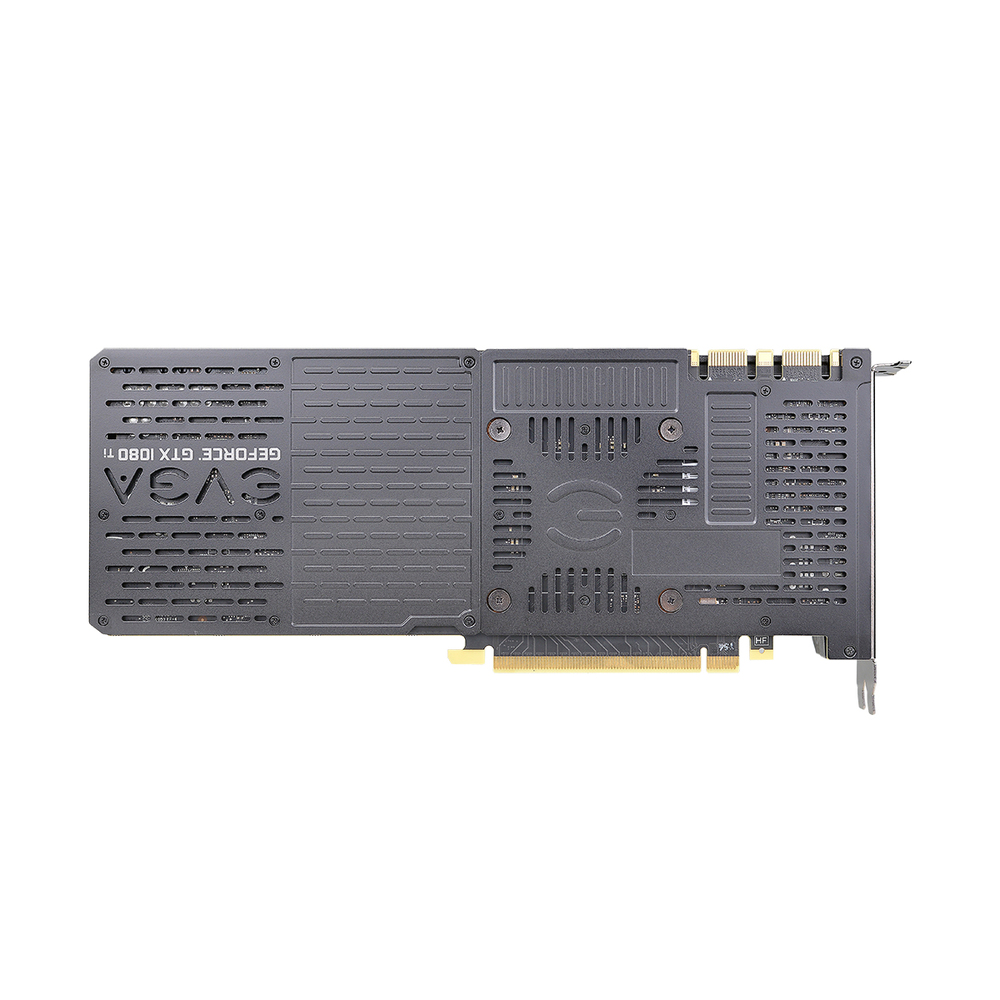

EVGA GeForce GTX 1080 TI 11GB GAMING

Video Card

[ Rear Ports ]

EVGA GeForce GTX 1080 TI 11GB GAMING Picture 42861EVGA GeForce GTX 1080 TI 11GB GAMING Picture 42944EVGA GeForce GTX 1080 TI 11GB GAMING Picture 42945EVGA GeForce GTX 1080 TI 11GB GAMING Picture 46176
NVIDIA's GeForce GTX 1080 Ti represents a refresh to their new Pascal graphics card line. It improves upon the original GTX 1080 with both more graphics processors (CUDA cores) and additional video RAM. Those combine to provide a substantial boost in performance, with the GTX 1080 Ti about 30% faster than the GTX 1080 - and even a hair faster than the Titan X, though without quite as much onboard memory as that model.

In addition to its great speed and efficiency, the GTX 1080 Ti shares the under-the-hood improvements that all Pascal cards have for boosting virtual reality and multi-monitor performance. It is excellent at maintaining good frame-rates in games and VR experiences, even in graphics-laden titles and at high resolutions, and includes support for CUDA, DX12, and NVIDIA's 3D Vision technology. Finally, it supports up to 4 usable display outputs: one HDMI 2.0 and three DisplayPorts. The older DVI connection has been removed, which allows more room for the card to vent hot air.

This single-fan variant is similar to the Founders Edition model, with the same fan but a different shroud around the heatsink. Noise and cooling performance should be comparable, and the front to back airflow makes it ideal for use in rackmounts and multi-GPU configurations.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
The GTX 1080 Ti is the fastest video card for gaming, as of its launch in March 2017, and it should excel in other GPU accelerated applications as well. It is probably overkill for gaming at anything below 4K 60Hz or 1440P 120Hz, but if you want the best then this is it (until the next generation of GeForce cards come out, at least). It should also do very well in scientific computing with single precision (FP32) calculations.
Model: EVGA 11G-P4-5390-KR

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Core Speed  1480 MHz
Boost Speed  1582 Mhz
Stream Processors  3584
Memory Specifications
Video Memory  11GB
Memory Type  GDDR5X
Memory Speed  11000 MHz
Memory Bus Width  352-bit
Bandwidth  484 GB/s
Additional Information
Cooling System  Loud Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.1
OpenGL Support  4.5
Removable Backplate  Yes
Slot Width  2
Outputs
Port 1  HDMI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Power Connectors
Plug 1  6-pin PCI-E
Plug 2  8-pin PCI-E
Dimensions
Length  266.7 mm (10.5 in)
Height  111.2 mm (4.4 in)
Width  38.1 mm (1.5 in)

Warranty:

3 Years




Configure a custom computer with the EVGA GeForce GTX 1080 TI 11GB GAMING.
