EVGA GeForce RTX 2080 SUPER GAMING 8GB Blower Fan

Video Card

[ Rear Ports ]

EVGA GeForce RTX 2080 SUPER GAMING 8GB Blower Fan Picture 56504EVGA GeForce RTX 2080 SUPER GAMING 8GB Blower Fan Picture 56505EVGA GeForce RTX 2080 SUPER GAMING 8GB Blower Fan Picture 56506EVGA GeForce RTX 2080 SUPER GAMING 8GB Blower Fan Picture 56507EVGA GeForce RTX 2080 SUPER GAMING 8GB Blower Fan Picture 56503
NVIDIA's GeForce RTX 2080 SUPER is part of the second wave of graphics cards based on the Turing GPU architecture. This mid-generation release increases performance about 5-10% over the vanilla RTX 2080 while maintaining the same price point. Like all RTX cards, this model includes dedicated RT cores for ray tracing and Tensor cores for machine learning inference. This specialized hardware enables new functionality in games and GPU-accelerated applications, but will require such programs to be written specifically to utilize them in order to see much benefit.

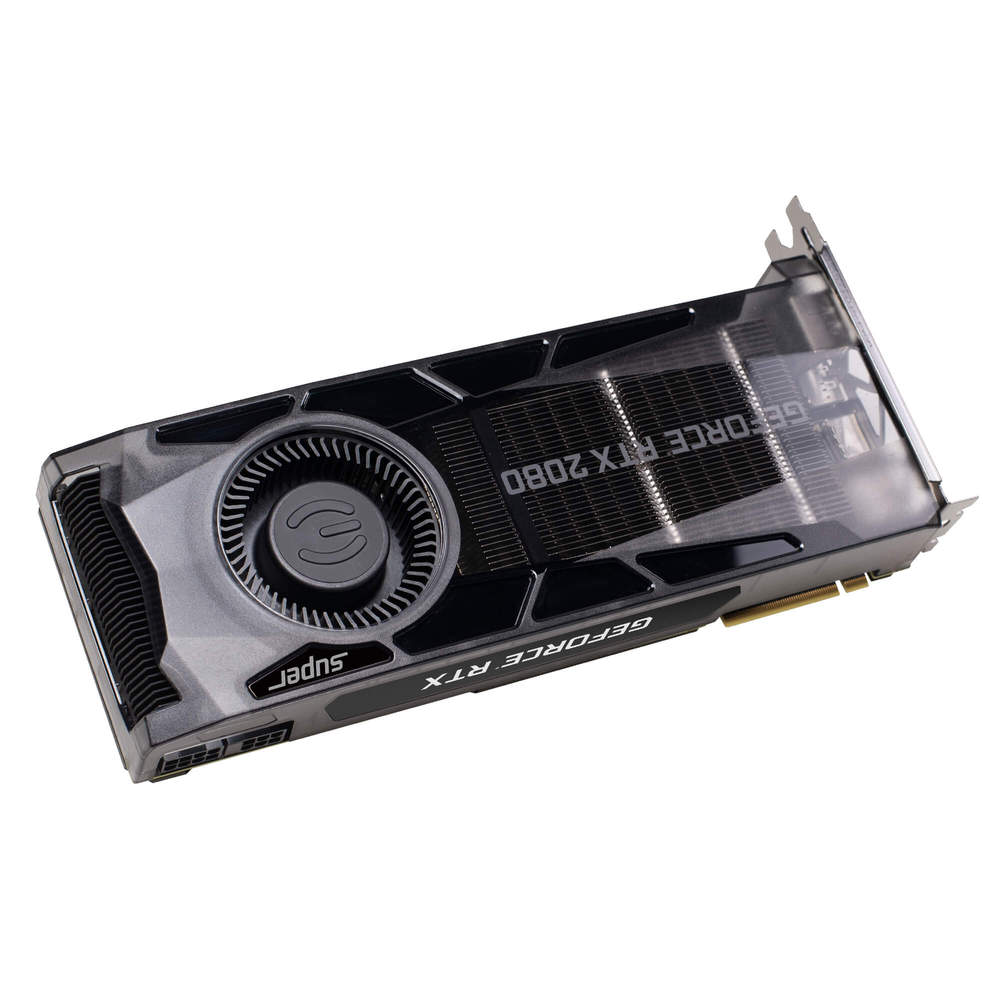

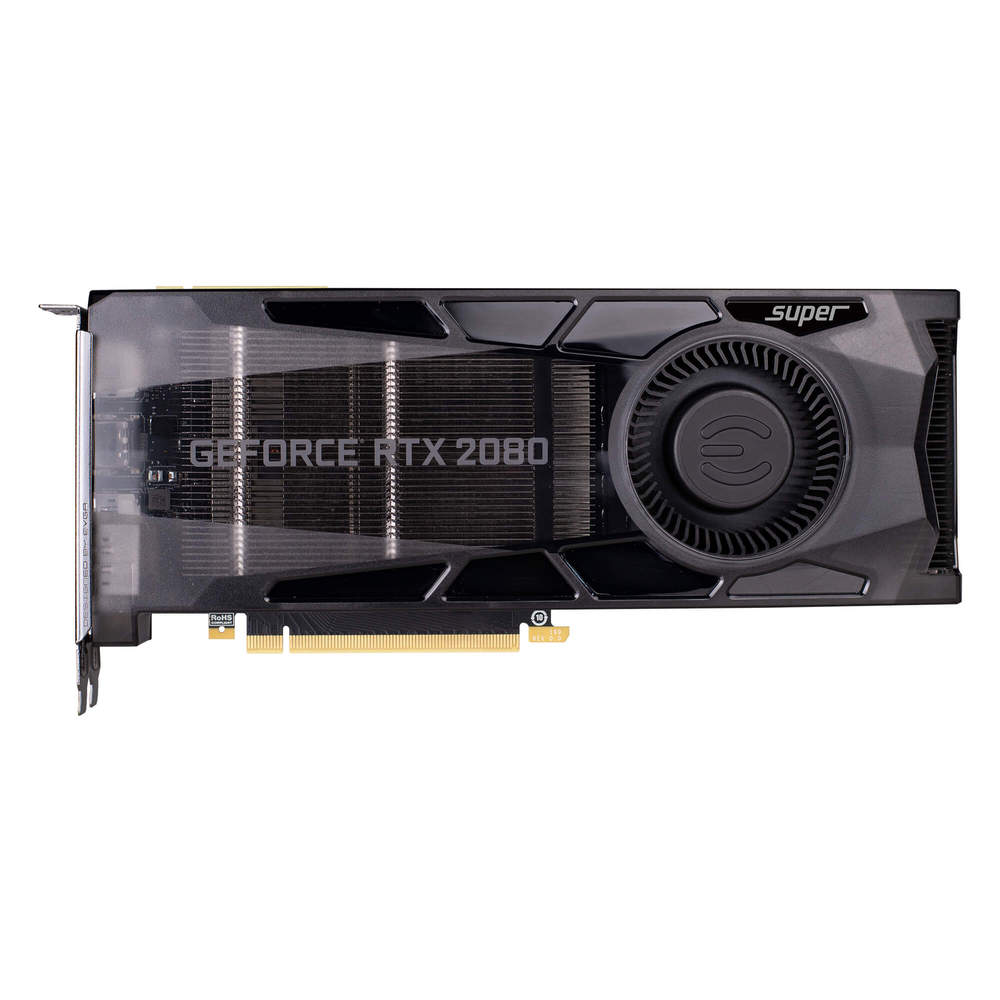

This particular variant, from EVGA, has a single-fan "blower" style cooler. This won't be as quiet under load as a dual-fan design, when comparing individual cards, but since it exhausts most of the card's heat out the back of the computer it is much better for use in multi-GPU configurations.

Finally, in regards to connectivity, the RTX 2080 SUPER has dropped DVI output entirely. There are outputs for three monitors: one HDMI 2.0b and two DisplayPort 1.4. VirtualLink - a specialized Type C port combining DisplayPort, USB 3.1, and power - is also included, for single-cable connectivity to next-generation VR headsets.
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
This mid-generation update from NVIDIA is a little weird, but I guess it is hard to complain about a free performance increase :)
Model: EVGA 08G-P4-3080-KR

Specifications:
spacer
Chipset Manufacturer  NVIDIA
Product Line  GeForce
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  7680x4320
Maximum HDMI Resolution  4096x2160
Maximum DisplayPort Resolution  7680x4320
Maximum Monitors Supported  4
HDCP Compliant  Yes
Multi-GPU Technology  NVLink (GeForce RTX)
GPU Specifications
Core Speed  1650 MHz
Boost Speed  1815 Mhz
Stream Processors  3072
Memory Specifications
Video Memory  8GB
Memory Type  GDDR6
Memory Speed  15,500 MHz
Memory Bus Width  256-bit
Bandwidth  496 GB/s
Additional Information
Cooling System  Loud Fan and Heatsink
DirectX Support  DirectX 12
CUDA Support  6.5
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2
Outputs
Port 1  USB Type-C
Port 2  DisplayPort
Port 3  HDMI
Port 4  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Plug 2  6-pin PCI-E
Dimensions
Length  270 mm (10.6 in)
Height  112 mm (4.4 in)
Width  42 mm (1.7 in)


Configure a gaming PC with the EVGA GeForce RTX 2080 SUPER GAMING 8GB Blower Fan.
