PNY Quadro NVS 810 PCI-E 4GB (with DVI adapters)

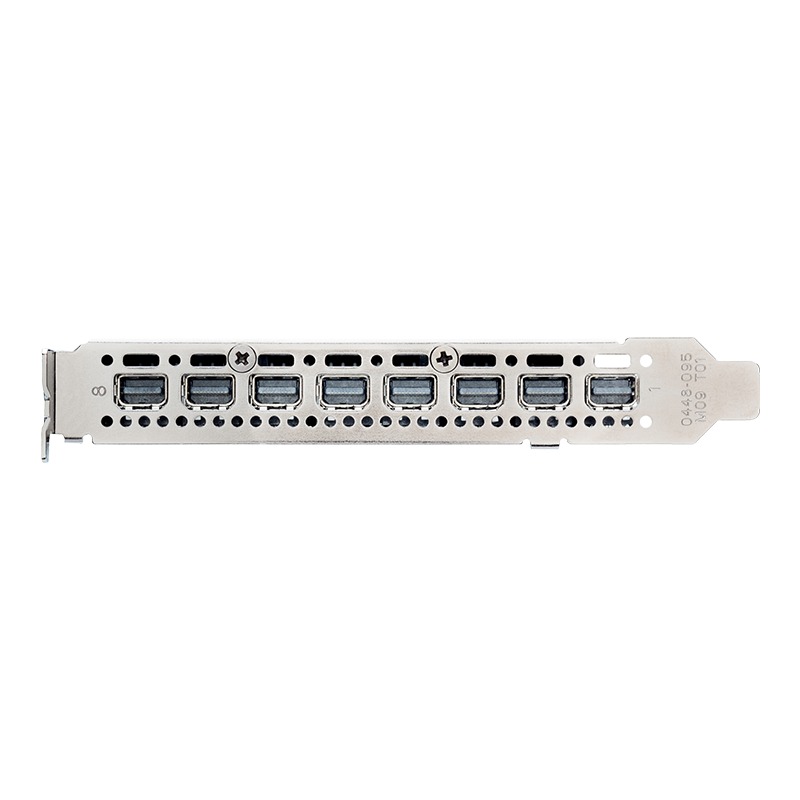

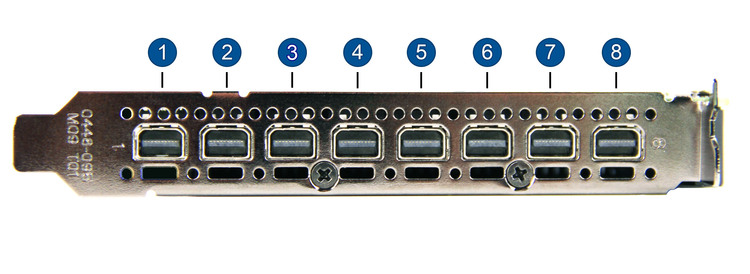

[ Rear Ports ]
This card has eight Mini DisplayPort connections, and includes adapters to DVI as well. Please note that if you are using those DVI adapters you will be limited to a lower maximum resolution (1920x1200).
If you want to run 4K monitors, please note that this card can support eight of them at 30Hz or only four of them if you want 60Hz refresh rate. Depending on what inputs your monitors have, you might also need adapters from Mini DisplayPort to full size DisplayPort. This card comes with adapters to DVI, but we can get a version of this card that is bundled with DisplayPort adapters instead if you prefer.
|Motherboard Connection||PCI Express 3.0 x16|
|Maximum DVI Resolution||1920x1200|
|Maximum DisplayPort Resolution||4096x2160|
|Maximum Monitors Supported||8|
|Memory Bus Width||128-bit|
|Cooling System||Small Fan and Heatsink|
|DirectX Support||DirectX 11|
|Port 1||Mini DisplayPort|
|Port 2||Mini DisplayPort|
|Port 3||Mini DisplayPort|
|Port 4||Mini DisplayPort|
|Port 5||Mini DisplayPort|
|Port 6||Mini DisplayPort|
|Port 7||Mini DisplayPort|
|Port 8||Mini DisplayPort|
|Length||198.1 mm (7.8 in)|
|Height||111.8 mm (4.4 in)|

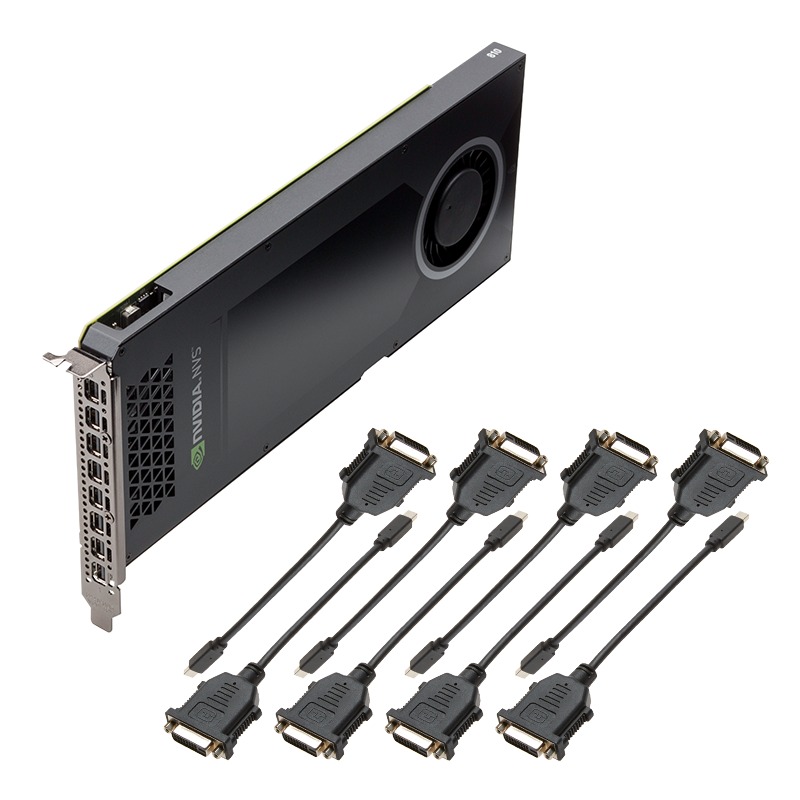

-Includes eight mini-DisplayPort to DVI-D SL adapters
-Supports a maximum of 8 displays at 4,096 x 2,160 at 30Hz or 4 displays at 4,096 x 2,160 at 60Hz
-CUDA cores is 512 per GPU (1024 total)
-VRAM is 2GB per GPU (4GB total)
-Memory interface is 64-bit per GPU (128-bit total)
The NVIDIA NVS 810 graphics board delivers exceptional display connectivity, cost-effective scalability, and image management capabilities that make it easy to drive any kind of multi-display digital signage setup. It's the first of its kind to offer eight display outputs, combined with the world's most advanced GPU architecture-all in a single-slot form factor. NVS 810 is also ideal for creating dense signage solutions, delivering the uncompromised performance and reliability required to deploy demanding content in mission-critical signage installations.
Eight mini-DisplayPort 1.2 connectors on the NVIDIA NVS 810 are capable of driving UHD 4K displays at 60 Hz. Plus, it provides advanced features like multi-streaming and stream cloning that enable extremely efficient cable management and display flexibility in complex installations. Key NVIDIA features like bezel correction, synchronization across 8 displays, Warp & Blend, and Mosaic make digital signage easy. This configuration of the NVS 810 includes eight locking mini-DisplayPort to DVI-D SL adapters for installations requiring DVI displays.
- PNY Quadro NVS 810 PCI-E 4GB (with DVI adapters) Drivers
- Nvidia Quadro
Version 385.69 Released 09/21/17
Version 377.48 Released 06/14/17
For Win7_64, Win8_64, Svr2012_64
- Nvidia Quadro
Configure a affordable custom PC with the PNY Quadro NVS 810 PCI-E 4GB (with DVI adapters).
