PNY Quadro P6000 PCI-E 24GB

Video Card

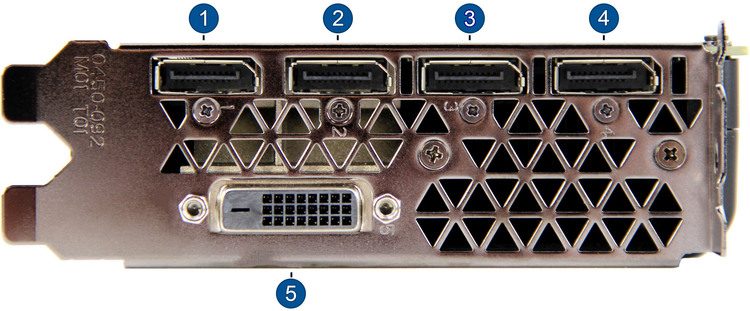

[ Rear Ports ]

PNY Quadro P6000 PCI-E 24GB Picture 40910PNY Quadro P6000 PCI-E 24GB Picture 40911PNY Quadro P6000 PCI-E 24GB Picture 40912PNY Quadro P6000 PCI-E 24GB Picture 40913PNY Quadro P6000 PCI-E 24GB Picture 40914PNY Quadro P6000 PCI-E 24GB Picture 53073

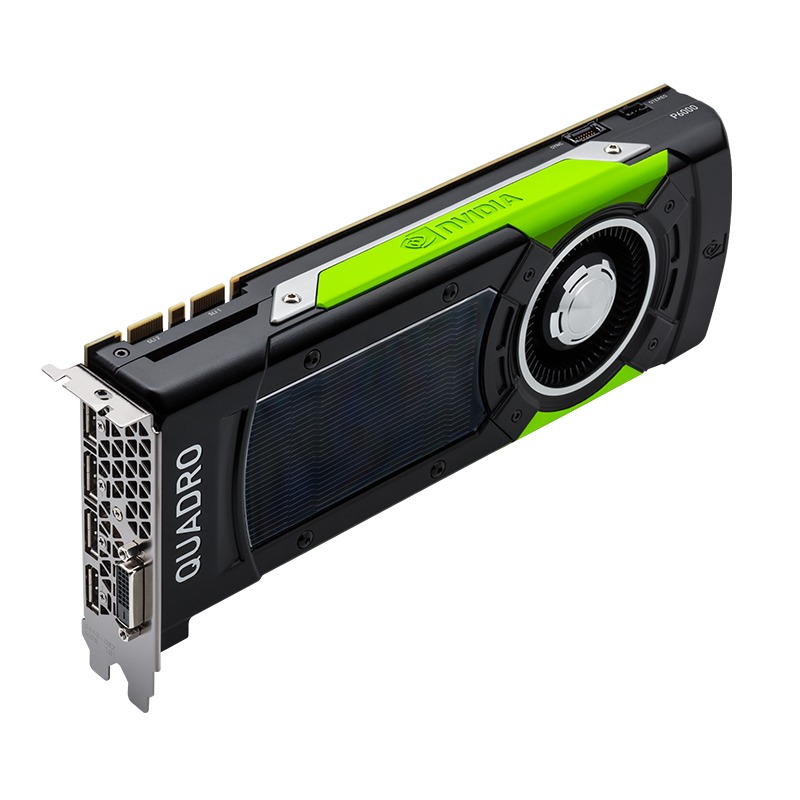

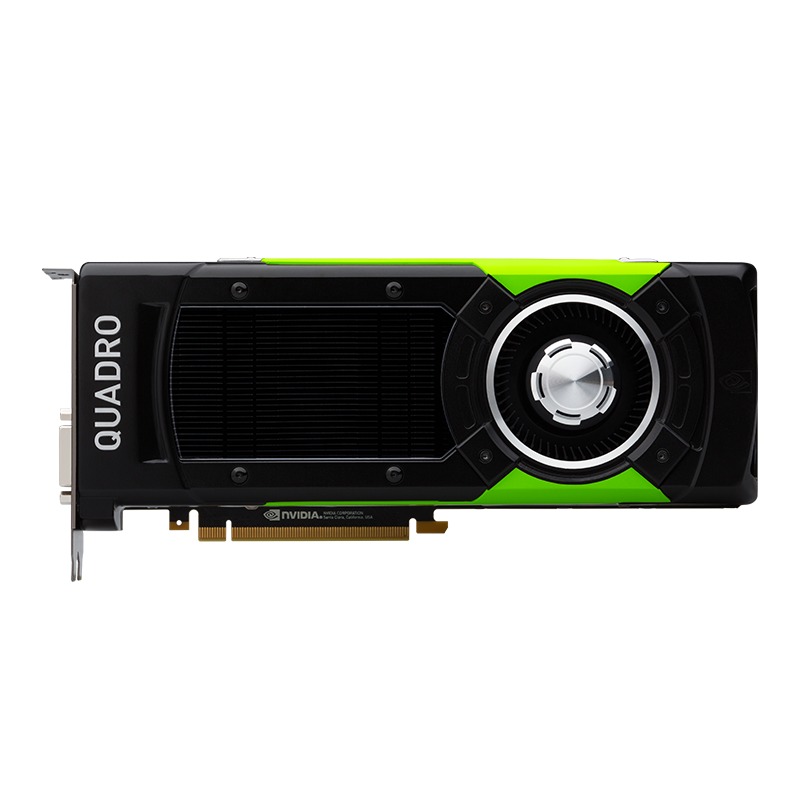

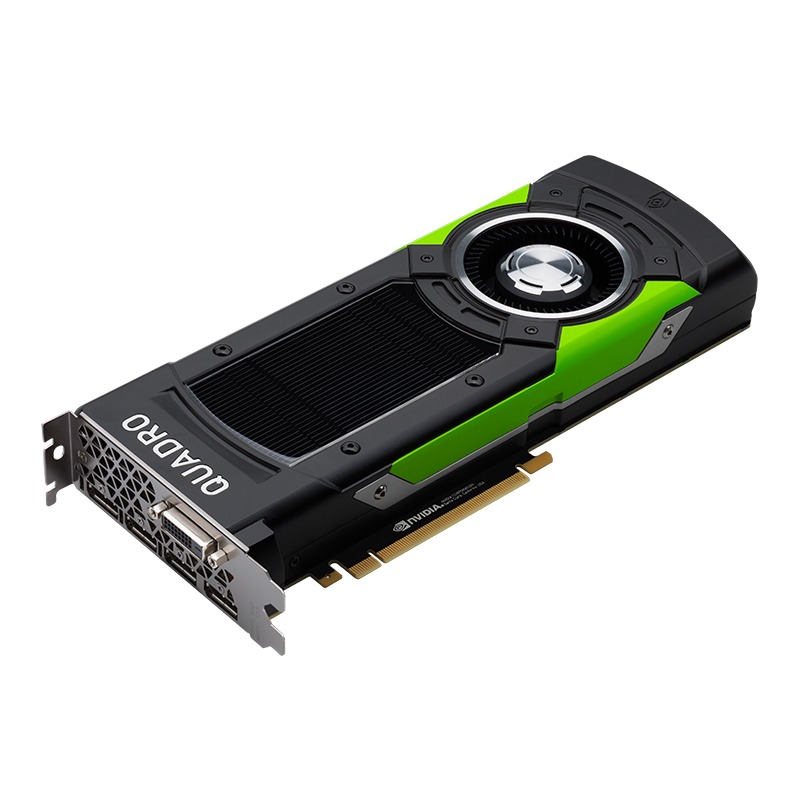

The NVIDIA Quadro P6000 is the highest-end Pascal-based Quadro card, offering the best NVIDIA single card performance available in this generation. Because of the Pascal architecture it is more efficient than previous Quadro cards of this caliber. General graphics performance and single-precision floating point performance are higher than any Quadro card that came before it, though unlike some older Quadro cards its double-precision floating point performance is limited. It has 3840 stream processors, a 384-bit memory bus, and 24GB of memory with error correction for improved reliability.

In addition to extreme performance for professional 3D applications, the Quadro P6000 also supports up to four monitors at the same time. In terms of connectivity it has one dual-link DVI port and four DisplayPort outputs. A wide range of standards are supported by this card: DirectX 12, OpenGL 4.5, CUDA, and OpenCL (to name a few).
William George (Product Development)
William George (Product Development) Says:
This is very similar to the NVIDIA Titan X (Pascal version), including its handicap in double-precision floating point performance, but with slightly more CUDA cores, twice the memory, and ECC protection. That means it is a very powerful GPU, and as part of the Quadro line it may have more specialized drivers and better support for certain high-end applications. For many users seeking high performance, though, the Titan X will offer similar capabilities for a lower price.
Model: PNY VCQP6000-PB

Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum DVI Resolution  2560x1600
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Stream Processors  3840
Memory Specifications
Video Memory  24GB
Memory Type  GDDR5X
Memory Bus Width  384-bit
Bandwidth  432 GB/s
Single Precision Floating Point (Peak)  12 Tflops
Additional Information
Cooling System  Blower Type
DirectX Support  DirectX 12
CUDA Support  6.1
OpenGL Support  4.5
Removable Backplate  No
Slot Width  2

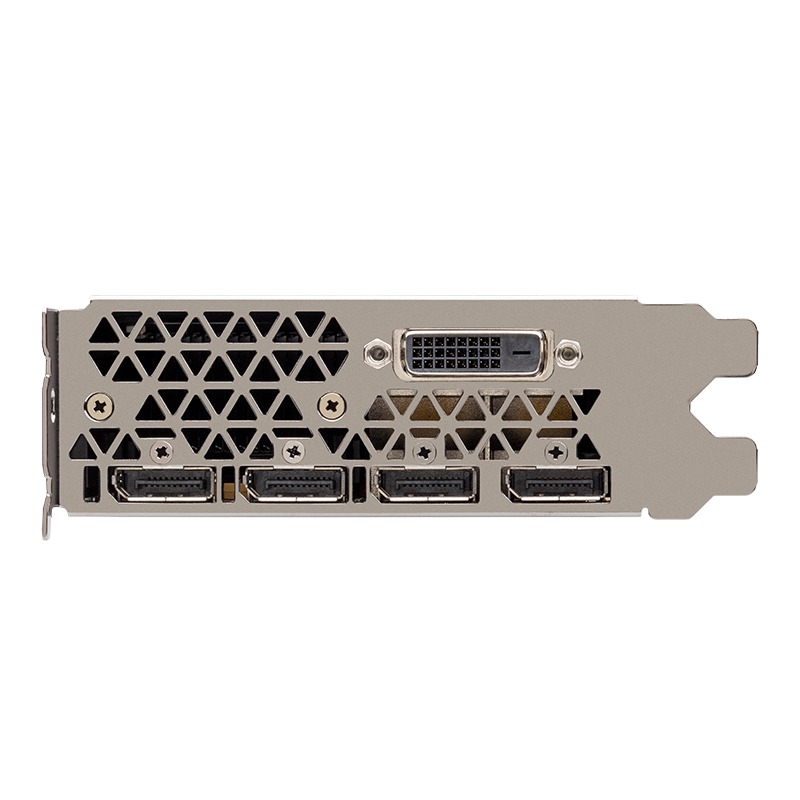

Port 1  Dual-Link DVI
Port 2  DisplayPort
Port 3  DisplayPort
Port 4  DisplayPort
Port 5  DisplayPort
Power Connectors
Plug 1  8-pin PCI-E
Length  266.7 mm (10.5 in)
Height  111.76 mm (4.4 in)

The NVIDIA Quadro P6000 is the world's most advanced professional graphics solution ever created, combining the latest GPU, memory and display technologies that result in unprecedented performance and breakthrough capabilities. Professionals across a range of industries can now create their most complex designs, solve the most challenging visualization problems and experience their creations within the most detailed, lifelike VR environments.

Designs are becoming more complex all the time. Media is becoming richer, combining greater resolutions and complex visual effects. Scientific visualization and compute problems are larger than ever. VR is changing entertainment, design, engineering, architecture, and medicine. And you need to validate designs, rehearse procedures, and visualize problems-interacting with them naturally and at scale.

Includes 3x DisplayPort to DVI-D SL adapters and a Stereo connector bracket


3 Years
