Fractal Design Define XL R2 Titanium Grey

Case

[ Front Panel ]

Fractal Design Define XL R2 Titanium Grey Picture 23517Fractal Design Define XL R2 Titanium Grey Picture 22428Fractal Design Define XL R2 Titanium Grey Picture 22429Fractal Design Define XL R2 Titanium Grey Picture 22430Fractal Design Define XL R2 Titanium Grey Picture 22431Fractal Design Define XL R2 Titanium Grey Picture 22432Fractal Design Define XL R2 Titanium Grey Picture 22433Fractal Design Define XL R2 Titanium Grey Picture 22434Fractal Design Define XL R2 Titanium Grey Picture 22435Fractal Design Define XL R2 Titanium Grey Picture 22436Fractal Design Define XL R2 Titanium Grey Picture 22437Fractal Design Define XL R2 Titanium Grey Picture 23040Fractal Design Define XL R2 Titanium Grey Picture 37184
View the Puget Systems article featuring this item.

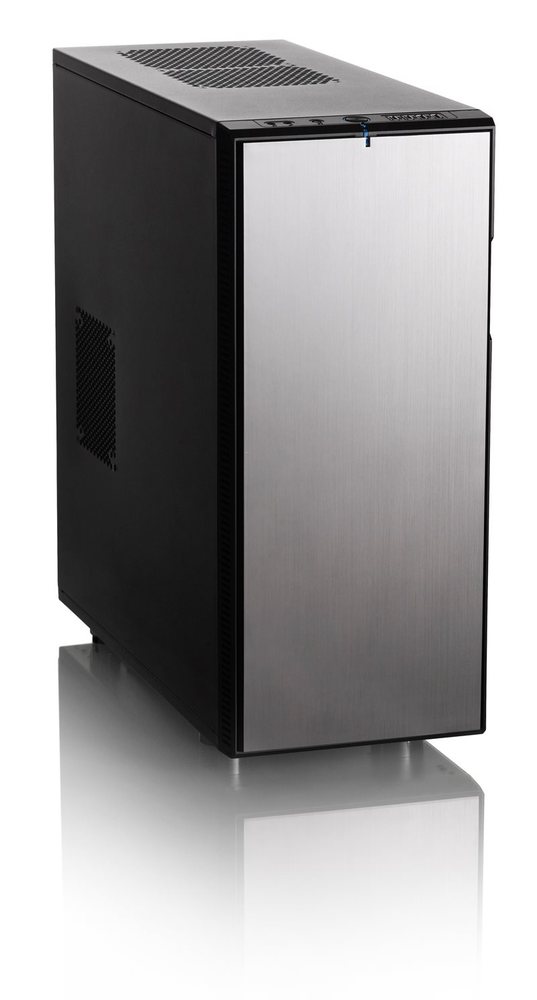

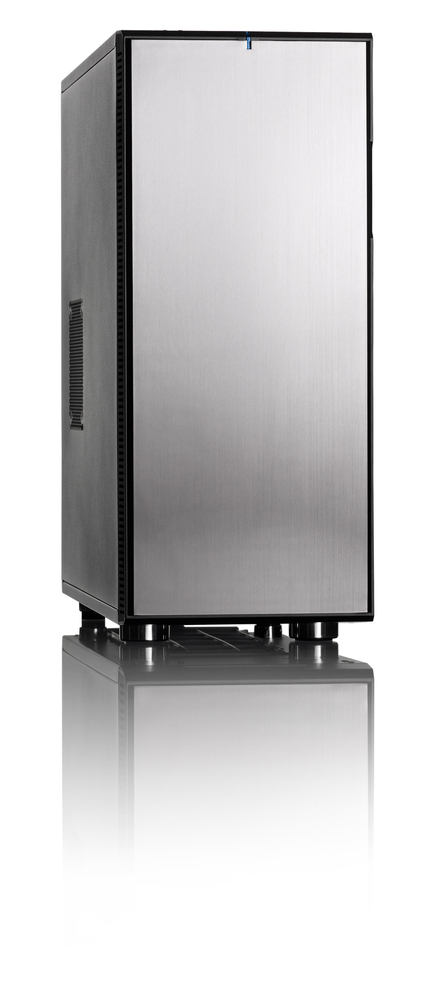

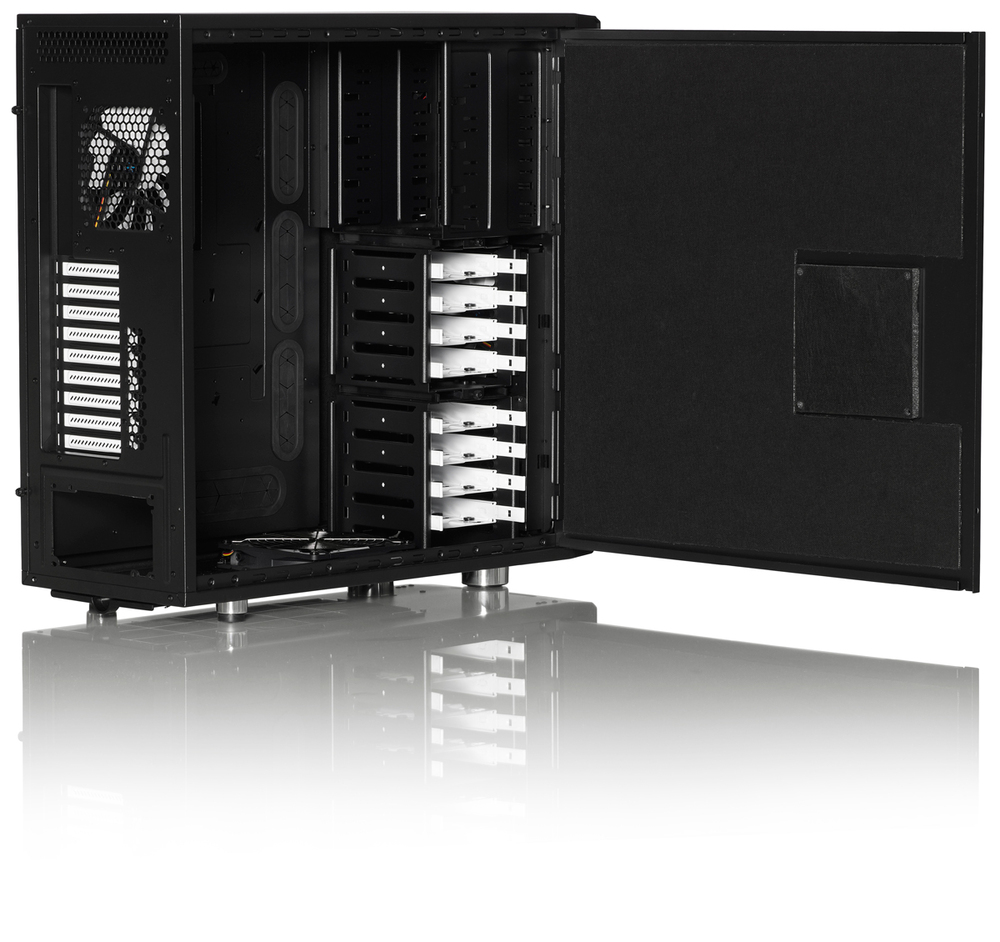

Fractal Design's Define XL R2 is a larger version of the popular Define chassis series. It is a very flexible design, built for an EATX motherboard, with plenty of space for dual CPU configurations and a host of other components. It can mount eight hard drives and four optical drives or other 5.25-inch bay devices.

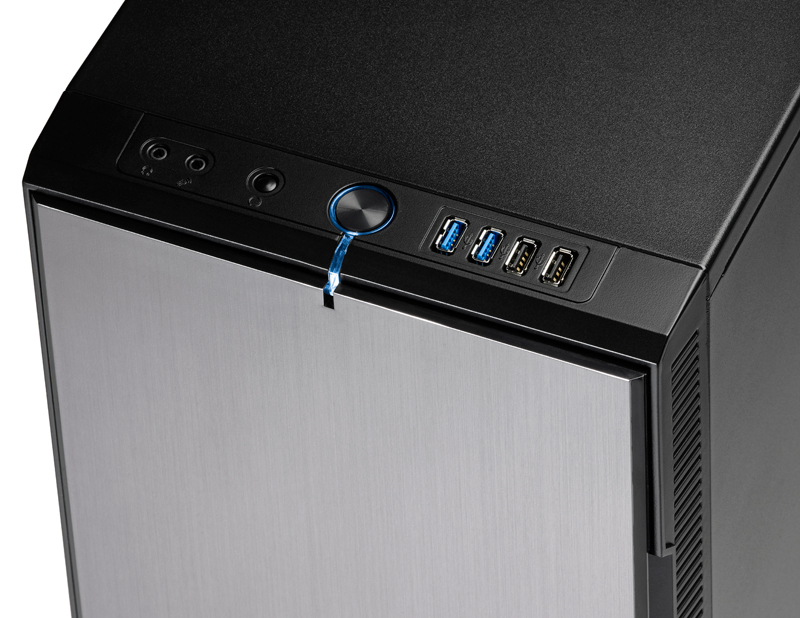

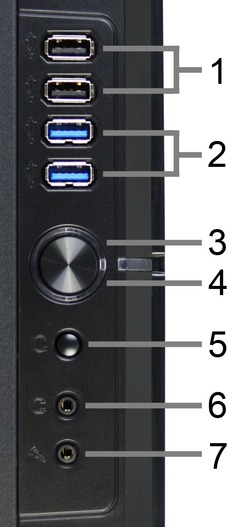

The Define XL R2 comes with three fans, but can fit up to four more depending on the cooling needs of the hardware. The front connections are located at the top of the case, directly above the front door, and include two each of USB 2.0 and USB 3.0 ports alongside headphone and mic plugs.

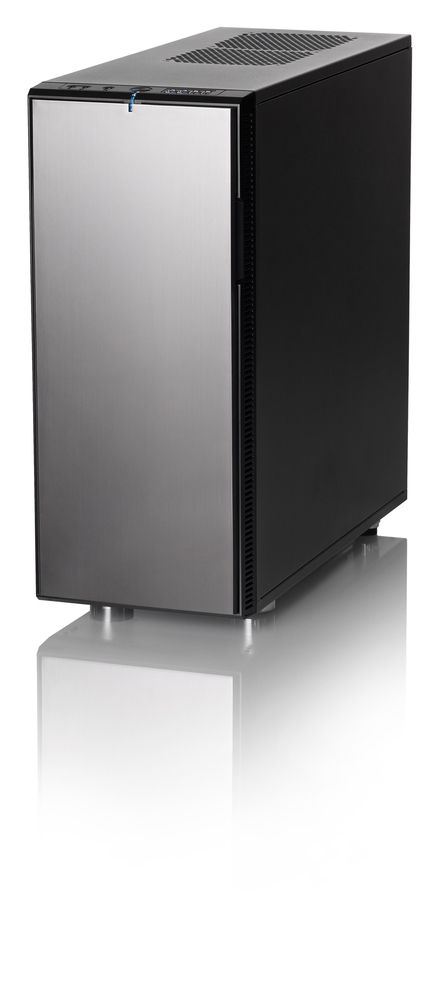

This particular version is 'Titanium Grey' in color.
Jon Bach (President)
Jon Bach (President) Says:
This is an impressive chassis, with impressive cooling potential. If you are building an EATX tower system, this is a strong choice.
Matt Bach (Puget Labs)
Matt Bach (Puget Labs) Says:

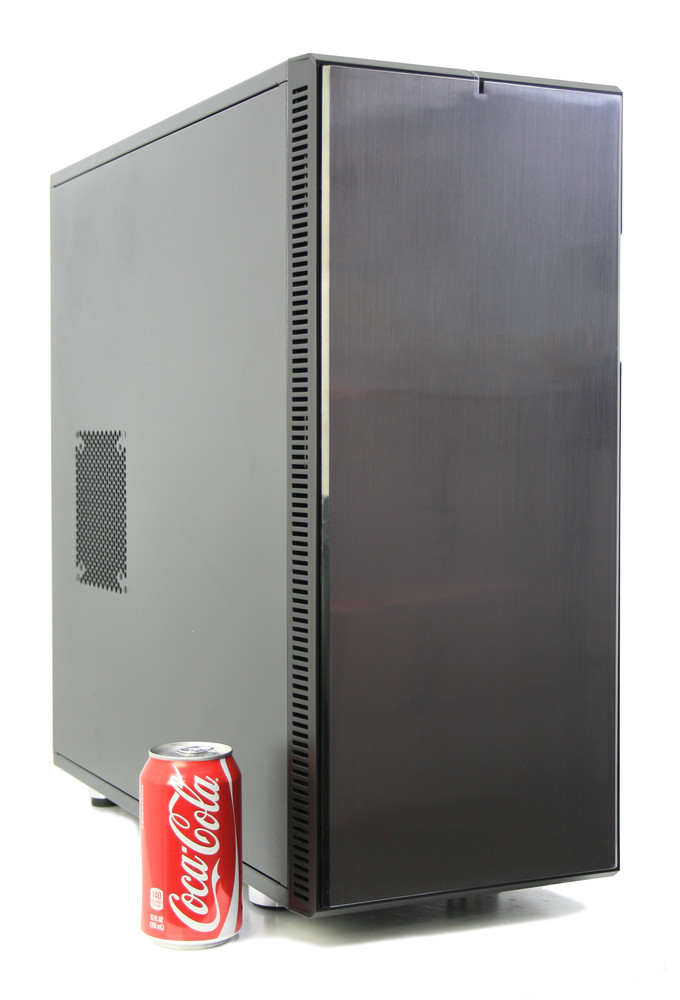

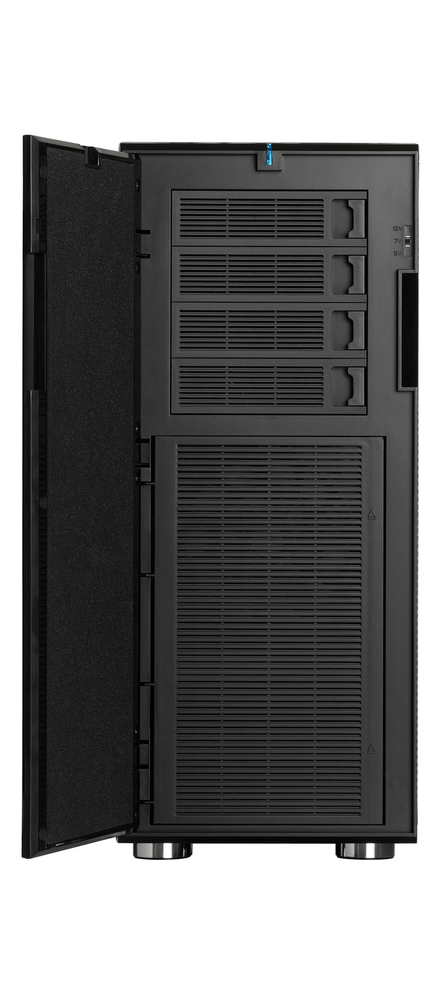

This chassis is a bit on the large side, but it has a ton of features that makes it a great choice if you want a very powerful system that is still moderately quiet. All of the different fan locations make it easy for us to optimize the cooling while the unused fan mounts come with a plate to block them off which reduces noise. One thing I really like about this chassis (and the Define R4) is the fan speed switch just behind the front door. This makes it really easy to turn your chassis fans up whenever you need a little bit of extra cooling. The only thing I don't like on this chassis is the front door. I think it looks great, but I really don't like how it only opens to to just past 90 degrees. On the other hand, with the power switch and front ports being on the top of the chassis, the only reason to open the door is to get to the 5.25" drives. And I can't remember the last time I needed to get to my optical drive beyond doing my initial Windows install.
Jeff Stubbers (Mr. Customer Service)
Jeff Stubbers (Mr. Customer Service) Says:
This is a very versatile case for cooling, and allows for a good amount of hard drives. The Fractal Design Define XL R2 does a good job of dampening the noise of your system as well. This case is definitely worth your consideration.

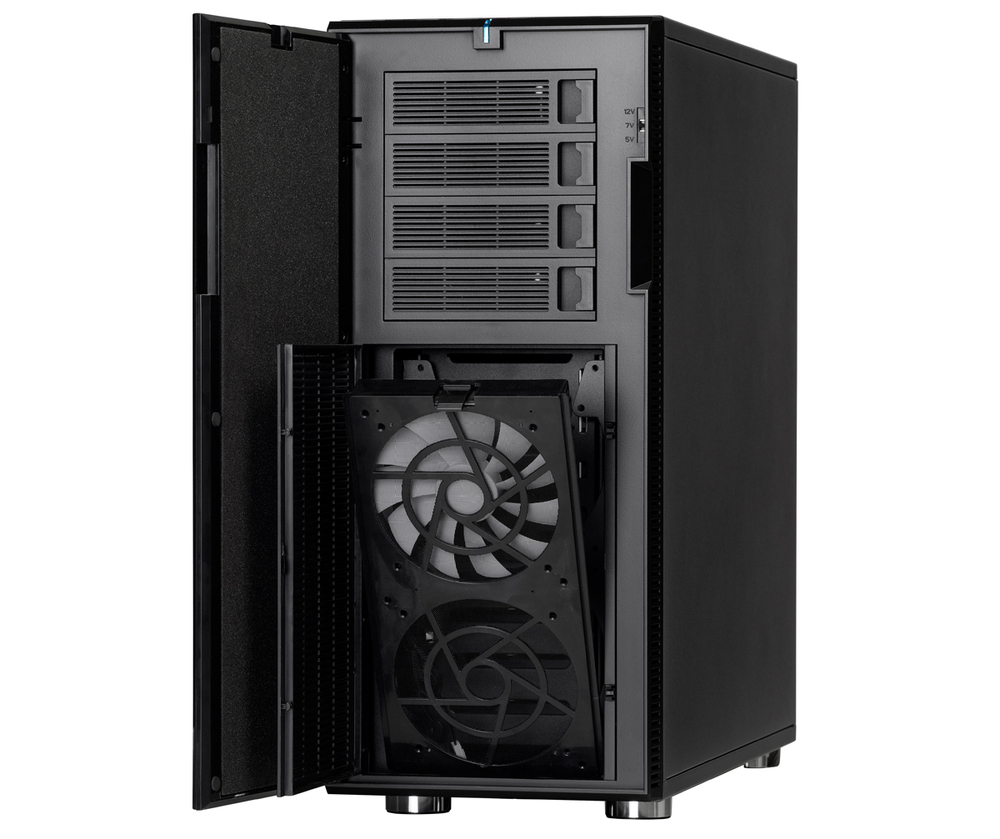

*This case gets plenty of cooling when the front door is closed. There are vents to left and right of the door designed to allow enough air in with the front door closed, and that air still gets filtered to stop the majority of dust from getting inside the system.

Note: We have designed custom shipping materials for this case. Specially made foam and boxes provide superior protection during shipping! Click here for more details.

Model: Fractal Design FD-CA-DEF-XL-R2-TI

Specifications:
spacer
Color  Grey
Material  Plastic front panel, steel frame
Type/Size  Full Tower
Maximum Motherboard Size  XL-ATX
Case Window  No
Power Supply  None
Dimensions
Height  559 mm (22.0 in)
Width  232 mm (9.1 in)
Depth  560 mm (22.0 in)
Net Weight  16.4 kg (36.2 lbs)
Maximum CPU Cooler Height  170mm (with no side fan)
Maximum GPU Length  330mm (480mm with top HD cage removed)
Maximum PSU Length  190mm (345mm with bottom fan removed)
Drive Bays
External 5.25 inch  4
External 3.5 inch  0
Internal 2.5/3.5 inch  8

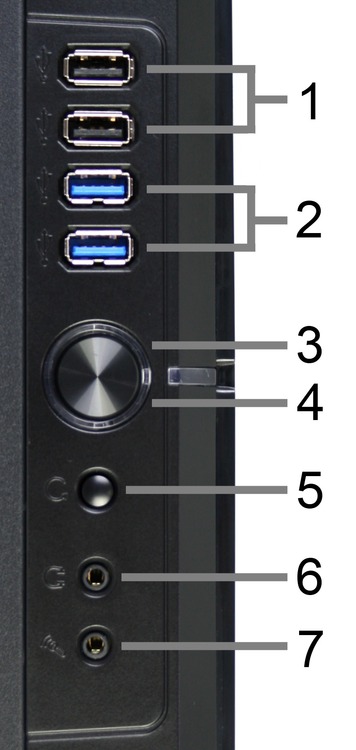

Front Panel Connectors
USB 2.0  2
USB 3.0  2
Audio In  1
Audio Out  1
Cooling System
Cooling Method  Air
Included Fans  1x 140mm Front, 1x 140mm Rear, 1x 140mm Bottom
Additional Fans Possible  1x 120/140mm front, 2x 120/140mm Top, 1x 140mm Side

Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.

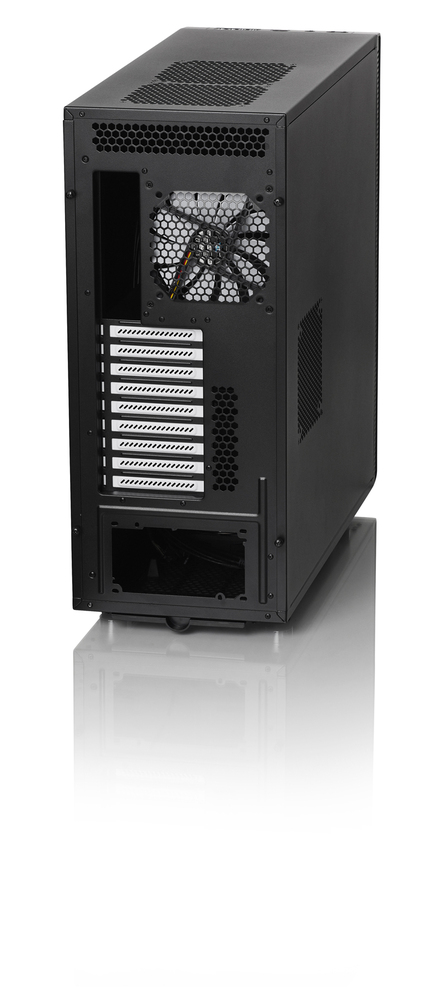

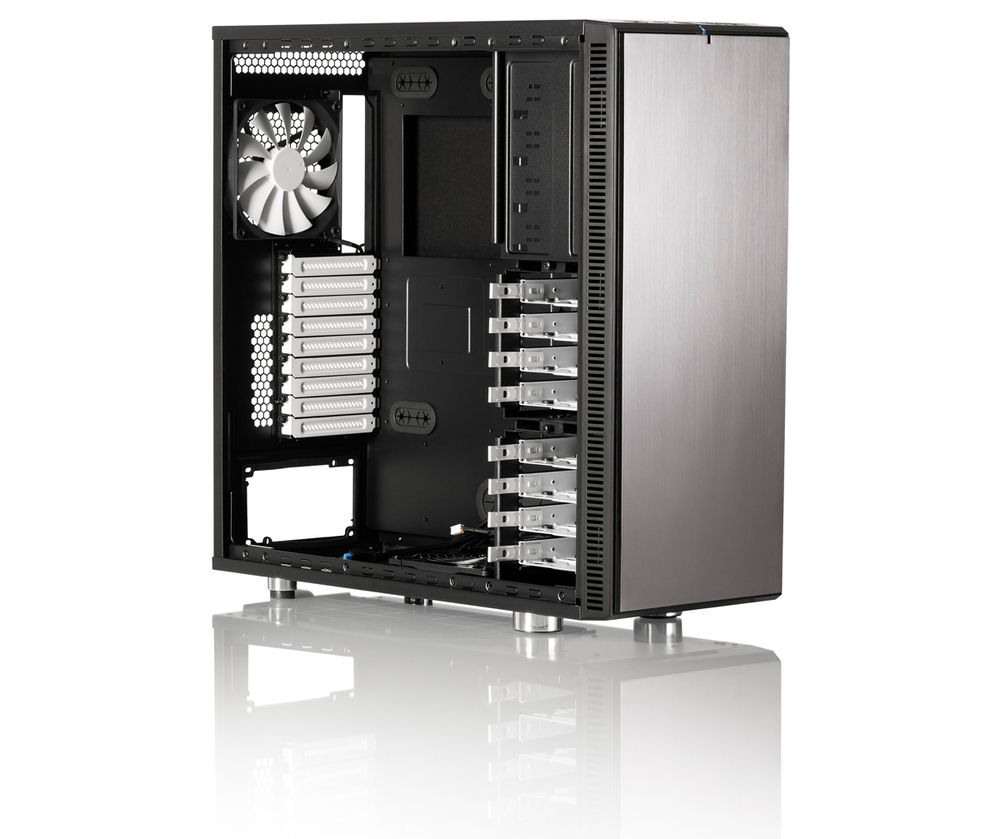

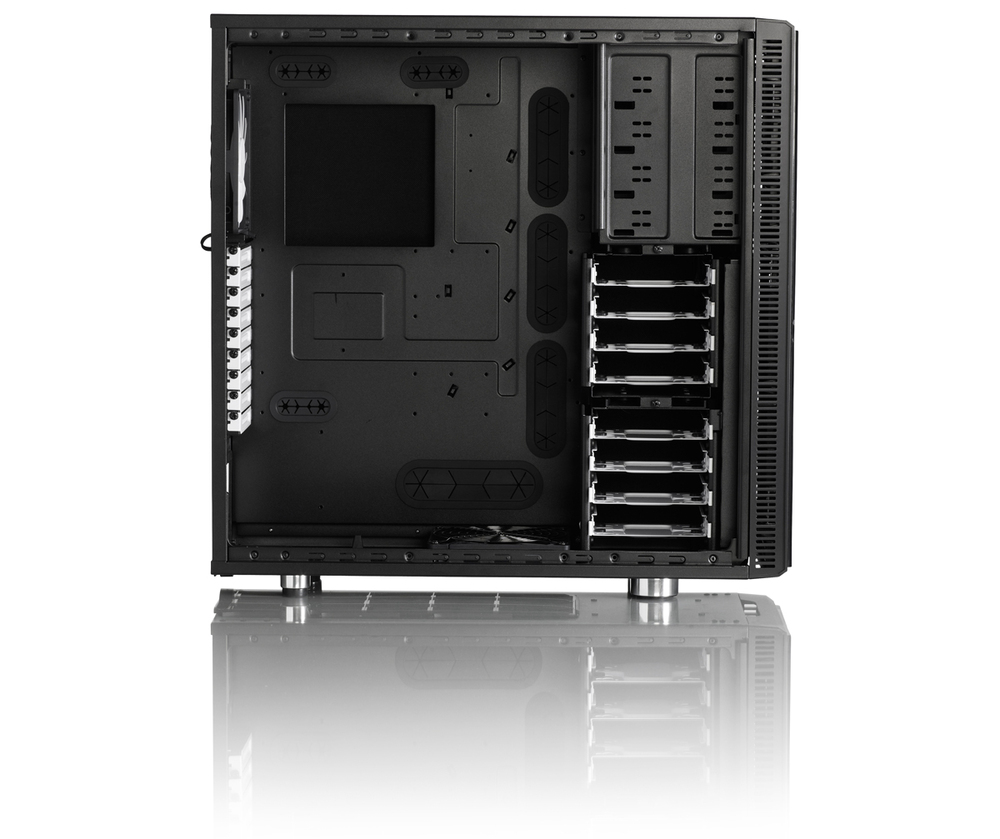

The Define XL R2, which includes Fractal Design’s innovative ModuVent™ feature, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators.
