EVGA X299 Micro

Motherboard

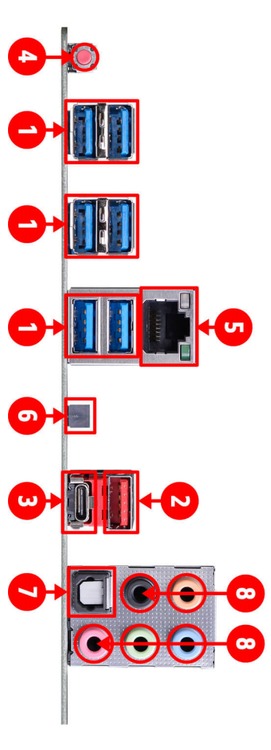

[ Rear Ports ]

EVGA X299 Micro Picture 43890EVGA X299 Micro Picture 43887EVGA X299 Micro Picture 43889EVGA X299 Micro Picture 43059EVGA X299 Micro Picture 43060EVGA X299 Micro Picture 43061
The EVGA X299 Micro is a small form factor mATX motherboard built for the enthusiast Core X-series processors from Intel. Like all boards based on the X299 chipset it supports DDR4 memory, and with four slots it can fit up to 64GB total in a quad-channel configuration.

For external connectivity it boasts six USB 3.0 ports and two USB 3.1, with one of those being a Type C port for the latest peripherals. Digital and analog audio are included too, along with Gb Ethernet and 802.11ac WiFi. Internally there are six SATA 6Gbps ports, one U.2 connector, and one M.2 slot for drives - as well as USB headers for front panel ports / devices. Three PCI-Express 3.0 x16 size slots are present, with two running at x16 speed and one at x4 (or x16, x8, and x4 on CPUs with fewer PCI-E lanes).
William George (Puget Labs)
William George (Puget Labs) Says:
Please note that only normal DIMMs (not RDIMMs) are supported by the X299 Micro, hence the 64GB memory limit. Also, the PCI-Express slot speeds depend on the processor installed. Lower-end chips have fewer PCI-E lanes, so if you plan on using a lot of expansion cards please check with our consultants to make sure you get a CPU that will support everything you need.
Jeff Stubbers (Mr. Customer Service)
Jeff Stubbers (Mr. Customer Service) Says:
This is an excellent MicroATX motherboard. This means it is a bit smaller than standard ATX motherboards so it can fit in a smaller case. However, this also means that it has a few less PCI-E expansion slots. So if you would like the capability to add more expansion cards (Firewire card, USB, RAID controller, or additional video cards) in the future, you may want to consider a standard ATX motherboard instead. The Gigabyte X299 AORUS 7 ATX motherboard also has 8 RAM slots for extra RAM expansion in the future, vs. 4 RAM slots on this motherboard.
Model: EVGA 131-SX-E295-KR

Specifications:
spacer
Socket  2066
CPU Compatibility  SkyLake-X
Form Factor  MicroATX
Chipset Manufacturer  Intel
Chipset  X299
Network Connectivity  Gigabit Networking + 802.11 A/B/G/N/AC
Network Controller  Intel i219v
Audio Controller  Onboard Realtek ALC1150
Cooling System  Heatsink
Color  Black
Memory Support
Type  DDR4
Maximum Speed  2666 MHz
Number of Slots  4
Maximum Size per Slot  16 GB
Maximum Amount Supported  64 GB
External Connections
USB 3.0  6
USB 3.1  1
USB 3.1 Type C  1
Audio Out  Surround Sound (7.1)
Audio In  Line-In/Microphone
S/PDIF  Optical
LAN (RJ45)  1
Wireless Antenna Port  Yes
Internal Connections
USB 2.0  2 (providing 4 ports)
USB 3.0  1 (providing 2 ports)
SATA III 6.0Gbps  6
M.2 Connector  1
M.2 Support  80mm (supports Optane)
U.2 Connector  1
Expansion Slots
Slot 1  PCI Express 3.0 x16
Slot 2  Slot not available on this board
Slot 3  PCI Express 3.0 x16
Slot 4  PCI Express 3.0 x4 in a x16 size
Additional Information
SLI Compatible  Yes
Crossfire Compatible  Yes
RAID Support  0/1/5/10
Bluetooth  Yes
BIOS Features
UEFI BIOS  Yes
EZ Flash  Yes
OC Profiles  Yes
