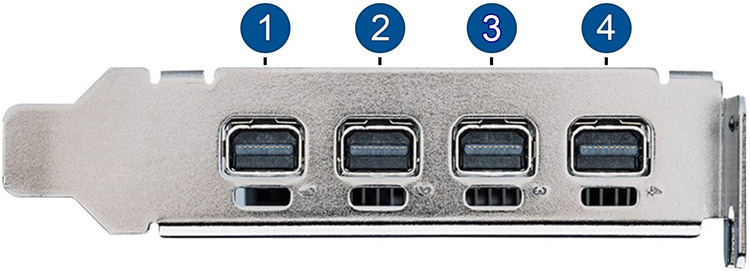

PNY Quadro P1000 PCI-E 4GB Ports
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.
Mini DisplayPort 1.4 Out Port: Outputs digital video and audio at up to 8K. Adaptable to standard DisplayPort.

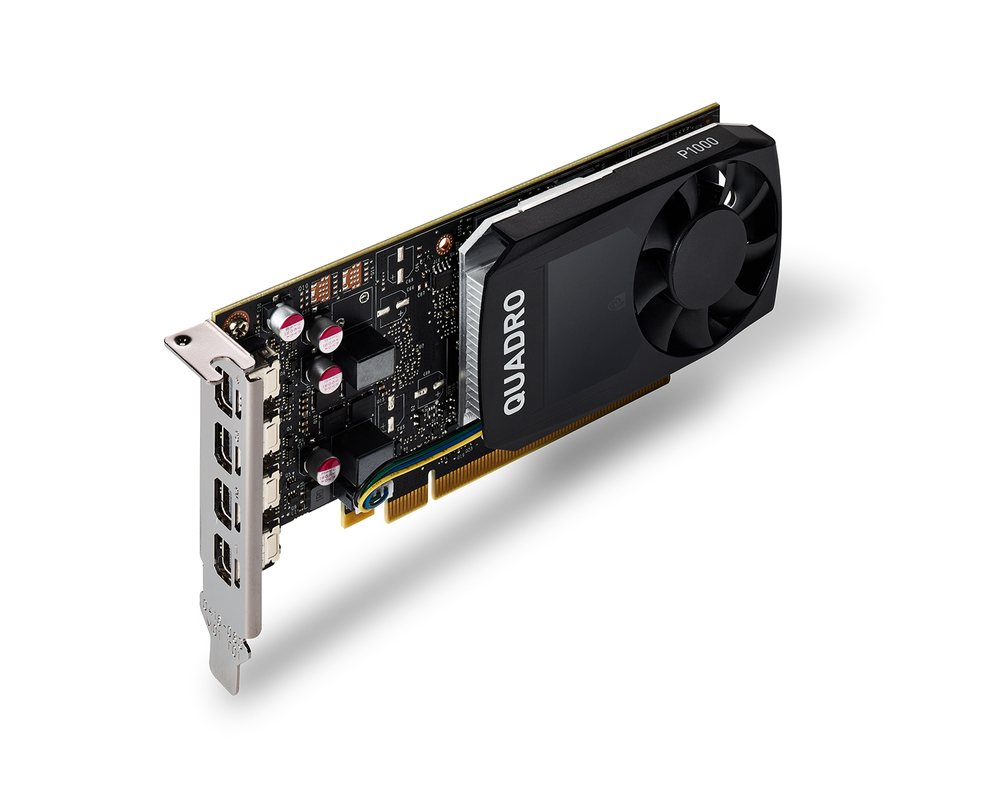

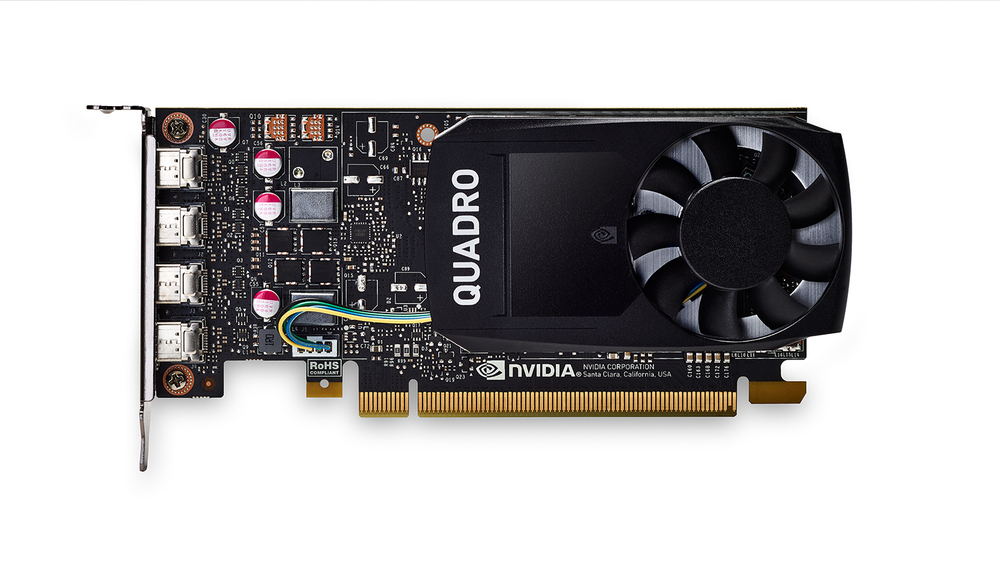

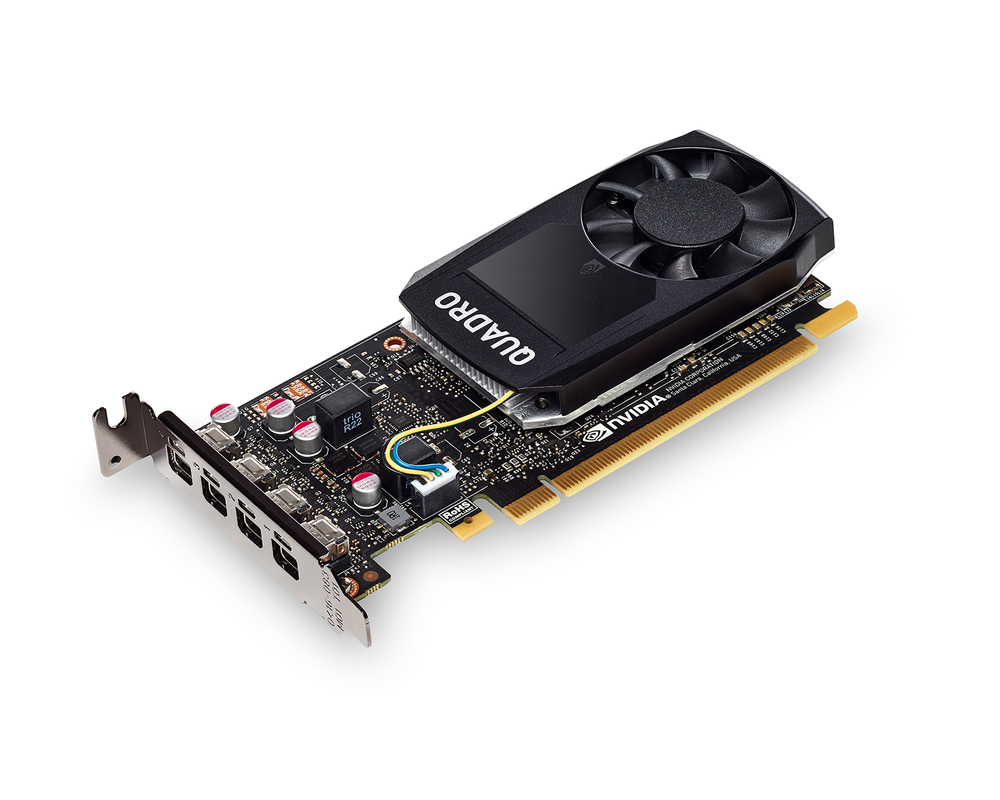

The NVIDIA Quadro P1000 is a low-profile, professional-grade video card. It has mid-range 3D performance, and specializes in multi-display situations thanks to four separate outputs. That means you can drive up to four displays by using only one card slot and driver, or stack multiple P1000 cards in a system to expand that to eight or even more outputs. It is perfect for stock/day traders or any other professional users who need multiple monitor support without high-end performance 3D graphics.

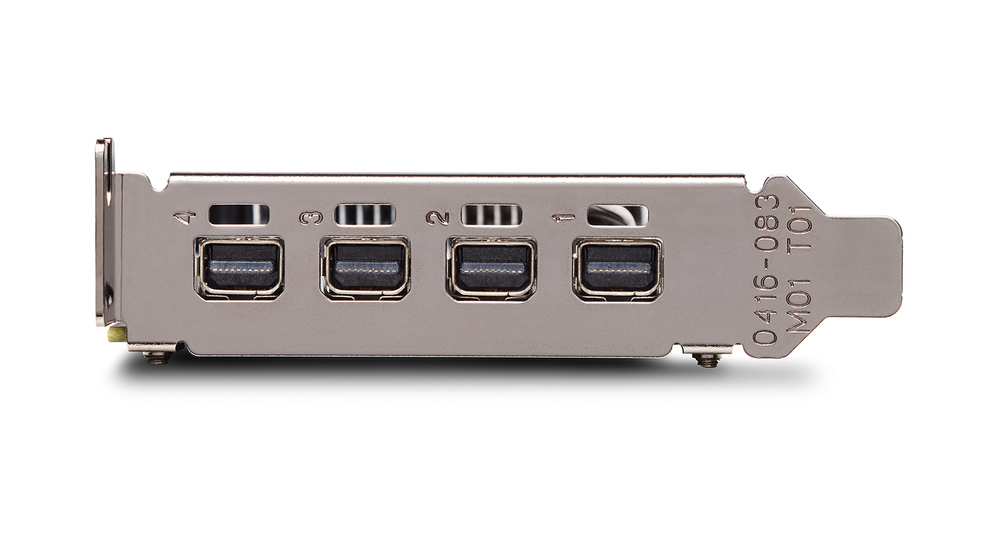

As described above, this card has four Mini DisplayPort connections - and includes adapters to full size DisplayPort as well. Adapters to DVI or HDMI can be purchased separately if needed, but please note that if you are using DVI adapters you will be limited to a lower maximum resolution per screen (1920x1200).
As described above, this card has four Mini DisplayPort connections - and includes adapters to full size DisplayPort as well. Adapters to DVI or HDMI can be purchased separately if needed, but please note that if you are using DVI adapters you will be limited to a lower maximum resolution per screen (1920x1200).
William George (Go-To-Market (GTM) Manager) Says:
This card has the same outputs as the less expensive P600, but since it has double the video memory (4GB instead of 2) it is much better suited to running several monitors at the same time.
This card has the same outputs as the less expensive P600, but since it has double the video memory (4GB instead of 2) it is much better suited to running several monitors at the same time.
Jeff Stubbers (Tier 3 Sales SME) Says:
This is a great card choice when you need to support many monitors for tasks like stock or commodities trading. This is a moderately powerful graphics card, but if you have higher-end 3D demanding programs that you intend to run such as CAD or 3D modeling, then you would want to choose a more powerful graphics card.
When choosing a graphics card, it is always important to make sure the monitor(s) that you intend to use will have compatible connection types with the graphics card outputs.
This card can support (4) 4K displays (4096x2160 @ 60Hz) with HDR color using its (4) Mini DisplayPort 1.4 connections.
This card comes with (4) Mini DP to DP adapters. Adapters from Mini DP to other types can be purchased separately.
Keep in mind that if you use the Mini DP to DVI adapters, the maximum resolution from those DVI adapters will be 1920x1200.
This is a great card choice when you need to support many monitors for tasks like stock or commodities trading. This is a moderately powerful graphics card, but if you have higher-end 3D demanding programs that you intend to run such as CAD or 3D modeling, then you would want to choose a more powerful graphics card.
When choosing a graphics card, it is always important to make sure the monitor(s) that you intend to use will have compatible connection types with the graphics card outputs.
This card can support (4) 4K displays (4096x2160 @ 60Hz) with HDR color using its (4) Mini DisplayPort 1.4 connections.
This card comes with (4) Mini DP to DP adapters. Adapters from Mini DP to other types can be purchased separately.
Keep in mind that if you use the Mini DP to DVI adapters, the maximum resolution from those DVI adapters will be 1920x1200.
Model: PNY VCQP1000-PB
Specifications
| Chipset Manufacturer | NVIDIA |
| Product Line | Quadro |
| Interface | PCI Express 3.0 x16 |
| Maximum Digital Resolution | 5120x2880 |
| Maximum Monitors Supported | 4 |
| HDCP Compliant | Yes |
GPU Specifications | |
| Stream Processors | 640 |
Memory Specifications | |
| Video Memory | 4GB |
| Memory Type | GDDR5 |
| Memory Bus Width | 128-bit |
| Bandwidth | 82 GB/s |
Performance | |
| Single Precision Floating Point (Peak) | 1.894 Tflops |
Additional Information | |
| Cooling System | Small Fan and Heatsink |
| DirectX Support | DirectX 12 |
| OpenGL Support | 4.5 |
| Removable Backplate | No |
| Slot Width | 1 |
Outputs | |
| Port 1 | Mini DisplayPort |
| Port 2 | Mini DisplayPort |
| Port 3 | Mini DisplayPort |
| Port 4 | Mini DisplayPort |
Power Connectors | |
| Plug 1 | None |
Dimensions | |
| Length | 144.78 mm (5.7 in) |
| Height | 69 mm (2.7 in) |
