PNY Quadro P600 PCI-E 2GB

Video Card

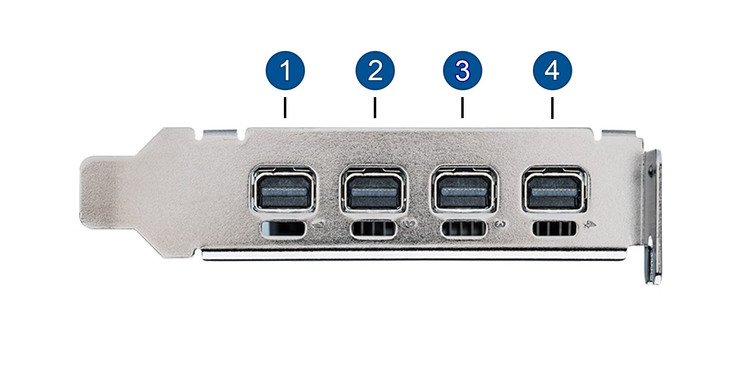

[ Rear Ports ]

PNY Quadro P600 PCI-E 2GB Picture 41750PNY Quadro P600 PCI-E 2GB Picture 41751PNY Quadro P600 PCI-E 2GB Picture 41752PNY Quadro P600 PCI-E 2GB Picture 41753PNY Quadro P600 PCI-E 2GB Picture 42278
The NVIDIA Quadro P600 is an entry-level, Pascal-based professional graphics card. It offers a performance boost over the earlier K600 and K620 models, and while the amount of video memory stayed the same (2GB) the number of video outputs increased from 2 to 4. That lets the P600 run up to four monitors, though with the limited video memory the resolution of the monitors should be kept at a moderate level.

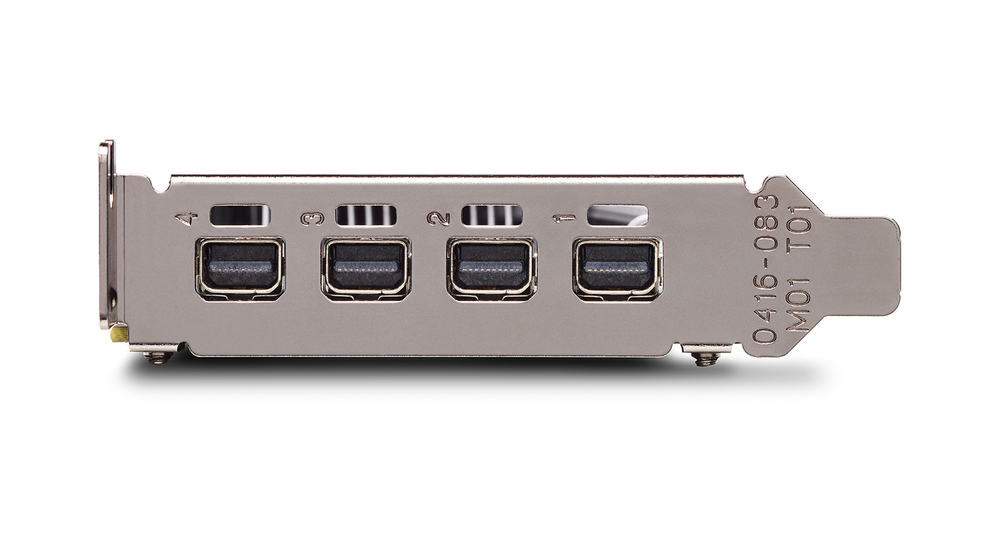

As described above, this card has four Mini DisplayPort connections - and includes adapters to full size DisplayPort as well. Adapters to DVI or HDMI can be purchased separately if needed, but please note that if you are using DVI adapters you will be limited to a lower maximum resolution per screen (1920x1200). A wide range of standards are also supported by this card: DirectX 11, OpenGL 4.4, CUDA 5.0, and OpenCL (to name a few).
William George (Puget Labs Technician)
William George (Puget Labs Technician) Says:
This is a good choice if you need basic graphics output to go alongside Tesla GPU accelerators. It is also viable for entry level CAD workstations, especially with primary 2D or simple 3D workloads.
Jeff Stubbers (Technology Consultant)
Jeff Stubbers (Technology Consultant) Says:
Nvidia lists these (4) Mini DisplayPort outputs as supporting 4x 4096x2160 @ 60Hz, or 4x 5120x2880 @ 60Hz.

This card comes with (4) Mini DP, to DP adapters.
Model: PNY VCQP600-PB

Chipset Manufacturer  NVIDIA
Product Line  Quadro
Motherboard Connection  PCI Express 3.0 x16
Maximum Digital Resolution  5120x2880
Maximum Monitors Supported  4
HDCP Compliant  Yes
GPU Specifications
Stream Processors  384
Memory Specifications
Video Memory  2GB
Memory Type  GDDR5
Memory Bus Width  128-bit
Bandwidth  64 GB/s
Single Precision Floating Point (Peak)  1.195 Tflops
Additional Information
Cooling System  Small Fan and Heatsink
DirectX Support  DirectX 12
OpenGL Support  4.5
Removable Backplate  No
Port 1  Mini DisplayPort
Port 2  Mini DisplayPort
Port 3  Mini DisplayPort
Port 4  Mini DisplayPort
Power Connectors
Plug 1  None
Length  144.78 mm (5.7 in)
Height  69 mm (2.7 in)

Configure a scientific workstation with the PNY Quadro P600 PCI-E 2GB.
