After Effects CPU performance: Intel Core X-10000 vs AMD Threadripper 3rd Gen

Written on November 25, 2019 by Matt Bach


For quite a while, After Effects has run best on CPUs that have exceptional per-core performance such as those found in Intel and AMD's "consumer" CPU lines. At the moment, both the AMD Ryzen 3rd Gen and Intel Core 9th Gen processors are excellent choices, both in terms of straight performance as well as their ability to support up to 128GB of RAM. That may sound like an absurd amount of RAM to non-AE users, but it is incredibly important as the more RAM you have, the more frames that can be stored in RAM Preview, which in turn means fewer frames that end up being re-rendered needlessly. And when you have comps that render at 5FPS (or less!), not needing to re-render frames is incredibly important.

Today, however, both Intel and AMD are launching a new set of HEDT (High End Desktop) processors. While performance is always going to be a main topic of discussion, what makes them immediately interesting for After Effects is the fact that both of these new processor lines support up to 256GB of RAM - doubling the amount of RAM we could use previously without needing to resort to an Intel Xeon-W platform.

On Intel's side, the new Core X-10000 series processors are not significantly faster than the previous generation, but in addition to the increased RAM capacity, Intel has also cut their prices nearly in half! For example, where the MSRP of the Core i9 9980XE was $1,979, the new Core i9 10980XE is just $979. This makes them a relatively affordable way to get 256GB of RAM - assuming the performance is up to snuff.

On AMD's side, the new Threadripper 3rd Gen CPUs are slightly more expensive than earlier models, but their raw performance is expected to be quite a bit better. What makes us most excited about these processors is not the performance in highly threaded tasks where AMD has typically been strong, but the fact that single-threaded performance has been drastically improved. The previous generation Threadripper CPUs were frankly terrible for After Effects, but these new models should (at least in theory) be great even in lightly threaded applications like this.

Intel Core X-series vs AMD Threadripper 3rd Gen After Effects Review

In this article, we will specifically be examining the performance of these new CPUs in After Effects, although on our article listing page, we also have a range of similar posts examining other applications. If you would like to skip over our test setup and benchmark sections, feel free to jump right to the Conclusion.

Looking for an After Effects Workstation?

Puget Systems offers a range of powerful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!

Test Setup

Listed below are the specifications of the systems we will be using for our testing:

AMD Ryzen Test Platform

AMD Ryzen 9 3950X ($749)
AMD Ryzen 9 3900X ($499)
AMD Ryzen 7 3800X ($399)​​​​​​​

CPU Cooler Noctua NH-U12S
Motherboard Gigabyte X570 AORUS ULTRA
RAM 4x DDR4-2933 16GB (64GB total)
Intel 9th Gen Test Platform

Intel Core i9 9900K ($499)​​​​​​​
Intel Core i7 9700K ($385)​​​​​​​

CPU Cooler Noctua NH-U12S
Motherboard Gigabyte Z390 Designare
RAM 4x DDR4-2666 16GB (64GB total)
AMD Threadripper 2nd Gen Test Platform
CPU AMD TR 2990WX - DLM on ($1,799)
AMD TR 2970WX - DLM on ($1,299)
AMD TR 2950X ($899)
AMD TR 2920X ($649)
CPU Cooler Corsair Hydro Series H80i v2
Motherboard Gigabyte X399 AORUS Xtreme
RAM 4x DDR4-2666 16GB (64GB total)
Intel X-9000 Series Test Platform
CPU Intel Core i9 9980XE ($1,979)​​​​​​​
Intel Core i9 9960X ($1,684)​​​​​​​
Intel Core i9 9940X ($1,387)​​​​​​​
Intel Core i9 9920X ($1,189)​​​​​​​
Intel Core i9 9900X ($989)​​​​​​​
CPU Cooler Noctua NH-U12DX i4
Motherboard Gigabyte X299 Designare EX
RAM 4x DDR4-2666 16GB (64GB total)
AMD Threadripper 3rd Gen Test Platform
CPU AMD TR 3970X ($1,999)
AMD TR 3960X ($1,399)
CPU Cooler Corsair Hydro Series H80i v2
Motherboard Gigabyte TRX40 AORUS Xtreme
RAM 4x DDR4-2933 16GB (64GB total)
Intel X-10000 Series Test Platform
CPU Intel Core i9 10980XE ($979)
Intel Core i9 10940X ($784)​​​​​​​
Intel Core i9 10920X ($689)​​​​​​​​​​​​​​
Intel Core i9 10900X ($590)​​​​​​​​​​​​​​
CPU Cooler Noctua NH-U12DX i4
Motherboard Gigabyte X299 Designare EX
RAM 4x DDR4-2933 16GB (64GB total)
Shared Hardware/Software
Video Card NVIDIA GeForce RTX 2080 Ti 11GB
Hard Drive Samsung 960 Pro 1TB
Software Windows 10 Pro 64-bit (version 1903)
Adobe After Effects 2020 (Ver. 17.0)
PugetBench V0.8 BETA for After Effects

*All the latest drivers, OS updates, BIOS, and firmware applied as of November 11th, 2019

A few notes regarding the hardware and software used in our testing:

First, due to the fact that many of the platforms we are testing support different speeds of RAM depending on how many sticks you use and even whether those sticks are single or dual rank, we have decided to standardize on using four 16GB sticks of whatever the "middle" supported RAM speed is (rounding up when applicable). This means that the latest Ryzen, Threadripper, and X-series platforms are using DDR4-2933 while the Intel 9th Gen and previous generation Threadripper/X-series platforms are using DDR4-2666.

The second thing to note is that we are using a version of our After Effects Benchmark that is not yet released to the public. The scores from this upcoming version are completely interchangeable with the version you can currently download; we have just made a few usability and stability improvements. This means that you are free to download the version that is currently available to compare your system to the results in this post.

Benchmark Results

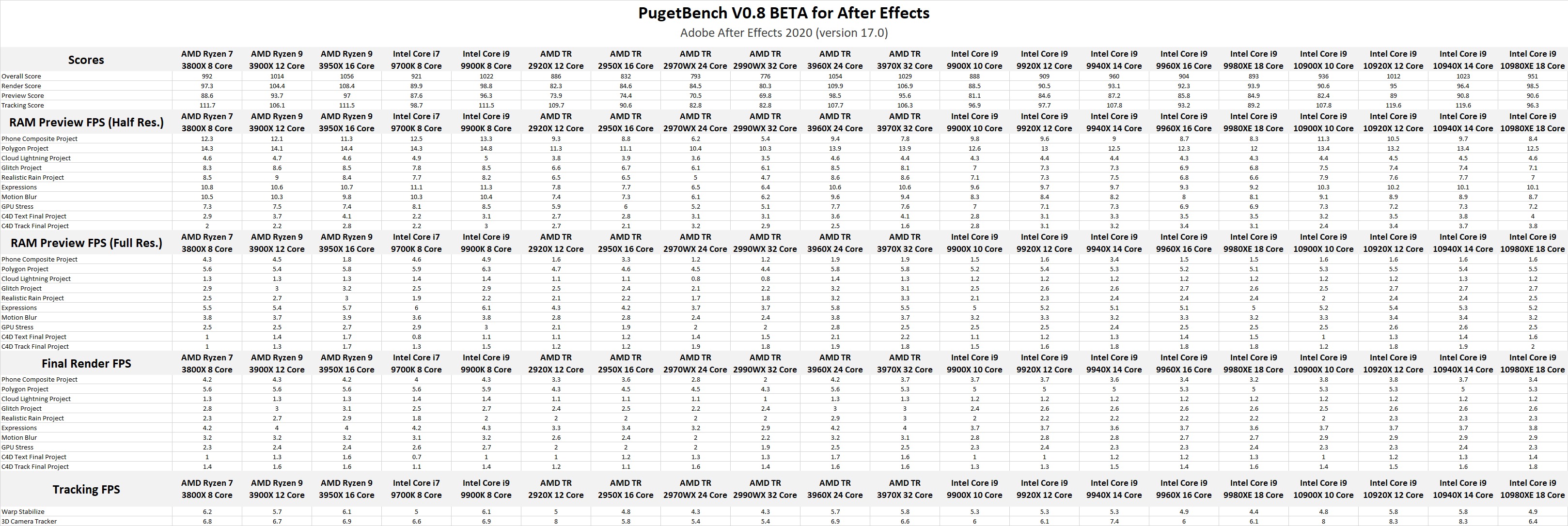

While our benchmark presents various scores based on the performance of each test, we also like to provide the individual results for you to examine if you want to. If there is a specific task that is a hindrance to your workflow, examining the raw results for that task is going to be much more applicable than the scores that our benchmark calculated.

Feel free to skip to the next section for our analysis of these results if you rather get a wider view of how each CPU performs in After Effects.

Intel X-10000 series vs AMD Threadripper 3rd Gen After Effects Performance Benchmark

After Effects Benchmark Analysis

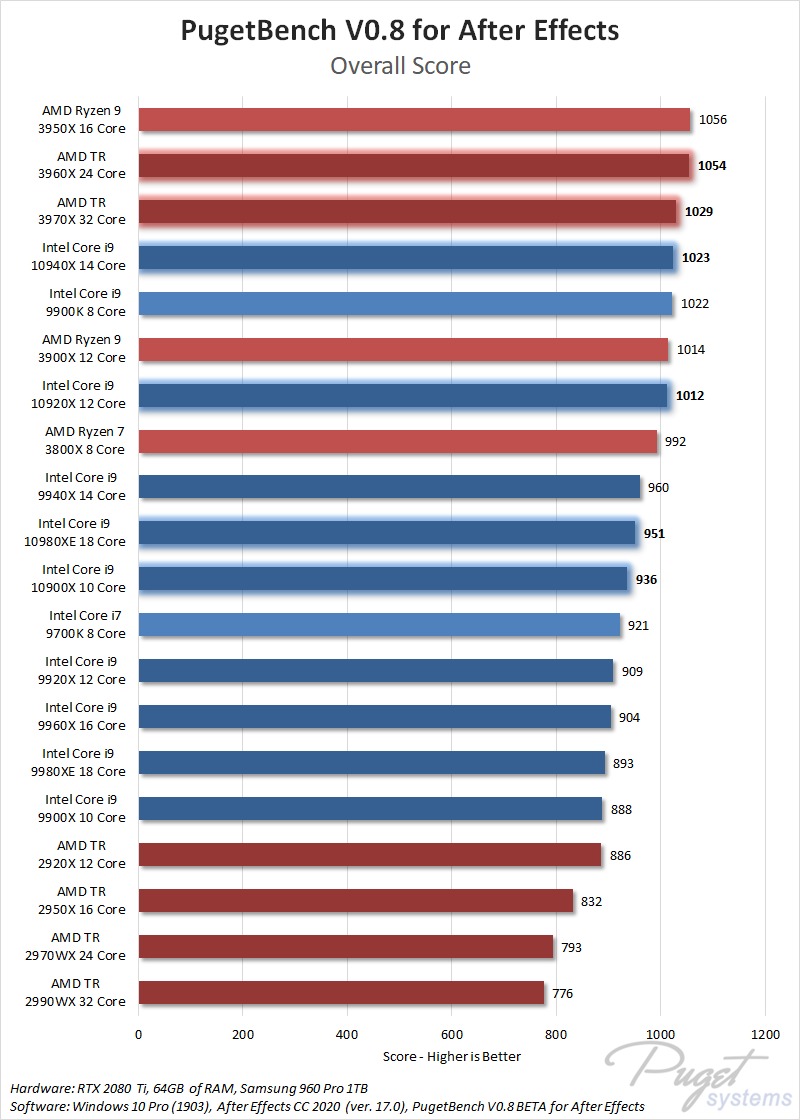

A lot is going on in the chart below, so before getting into it we wanted to provide a key regarding the color scheme.

  • Light blue = Intel consumer CPUs (9th Gen)
  • Dark blue = Intel HEDT CPUs (X-9000 series)
  • Dark blue with glow - NEW Intel HEDT CPUs (X-10000 series)
  • Light red = AMD consumer CPUs (Ryzen 3rd Gen)
  • Dark red = AMD HEDT CPUs (Threadripper 2nd Gen)
  • Dark red with glow - NEW AMD HEDT CPUs (Threadripper 3rd Gen)

Since After Effects is currently only able to effectively utilize a handful of CPU cores, many of the high-end CPUs from AMD and Intel are going to have relatively similar performance since their maximum Turbo speeds tend to be very close. This means that outside a few isolated cases, you are rarely going to get significantly worse performance in After Effects with any of the new CPUs we tested. However, there are some nuances here, so let's examine the results in closer detail.

First of all, AMD's new 3rd Gen Threadripper CPUs are great, although as we have seen in many other lightly threaded applications, the 3960X 24 core is actually a bit faster overall than the 3970X 32 core. The performance over the previous generation is especially impressive as both these processors are roughly 30% faster than the Threadripper 2970WX/2990WX. Having said that, it is worth pointing out that the AMD Ryzen 3950X overall gives almost identical performance, which will make the higher price of the new Threadripper CPUs hard to justify for many users.

On Intel's side, the story is fairly similar. Here, the 10920X 12 core and 10940X 14 core seem to be the sweet spot, with both of these CPUs performing overall within a few percent of AMD's 3950X and 3960X processors. However, much of that comes from their higher tracking performance. In terms of RAM Preview and rendering performance, they are around 10% slower than the AMD 3950X/3960X and even the more affordable Intel Core i9 9900K performs on par or better.

Of course, while the performance of your CPU is obviously important, in many cases the amount of RAM in your system will also make a huge impact on the overall performance of your system since it allows you to store more frames in RAM Preview. If you work with 4K+ projects that are more than a minute or two long (or lower resolution, but longer projects), the ability to have 256GB with either the new Intel X-series or AMD Threadripper CPUs can be highly beneficial. If you want a rough idea about how much RAM you likely need, we recommend checking out the guideline charts on our After Effects Hardware Recommendations page.

Are the Intel X-10000 Series or AMD Threadripper 3rd Gen CPUs better for After Effects?

If you are simply looking for the best performance in After Effects, there are plenty of options that are more affordable than the Intel X-series or AMD Threadripper processors that will get you nearly the same performance. For example, the AMD Ryzen 9 3900X/3950X and the Intel Core i9 9900K are all terrific for After Effects and cost a fraction of these HEDT processors. However, for users that work with longer and higher resolution projects, the ability to use up to 256GB of RAM with either the AMD Threadripper 3rd Gen or Intel X-10000 series can be a major benefit.

For those that need 256GB of RAM, choosing between an X-series CPU and a Threadripper CPU is a tough call. if you want the best performance, the AMD Threadripper 3960X 24 core was the fastest CPU we tested for both RAM Preview and rendering, coming in at about 8-14% faster than the Intel Core i9 10940X (which was the best overall X-series CPU). On the other hand, the Core i9 10940X is faster for tracking and is significantly less expensive with an MSRP that is about $600 less. If you already have a need for 256GB of RAM, that difference in price may be what allows you to afford it or lets you upgrade other components in the system that can make back some of that performance difference, or simply keeps you with budget.

All in all, most users that have a need for one of these new CPUs are likely going to find themselves choosing between the Intel Core i9 10940X (or possibly the 10920X) and the AMD Threadripper 3960X. Which one is right for you is primarily going to depend on your exact budget, but definitely keep in mind that there are other factors you need to consider. For example, if you need Thunderbolt you pretty much need to stick with Intel as there are no AMD platforms that currently have certified Thunderbolt support - and no, we don't count ASRock's Ryzen boards that are using uncertified Thunderbolt implementations.

In addition, you need to factor in the other applications that are a regular part of your workflow. The benchmark results in this article are strictly for After Effects and the relative performance will vary widely between different applications. If your workflow includes other software packages (we have similar articles for Photoshop, Lightroom Classic, Premiere Pro, DaVinci Resolve, and many others), you need to consider how the processor will perform in all those applications. Be sure to check our list of Hardware Articles to keep up to date on how all of these software packages perform with the latest CPUs.

Looking for an After Effects Workstation?

Puget Systems offers a range of poweful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!
Tags: Intel 9th Gen, Intel X-series, Intel vs AMD, AMD Ryzen 3rd Gen, AMD Threadripper 2nd Gen, Intel X-10000, After Effects

To get around AE not utilizing cores effectively we use RenderGarden or BGRenderMax (basically launching 'aerender' multiple times), if you have enough ram you can pretty much max out your cpu. You guys are the only people I can find who have the chips and comment on After Effects so I know for one I'd love to know the impact these scripts have on the higher core count cpus, both intel and amd. Because I own a 9900k and a 2990wx and can say that 99% of the time with these scripts the 29 would beat 99 but these benchmarks indicate that 29 is the worst. I understand that you would want to keep it native but I feel like AE is a special case and theres so much performance left on the table. Thanks for your hard work though!

Posted on 2019-11-25 14:48:03

The thing worth remembering is that Puget focuses more on actual work speed and live previewing, not on final rendering.

In final renders, using external scripts like RenderGarden to utilize all cores (and multiple systems for that matter) will be better, but this is only half of a project's processing work (often less)

Posted on 2019-11-26 03:44:14

Yeah, work speed is important for sure hence why I do have the two CPUs atm. I just feel like the Render Score should be added upon (native vs 3rd party) as with RAM preview there's only a 20-30% margin from the highest on this list to the bottom whereas if you were to compare render times with RG it could be astronomical 2-300% but it's a bit hard to tell that difference as a consumer without benchmarks.

Have thought about it though and due to the differences it might be a little hard to calculate how many aerenders to run per system to standardize a test, but I'm sure you could just keep launching them until it maxes it out. Maybe even just mentioning it in AE articles would be a good idea so at least people are aware :)

Posted on 2019-11-26 06:30:13

Our previous articles for After Effects actually included a "Render Node" test using our AErender benchmark - http://pugetsystems.com/go/... - which uses the same methods as RenderGarden or BGRenderMax. The reason why we didn't run it this time around is that since we standardized on 64GB of RAM on each platform, it was resulting in really poor performance on the higher core count CPUs.

Aerender spawns a bunch of threads and each thread needs to have it's own share of RAM and VRAM. The problem is that since our test projects are pretty intensive and require a decent chunk of system memory to render. With just 64GB of RAM, we can only successfully spawn a handful of render nodes which, for whatever reason, highly favored the Intel 9th Gen and Ryzen CPUs. As an example, where the Core i9 9900K and Ryzen 3950X got a score of ~3000 in that benchmark, the Threadripper 3970X and most of the X-series CPUs only go a score of ~2000. I went ahead and threw up the chart if you want to see the results I have on hand: https://www.pugetsystems.co...

I don't believe that is indicative of real world performance, which is why I kept it out of this test. I think what we are going to have to do is to keep one of the current tests (to act as a really intensive project), but replace the others with ones that are a lot less heavy on RAM usage. The thing is, our "Expressions" comp really shouldn't be all that intensive for RAM usage already, so I'm not sure why we are hitting a RAM limit - or if that is even what is happening. I'm a bit worried it is some sort of issue with After Effects 2020, but I haven't been able to investigate yet with all these launches going on.

Another factor is that the AE team teased their work on vastly improving the multithreading capabilities at Adobe MAX which, if it actually works as they are hoping, would make plugins like RenderGarden largely obsolete. They could still be used to send render jobs to other computers, but as far as a multi-threading workaround, they (hopefully) shouldn't be needed anymore.

Posted on 2019-11-26 18:51:07

Thanks for the detailed reply. Yeah I assume you're hitting ram cap there so the lower core ones are hitting higher GHz and getting ahead, have experienced that myself, but realised was editing in 32bps so it was eating ram.

It is a hard thing to test for sure, kindof needs certain criteria to be met otherwise I suppose it does end up being slower.

Damn, if adobe does really do that that'll be insane, seemed like they were giving up on cpu and going full gpu lol.

Posted on 2019-11-27 01:43:29
Markus Rautaniemi

There is a stinging performance anomaly at 3950x Phone Composite Project with a result of only 1.8. Is this a marking error or what could be going on in there?

Posted on 2019-11-30 11:17:02
Thomas Collier

One thing I am wondering if it is overlooked here as I go back and forth between x299 or trx40 is; what effect does PCIE 4.0 have on this? Intel is totally lacking, but the new 4.0 NVME SSDs are putting up some great numbers. Is it worth me spending $700 more on a 3960x vs the 10940x? X299 must be at the end of its lifespan at this point. I don't really do much CPU rendering in C4D anymore (octane now, redshift in the future), so the extra cores are pointless. I just hate having this feeling I'm spending a lot of money on a EOL platform, when I could spend a little more and make the switch to Ryzen.

Posted on 2019-12-13 17:12:32

Right now, PCIe 4.0 isn't going to do much for you. The crazy fast storage drives are definitely cool, but there really are not too many instances where the extra speed is going to actually help in these kinds of workflows. You can get 3.5GB/s with a PCIe 3.0 drive, and nothing thr majority of people will be doing is going to need anything close to that. Storage is just not the bottleneck, so going even faster doesn't do much.

PCIe 4.0 GPUs are really going to be the only place where it may help in the near future. For a lot of people even that probably won't matter since AE doesn't use the GPU all that much. Since you use Octane/Redshift, however, it may end up being useful - we just won't know by how much until fast GPUs come out with PCIe 4.0 support.

As for "dead" platforms, I personally don't worry about that. Most motherboards are likely to only support two (possibly three) generations of processors, so you would need to upgrade your CPU within the next couple of years for that to matter. Most people only upgrade every 3+ years, in which case they are probably going to need a new motherboard either way. Although for the people that do upgrade quicker, that is definitely a factor.

Posted on 2019-12-13 17:23:33

This processor could be interesting to try with any older version of After Effects pre 2014 when there was multi processor support possible.

Posted on 2019-12-30 15:35:17

Unfortunately, you can download a few versions back now, so AE 16.1.3 would be the oldest we could test and that is well past when "render multiple frames simultaneously" was removed. We do test a form of that with our AERender benchmark, however, which is designed to emulate what plugins like Render Garden and BGRender Max do: http://www.pugetsystems.com... .

We normally include that benchmark in our AE testing, but we ran into an issue due to the fact that we standardized all our test systems to 64GB of RAM. Basically, with our test projects and the fact that every instance of AERender that is running requires it's own allocation of RAM/VRAM, we are only able to spawn somewhere around 8-10 render threads without the render failing. This resulted in CPUs like the 3900X and 9900K out-performing the AMD Threadripper CPUs by a pretty decent margin. I don't think that is really indicative of real-world performance, which is why we didn't include that benchmark in this article.

We need to either go back to using the maximum supported RAM capacities (which then brings back issues with what speed of memory to use), or adjust our test comps for that benchmark to need less RAM/VRAM so that we can successfully render with more threads.

Posted on 2020-01-02 18:35:36
