Photoshop CPU performance: Intel Core X-10000 vs AMD Threadripper 3rd Gen

Introduction

For years, choosing between an Intel and AMD processor has been relatively straight forward: Intel held a very strong lead for any application that is lightly threaded (like Photoshop), while AMD excelled for any application that is able to effectively utilize a high number of CPU cores. This changed quite a bit on the consumer side when AMD launched their 3rd generation Ryzen CPUs, but held true when it came to the HEDT (High End Desktop) processors from both brands.

Today, both Intel and AMD are launching new HEDT processors that have the potential to shake things up dramatically. On Intel's side, the new Core X-10000 series processors are not significantly faster than the previous generation, but Intel has cut their prices nearly in half! For example, where the MSRP of the Core i9 9980XE was $1,979, the new Core i9 10980XE is just $979.

On AMD's side, the new Threadripper 3rd Gen CPUs are slightly more expensive than earlier models, but their raw performance is expected to be quite a bit better. What makes us most excited about these processors is not the performance in highly threaded tasks where AMD has typically been strong, but the fact that single-threaded performance (which is a major issue with the first and second-generation Threadripper CPUs) has been drastically improved.

In this article, we will be examining the performance of these new CPUs in Photoshop, although on our article listing page, we also have a range of similar posts examining other applications. If you would like to skip over our test setup and benchmark sections, feel free to jump right to the Conclusion.

Test Setup

Listed below are the specifications of the systems we will be using for our testing:

*All the latest drivers, OS updates, BIOS, and firmware applied as of November 11th, 2019

A few notes regarding the hardware and software used in our testing:

First, due to the fact that many of the platforms we are testing support different speeds of RAM depending on how many sticks you use and even whether those sticks are single or dual rank, we have decided to standardize on using four 16GB sticks of whatever the "middle" supported RAM speed is (rounding up when applicable). This means that the latest Ryzen, Threadripper and X-series platforms are using DDR4-2933 while the Intel 9th Gen and previous generation Threadripper/X-series platforms are using DDR4-2666.

The second thing to note is that we are using a version of our Photoshop Benchmark that is not yet released to the public. The scores from this upcoming version are completely interchangeable with the version you can currently download; we have just made a few usability and stability improvements. This means that you are free to download the version that is currently available to compare your system to the results in this post.

Benchmark Results

While our benchmark presents various scores based on the performance of each test, we also like to provide the individual results for you to examine. If there is a specific task that is a hindrance to your workflow, examining the raw results for that task is going to be much more applicable than the scores that our benchmark calculated.

Feel free to skip to the next section for our analysis of these results to get a wider view of how each CPU performs in Photoshop.

Photoshop Benchmark Analysis

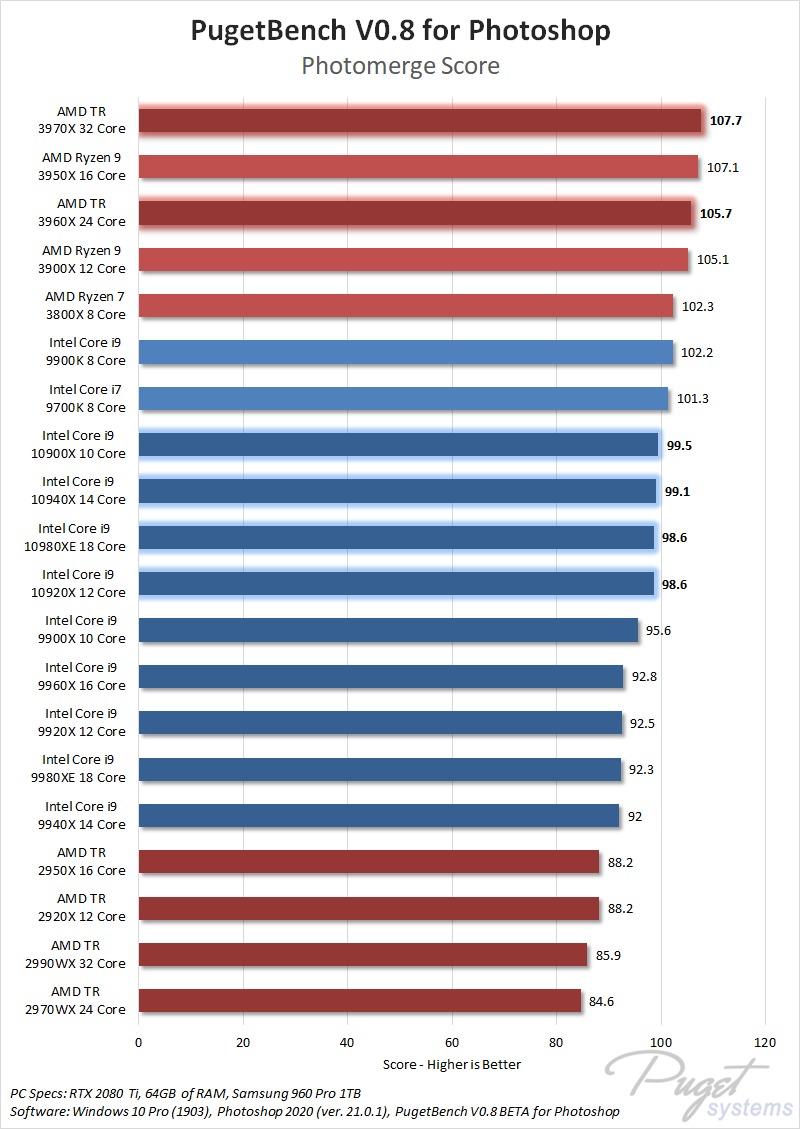

A lot is going on in the chart below, so before getting into it we wanted to provide a key regarding the color scheme.

• Light blue = Intel consumer CPUs (9th Gen)
• Dark blue = Intel HEDT CPUs (X-9000 series)
• Dark blue with glow – NEW Intel HEDT CPUs (X-10000 series)
• Light red = AMD consumer CPUs (Ryzen 3rd Gen)
• Dark red = AMD HEDT CPUs (Threadripper 2nd Gen)
• Dark red with glow – NEW AMD HEDT CPUs (Threadripper 3rd Gen)

When comparing 20 different CPUs, there is potentially a huge amount of results to analyze. Thankfully, Photoshop is relatively straight forward since it is a lightly threaded application. This means that core count doesn't impact performance all that much – it is all about the maximum Turbo speed and the general architecture of each CPU.

Starting with new Intel Core X-10000 CPUs, these new models are all about 6-8% faster than the previous generation which is about what we have come to expect from CPU refreshes in recent years. Combined with the huge price cut, this would normally be a pretty exciting CPU launch.

Unfortunately for Intel, AMD steals the show with the new Threadripper CPUs. In terms of straight performance, the Threadripper 3960X (which is actually a hair faster than the 3970X for this workload) is about 5% faster than the Core i9 10980XE. This isn't a great return on investment considering the 3960X has a $420 higher MSRP, but what is incredible is the fact that the 3970X and 3960X are about 70% faster than the previous generation 2990WX and 2970WX. That is a massive improvement in performance and definitively shows that AMD has effectively solved the single-threaded performance issues that have plagued the first and second-generation Threadripper CPUs.

Of course, if you want to get the best performance possible in Photoshop, there are better options than either the Intel Core X-10000 series or the AMD Threadripper 3rd Gen processors. You even have several choices with both the AMD Ryzen 9 3900X and Intel Core i9 9900K performing within a percent of the (much) more expensive Threadripper 3960X, and only barely trailing behind the (slightly) more expensive AMD Ryzen 9 3950X.

Are the Intel X-10000 Series or AMD Threadripper 3rd Gen CPUs better for Photoshop?

Choosing between an Intel X-10000 series or an AMD Threadripper 3rd Gen CPU for Photoshop is a bit of an odd situation since neither is the ideal CPU for this kind of application. However, in terms of absolute performance, the AMD Threadripper 3960X wins this versus battle, although the Intel X-10000 series processors are only about 4% slower at a much lower price point.

While the larger memory capacity (256GB max) of these processors will be useful for a small number of Photoshop users, most people are likely going to go for the even more cost-effective options like the AMD Ryzen 9 3900X or the Intel Core i9 9900K. Being able to get almost the same performance from a less expensive CPU allows you the freedom to add more RAM, faster storage, etc. which overall should make for a better experience in Photoshop than dumping all of your budget into a Threadripper or X-series CPU.

While this may not be an exciting battle between Intel and AMD, there is a very interesting side note to be aware of. Since Photoshop is a relatively lightly threaded application, it is a decent metric for many of the "random" tasks you do in most applications. Things like opening and saving projects, navigating around the UI, and other similar tasks tend to use only one or two cores. So even if you don't care about Photoshop at all, these results can give you a rough idea of how "snappy" many applications may feel with these processors. This is not always the case of course, but as far as a generic rule of thumb goes, it shouldn't be too far off.

Keep in mind that the benchmark results in this article are strictly for Photoshop and the relative performance will vary widely between different applications. If your workflow includes other software packages (we have similar articles for Photoshop, Lightroom Classic, Premiere Pro, After Effects, DaVinci Resolve, and many others), you need to consider how the processor will perform in all those applications. Be sure to check our list of Hardware Articles to keep up to date on how all of these software packages perform with the latest CPUs.
