DaVinci Resolve 14 CPU Performance: Skylake-X vs Threadripper

Written on October 13, 2017 by Matt Bach
Share:

Introduction

For a number of years, we have focused our video editing testing around Premiere Pro and After Effects, but we have received a large number of requests to include DaVinci Resolve as well. Resolve has actually been on our list for a while now, but since Resolve 14 was supposed to make fundamental changes to how the software runs we decided to hold off our testing until it was available. The launch of Resolve 14 dragged on longer than we expected, but it finally came out of beta about a month ago and we were able to begin our testing.

Today, we have published our first two articles for DaVinci Resolve. This article will be looking at how performance changes with different models of CPUs while out other article will be looking at GPU scaling performance with 1-4 NVIDIA Titan Xp video cards. There is quite a bit more we want to test, but this is an excellent start and will allow DaVinci Resolve users to give us feedback on our test process that we can leverage in future articles. Plus, we wanted to get these articles up before we left for the NAB Show in New York next week (Oct 17-18, 2017). Come visit us at booth N570 in the "Post + Production Pavilion" of Hall 3B if you happen to be attending!

There is a lot we could (and want to) look at in DaVinci Resolve, but today we will be focusing on performance while exporting and more importantly FPS while grading in the color panel. Our testing includes 4K RED, H.264, ProRes 422, and DNxHR HQ footage as well as 6K and 8K RED footage. If you would rather skip over our analysis of the individual benchmarks, feel free to jump right to the conclusion section.

Test Setup

Similar to most other post production software, DaVinci Resolve should benefit from having a CPU with a relatively high core count. In this article, we will be looking at a range of Intel Core i7/i9 Skylake-X CPUs with between 8 and 18 cores as well as the 12 and 16 core AMD Threadripper CPUs. Depending on the results we find, we may expand our testing in the future to include the new Intel Coffee Lake 6 core CPUs or even dual Xeon configurations.

While our GPU scaling analysis article found that multiple video cards really only make a difference when using things like temporal noise reduction, we went ahead and used three NVIDIA Titan Xp video cards for our testing. Most of our results should be roughly identical to what we would get with just a single GPU, but we feel it is a good idea to ensure we are not bottlenecked by the GPU since we are comparing CPU performance in this article. For users of the free edition of DaVinci Resolve, this does mean that almost everything short of the color grading "torture" test should directly apply to you even though the free edition only supports a single GPU.

Before getting into our testing, we want to point out that while our test platforms are using a single storage drive, that is not actually what we would typically recommend to our customers. Normally we would recommend having a SSD/NVMe for your OS and programs and a dedicated drive or multiple drives for your media. However, this is in large part for capacity and organizational purposes and should not have any impact on our results so we opted to use a single drive to cut down on the number of testing variables.

Most of the media we will be using is available from the Sample R3D files. However, there were two special things we did. First was to transcode the 4K RED footage to a number of other popular codecs we wanted to test. The second was that we increased the project FPS to 60 for our color grading tests regardless of the original media FPS. Since many of our CPU/GPU combinations were able to easily play back our test footage at ~24 FPS, this was a relatively easy way to increase the spread and accuracy of our results.

4K

EPIC DRAGON
3840x2160
REDCODE 11:1

Transcoded to:

H.264 .MP4
ProRes 422 .MOV
DNxHR HQ 8-bit .MOV
RAW .TIFF

6K

WEAPON 6K
6144x3077
REDCODE 7:1

EPIC DRAGON
6144x3160
REDCODE 12:1

8K

WEAPON 8K S35
8192 x 3456
REDCODE 9:1

To test exporting we used a moderately complex timeline involving multiple clips, basic color grading, multicam footage, and various effects like crop, gaussian blur and cross dissolves. We do not yet have a video showing exactly our test timeline, but it is nearly identical to what we use in our Premiere Pro testing only without the logo and text overlay.

For our color grading tests, we applied three levels of correction which we called Basic, Advanced, and Torture:

Basic:

  • Single node adjustments

Advanced:

Torture:

  • All nodes from "Advanced"
  • Adds a single node of temporal noise reduction

Exported stills from our 4K testing are available for download if you wish to examine them in more detail.

Exporting

Performance while exporting is likely a secondary consideration for many users, but it is still an important factor to keep in mind. Color grading may be what Resolve is known for, but you still have to get that graded footage delivered after you are done working on it.

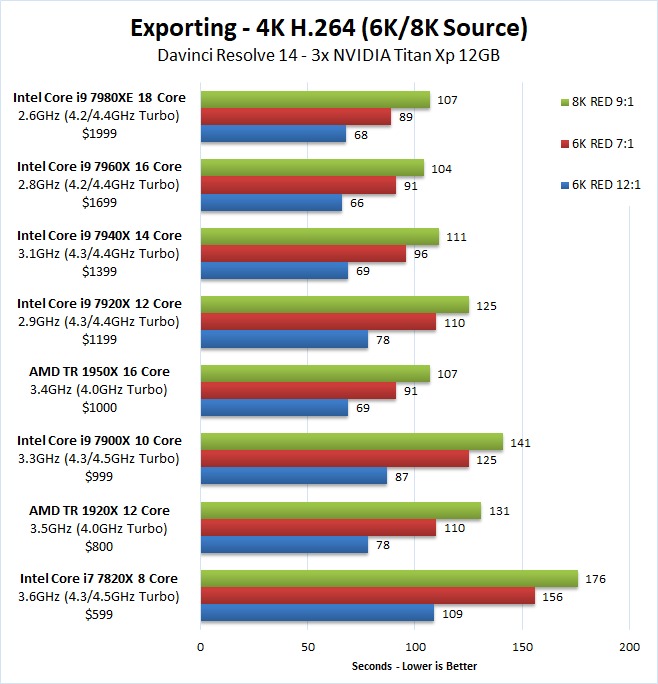

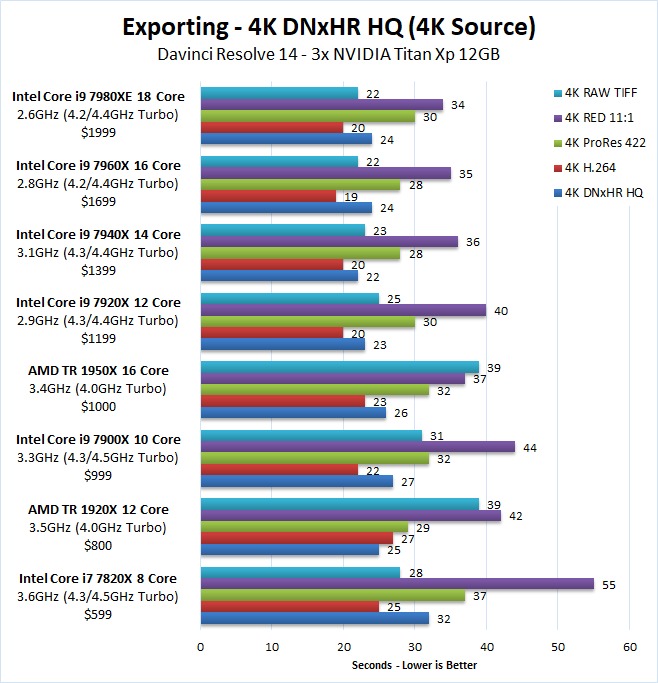

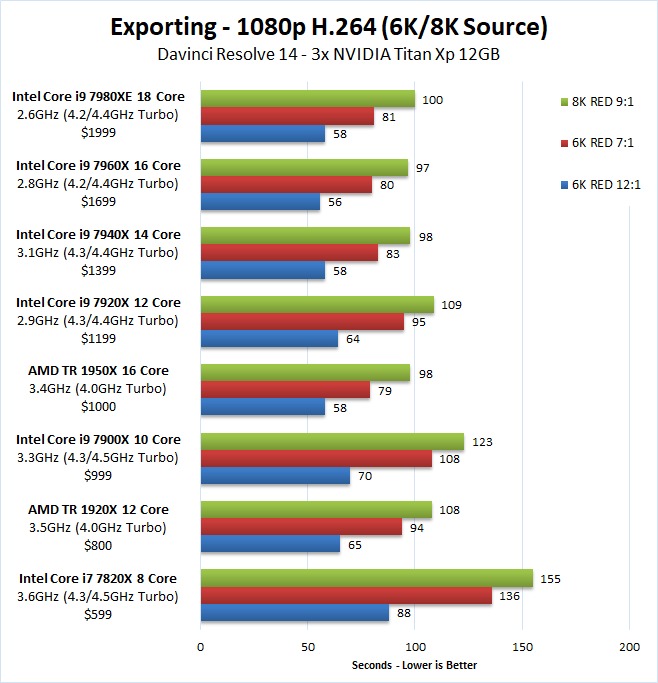

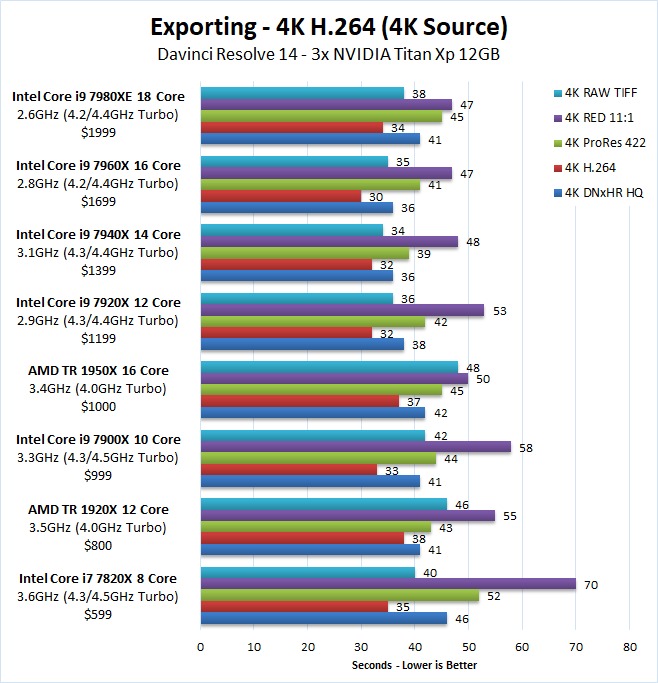

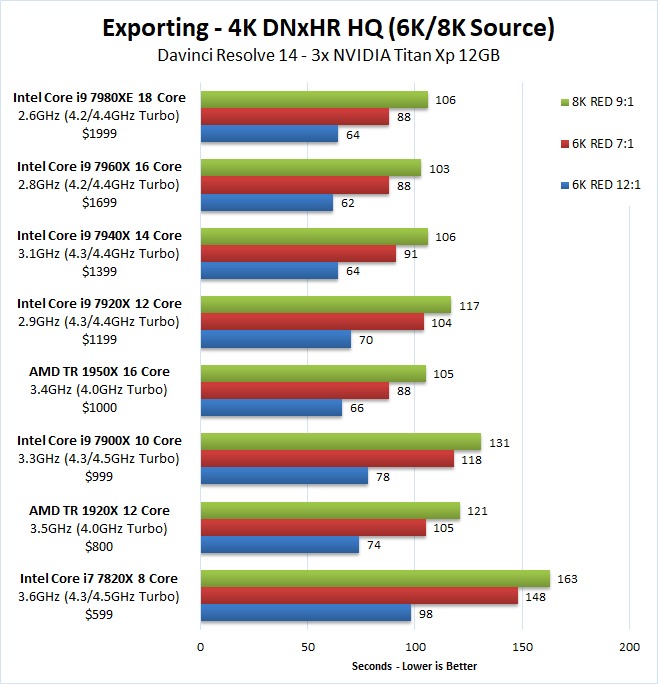

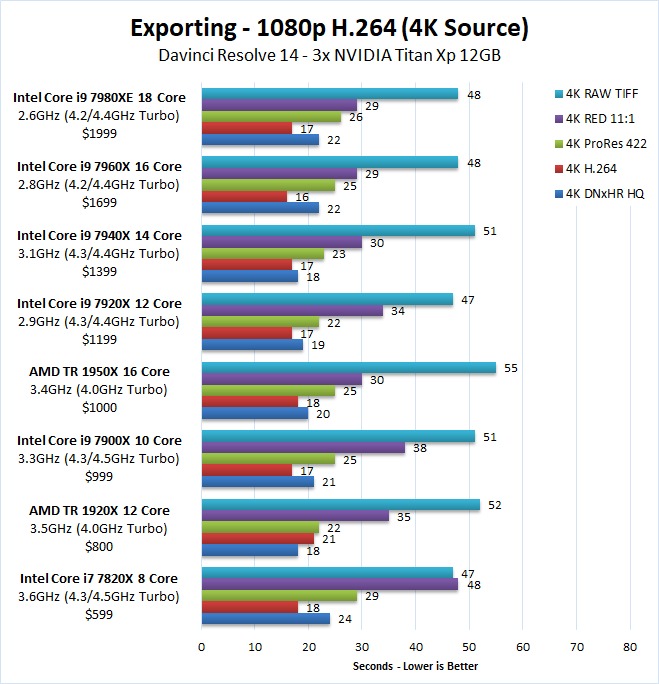

DaVinci Resolve 14 Exporting CPU Benchmark

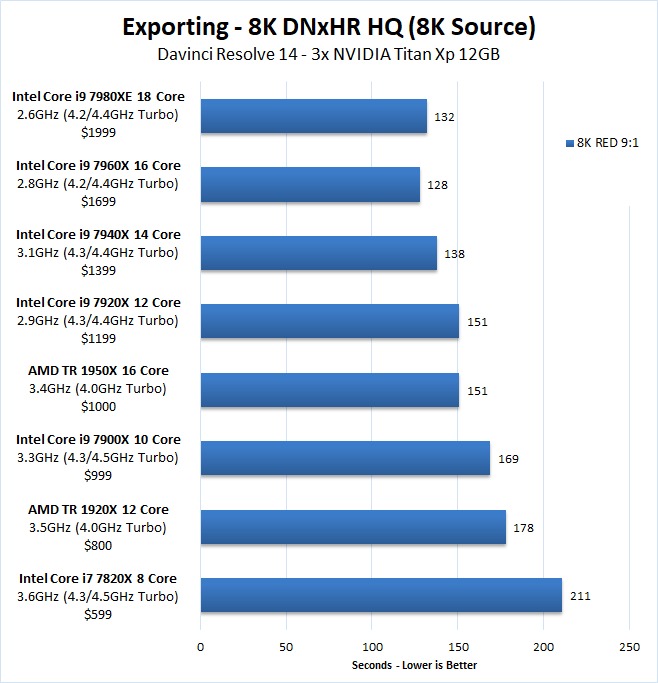

[+] Show Raw Results

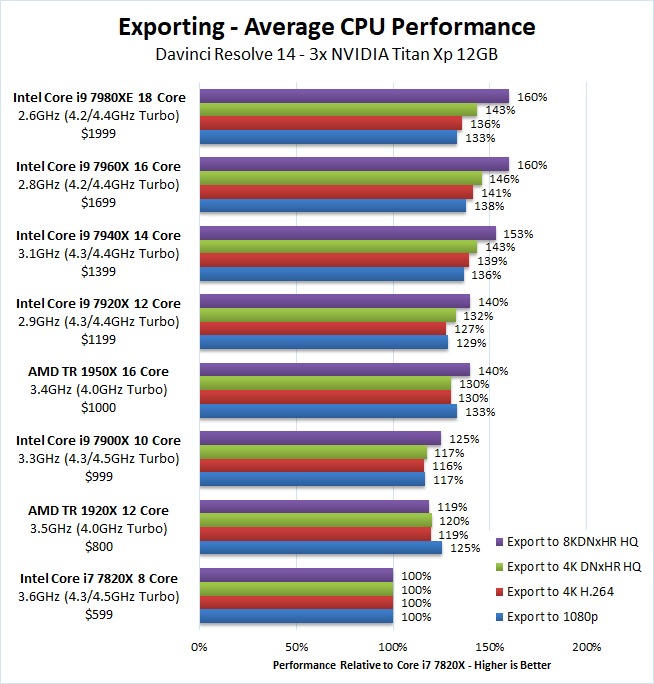

Our testing was fairly extensive with around 175 data points, so while the actual results in seconds are available if you click on the "Show Raw Results" link, what we will mostly be looking at is the average performance relative to the Core i7 7820X. If there is a specific type of footage you tend to work with, we highly recommend taking a look at the raw results to get a more accurate idea of what you may see rather than just the average.

Overall, the results are very interesting. AMD's Threadripper CPUs did very well for their price, typically beating the similarly priced Intel CPUs by a few percent. There were a few times AMD beat Intel by a larger margin, but there were also times when Intel was faster than AMD so all in all we would give a slight edge to AMD at that price bracket. For the best possible performance, however, Intel definitely holds the lead at the top end.

With the Intel Core i9 CPUs, the performance gains start to plateau the higher you get, but we saw some decent performance gains all the way up to the Core i9 7960X 16 core. Interestingly, the Core i9 7980XE 18 core was actually slower than the Core i9 7960X in almost every case so while there is an argument for having a high number of CPU cores, there is definitely an upper ceiling when exporting.

This is also an indication that a dual Xeon workstation may not be great for Resolve given the high core counts we now have available on a single CPU. Dual Xeon workstations allow for even higher core counts, but each individual core tends to run at a lower frequency. This, combined with the additional overhead associated with dual CPU setups, makes it very likely that a Core i9 7960X is going to be faster than any dual Xeon workstation no matter how much money you throw at it.

Color Grading

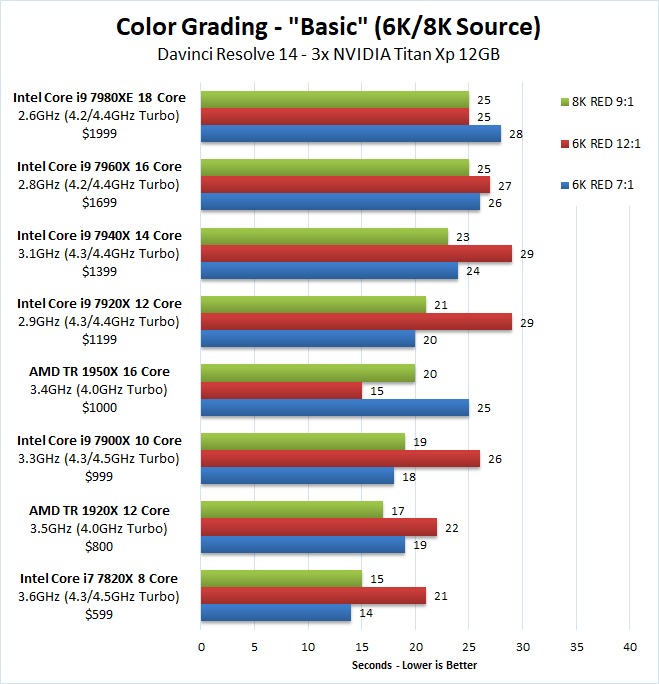

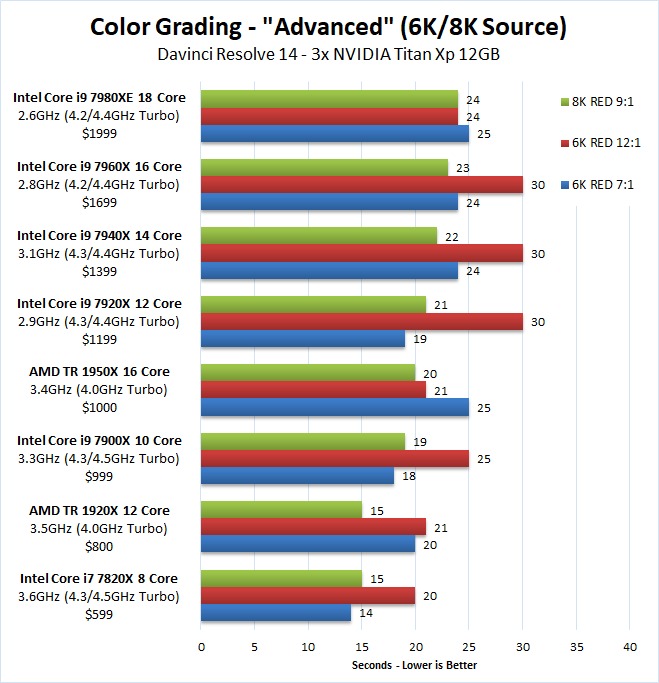

Color grading is really where we wanted to focus our efforts so we used three different levels of grading on our test footage. With each footage type and grading level, we watched the FPS counter and recorded the lowest result after giving about a 15 second "grace period" since the counter can sometimes take a bit to settle down. This test was repeated three times with Resolve being restarted in between tests. Across the three runs, we logged the highest of the minimum FPS results and used that in our results below.

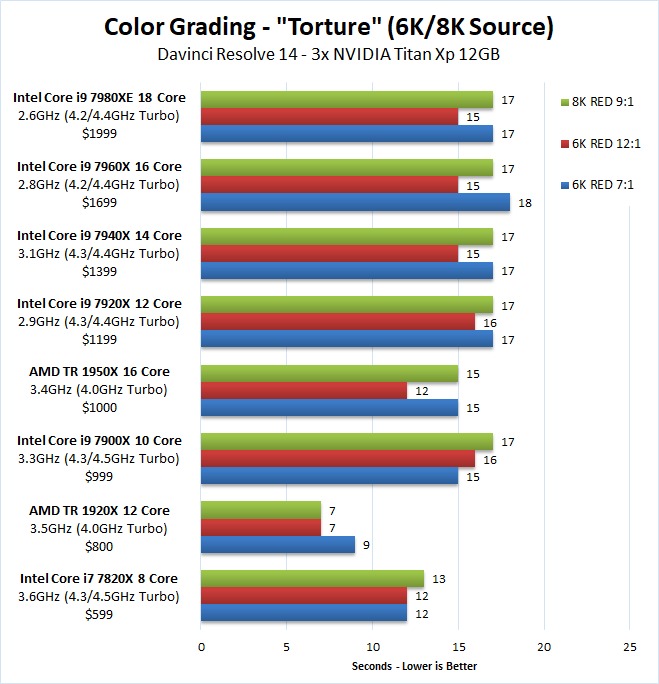

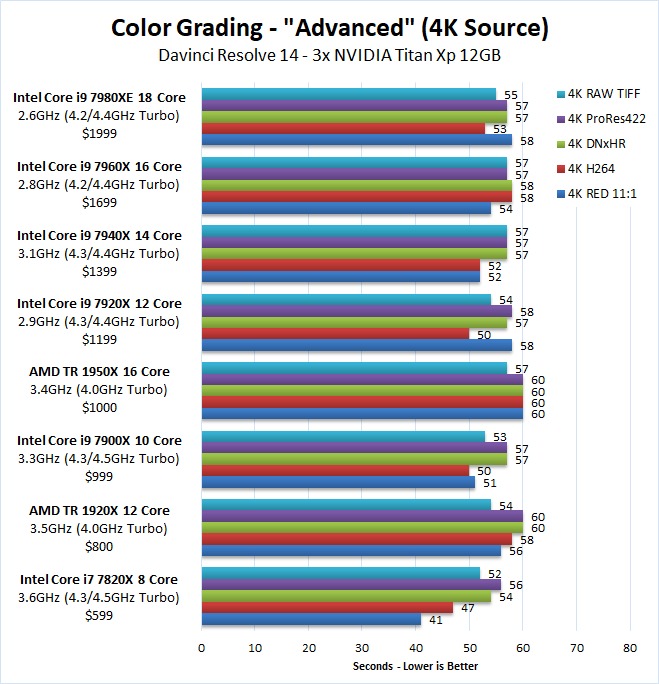

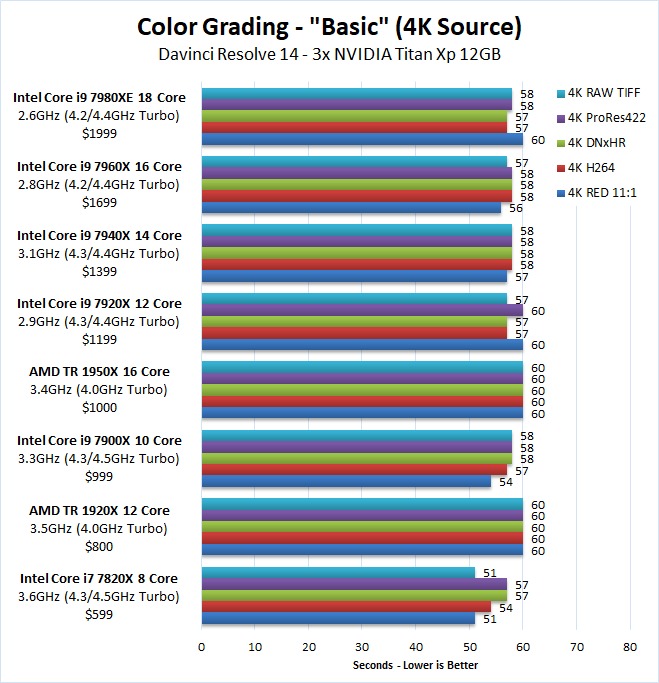

DaVinci Resolve Color Grading CPU performance benchmark

[+] Show Raw Results

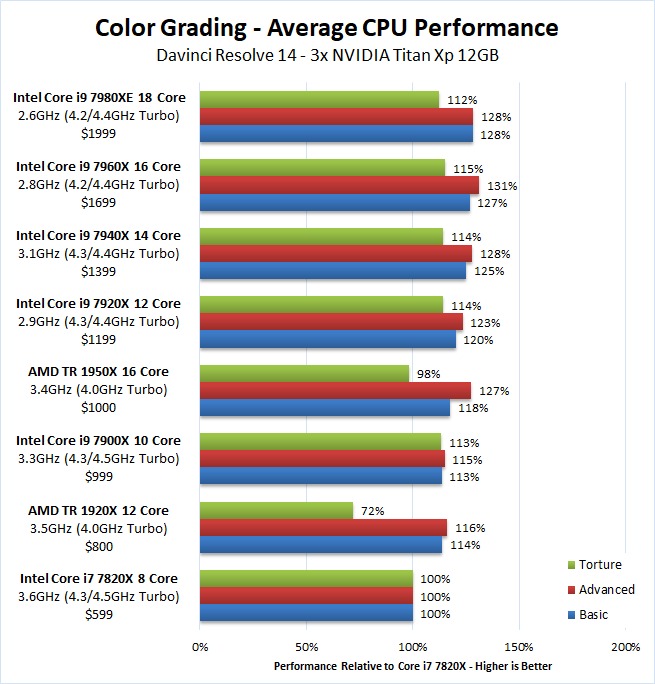

Just like in the previous section, the chart above is formatted based on the performance relative to the Core i7 7820X. If you want to see the raw results in seconds, just click on the "Show Raw Results" link.

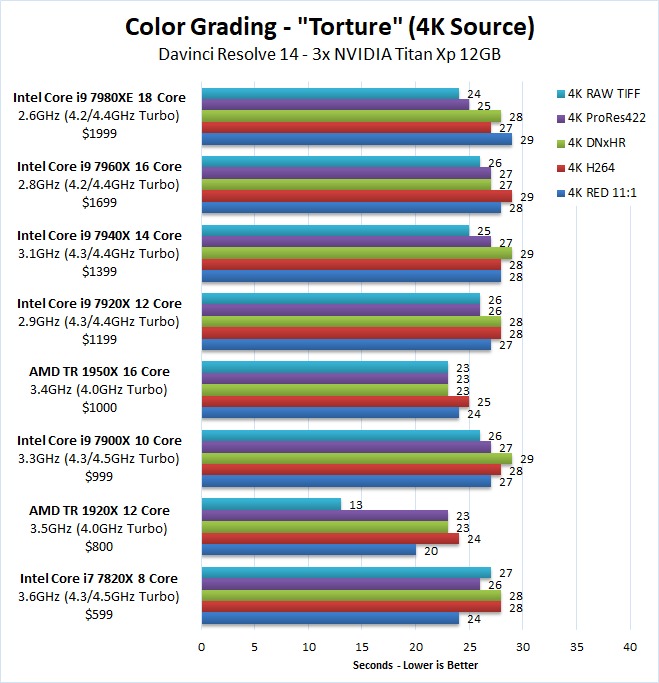

Starting with the AMD vs Intel question, the two AMD Threadripper CPUs did pretty well in our "basic" and "advanced" grading tests performing right in line or slightly ahead of the Intel CPUs. Where they really fell behind was in our "torture" test that included temporal noise reduction. In those tests, the AMD CPUs fell significantly behind even the Core i7 7820X 8 core CPU.

Overall, for our "basic" tests there was a small but consistent gain in performance when using a more powerful CPU. It isn't much in most cases, but it is there. On the "advanced" and "torture" tests, however, we definitely hit a performance wall right around the $1000 mark. As we noted, AMD falls behind in the "torture" test, but with the Intel CPUs you are only going to see minimal performance gains above the 14 core mark. There is still a small gain with the Core i9 7960X 16 core, but actually a performance drop with the Core i9 7980XE 18 core.

Conclusion

Looking at a broad overview of our testing and only separating based on whether we were exporting or color grading, we see the following performance from each CPU:

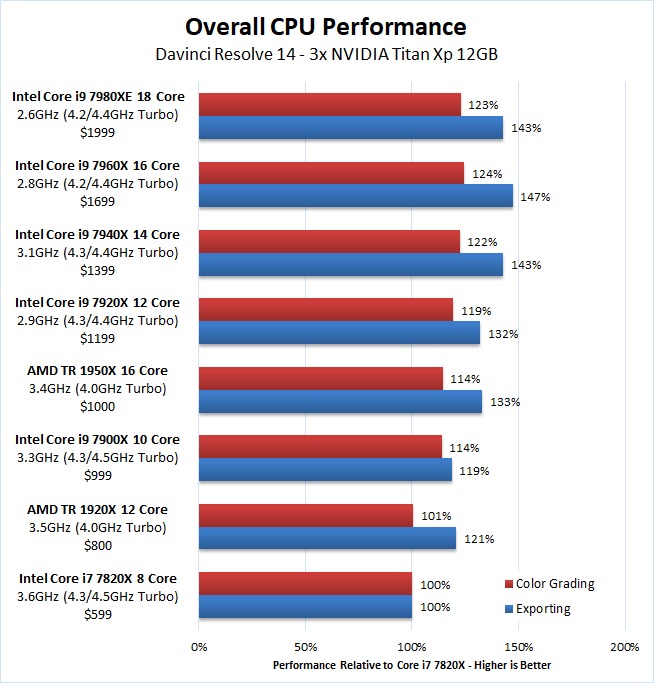

DaVinci Resolve CPU Benchmark overall performance

Overall, the results are pretty straight-forward. If you spend more money, you will likely get at least a small gain in performance. There are things not shown in this chart (such as the poor AMD performance when using temporal noise reduction) but this is about as simple as a performance chart gets. So really the question of Intel Skylake-X vs AMD Threadripper comes down to whether you use things like temporal noise reduction (TNR) and your overall budget. If you do us TNR, Intel is clearly the better choice. If you don't, then we would rate both Intel and AMD as being pretty roughly the same at similar price points. Intel has the performance lead with their more expensive Core i9 7940X and Core i9 7960X, however, so if your budget can afford it those CPUs are an excellent choice.

One point we want to make sure to call out is that we didn't see any benefit to using the Core i9 7980XE 18 core. In almost every case, the Core i9 7960X 16 core was actually faster. There may be an argument for the 7980XE from a multi-tasking standpoint, but even then having two more cores likely isn't worth the 4% drop in FPS when color grading.

As we noted in the Introduction, this is just the first of many articles looking at performance in DaVinci Resolve and there is still a lot we want to test including exporting all the color graded clips in addition to our test timeline, adding motion tracking, testing the performance impact of using a Decklink display out card, and much more. If you think there is something else we should include, we encourage you to let us know in the comments. Especially if you are able to send us an example project, we have found that active communication with the community to be incredibly valuable as it helps us shape our testing to match exactly the type of work that real users do every day.

DaVinci Resolve Workstations

Free Edition
Optimized

Configure

Designed with a single GPU for the free edition of DaVinci Resolve

Studio Edition
Optimized

Configure

Supports 1-3 GPUs for excellent color grading performance

Tags: DaVinci Resolve, Skylake-X, Threadripper, 7980XE, 7960X, 7940X, 7920X, 7900X, 7820X, 1950X, 1920X
Max Roberts

Great article! Glad to see some tests in DaVinci. I'd be curious to see where more mainstream CPUs like Coffee Lake and Ryzen 7 fall in the mix. This one is a longshot but I'd also be interested in seeing test's done in Assimilate Scratch, another color grading program, it's not a's popular... or as accessible as DaVinci so there aren't many articles or any really that look into how different systems affect performance.

Posted on 2017-10-14 15:25:42
Drew McFadyen

Would love to know what config is good if using Davinci resolve for heavy editing jobs. 14 is attracting quite a few people moving from premiere fcp...

Posted on 2017-10-23 02:32:01
Janis Lionel Huber

Would you say the 7820X is the sweet spot for price / performance?

Posted on 2017-10-24 08:18:47
Austin Travis

What I am waiting to see benchmarks from people who are content creators who live stream, specifically twitch and Youtube. When Playing a game in 2k/4k then running that game in Ultra or High settings while running capture software, then any additional software audio, chat servers, discord, browsers with multi tabs. It can really push a Computer especially when doing so 8-12 hours a day possibly 5 days a week, if your a professional content creator.
But does the recommended dual PC beat a single ultra core PC setup.

Posted on 2017-10-25 03:32:44
Streetguru

The extra cores on the 16 core systems would surely come in handy there, since you could use CPU affinity to force 8 cores to go to each program.

May be cheaper still to do a dual PC set up, say 2 Ryzen 5 1600s, one system only needs a basic GPU and a capture card in that set up compared to say a 1950X. Though the single system is simpler to use naturally.

Posted on 2017-10-25 19:51:30
Streetguru

Did you guys already do a review of Da Vinchi Resolve as a NLE? Is it up to snuff yet?

Did you cover Sony Vegas or is that next on the list?

How's actually scrub time with the systems? Does the RAID 0 NVME threadripper offers out of the box give it any advantages there in any Editing sofware?

Posted on 2017-10-25 19:40:49

To be honest, we are much more focused on the performance impact of different hardware than we are on the actual usability of the software itself. We are a bunch of hardware nerds, not professional video editors so while we can use Resolve/Premiere/Photoshop/etc. we probably are not the best resource for reviewing Resolve as an NLE. My impression is that it is much better than it used to be, but whether it can make it as a professional NLE in it's current state I can't really say.

Sony Vegas is actually pretty low on our list and might be something we will never get to. We're already pretty much fully booked for our testing and there is still so much we still want to do with the Adobe suite, Resolve, and a number of other applications that we see a bigger demand for from our customers. This might change and it will get back on our testing list at some point, but at the moment we have no plans to do much testing for Vegas.

RAID with NVME I don't think is necessary for 99.9% of users, at least from a speed standpoint. The performance of drives like the Samsung 960 Pro is already so high (3.5GB/s read!) that we actually haven't seen storage speed be a bottleneck in any of the software we test. Some things like Lidar image processing can benefit from a RAID of NVME, but for things like Resolve it shouldn't be necessary. To be completely honest, however, testing different storage configurations is still on our "to-do" list for Resolve, so I don't have any hard data backing this up. If you work with RED 8K 3:1 footage or 6K/8K RAW then it may make a difference, but even then I doubt that a single NVME drive won't be able to keep up.
