Introduction

This post presents scientific application performance testing on the new AMD Ryzen 7950X. I am impressed! Seven applications that are heavy parallel numerical compute workloads were tested. The 7950X outperformed the Ryzen 5950X by as much as 25-40%. For some of the applications it provided nearly 50% of the performance of the much larger and more expensive Threadripper Pro 5995WX 64-core processor. That's remarkable for a $700 CPU! The Ryzen 7950X is not in the same platform class as the Tr Pro but it is a respectable, budget friendly, numerical computing processor.

Note:

The Ryzen 7950X is using the Zen4 cores and the 5950X and Tr Pro 5995WX are using Zen3. I created docker containers with applications compiled from source that were optimized for Zen3 using AMD compilers and libraries. The currently available AMD compilers (also gcc) do not have Zen4 specific optimization paths. This is significant since the Ryzen 7000 CPUs have AVX512 vector units that have not been exploited by builds used in this testing. That means that Ryzen 7000 performance will only get better once compilers with full Zen4 support are available. I will be watching out for the new compiler releases and will re-optimize the applications and write up the results.

The Motherboard used during this testing had "auto-overclocking" features enabled by default.

In other testing we found this greatly increases CPU runtime temperatures. Please see the following for more info, AMD Ryzen 7950X: Impact of Precision Boost Overdrive (PBO) on Thermals and Content Creation Performance

I redid the testing with these features disabled. About have the results were unaffected and a few were degraded. The worst was approx. 9%

Results were mixed some actually faster and some slower with out the auto-overclock. [ old-result "to" new-result ]

HPL 972 to 928 GFLOP/s (approx 5% slower)
HPCG 7.43 to 7.43 GFLOP/s same
NAMD apoa1 0.166 to 0.158, f1atpase .526 to .505, stmv 2.29 to 2.18 day/ns (approx 5% faster -lower is better)
LAMMPS rhodo 2.287 to 2.115, Cu_u3 1.443 to 1.333, lj .968 to .946 step/s (2-8% slower)
NWChem 1245 to 1359 sec (approx 9% slower)
OpenFOAM 126 to 124 sec (slightly faster -lower is better)
WRF 25 to 24 min. (slightly faster -lower is better)

Test Systems

AMD Ryzen 7950X Test Platform

CPU AMD Ryzen 9 7950X 16 Core
CPU Cooler Noctua NH-U12A
Motherboard Gigabyte X670E AORUS MASTER
RAM 2x DDR5-4800 32GB (64GB total)

AMD Ryzen 5950X Test Platform

CPU AMD Ryzen 9 5950X 16 Core
CPU Cooler Noctua NH-U12A
Motherboard Gigabyte X570 AORUS ULTRA
RAM 4x DDR4-3200 16GB (64GB total)

AMD Threadripper Pro Test Platform

CPU AMD Threadripper PRO 5995WX 64 Core
CPU Cooler Noctua NH-U14S TR4-SP3
Motherboard Asus Pro WS WRX80E-SAGE SE WIFI
RAM 8x DDR4-3200 16GB ECC Reg. (128GB total)

Shared Hardware and Software

Video Card NVIDIA GeForce RTX 3080 10GB
Hard Drive Seagate Firecuda 530 4TB Gen4 M.2 SSD
Ubuntu 22.04 Linux
Docker 20.10.12
Spack 0.19.0.dev0
AMD AOCC 3.2.0 Compiler
AMD AOCL 3.2 Numerical libraries

Containerized Applications (recompiled and optimized)

HPL 2.3 High Performance Linpack
HPCG 3.1 High Performance Conjugate Gradient solver
NAMD 2.14 Molecular Dynamics
LAMMPS 20220623 Molecular Dynamics
NWChem 7.0 Quantum Chemistry
OpenFOAM 2012 Computational Fluid Dynamics
WRF 4.3 Weather Simulation

Application Containers Optimized for AMD

This testing is the first use of a (large) project I'm working on. I'm creating optimized application containers targeted to specific hardware platforms. AMD, Intel, and NVIDIA GPU. The applications used in this post are built from source using AMD AOCC compilers and AOCL libraries. I'm using a package build tool called "spack" for managing the build process and templates for multi-stage Dockerfiles. These containers will be available to the public on Docker Hub in the near future. All containers will have full application builds and include easy to use benchmark code. Full specification for the container builds will be hosted on GitHub. This is a long term project. I plan to maintain the container builds and automate the process as much as possible. In a few weeks I'll be writing posts on how this is being done.

Benchmarks

The following charts show the excellent numerical performance of the Ryzen 7950X in relation to the previous generation 5950X and current high-end Threadripper Pro 5995WX 64-core.

There are Spack specs listed that were used in the application build process and benchmark job execution lines from benchmark code for each package.

Note on GROMACS: I would have had gromacs benchmarks in this post but I had a mistake in my testing code. Gromacs writes result output on stderr rather than stdout. I only captured stdout, so no results, and I didn't catch the problem until analyzing the performance data.

HPL (Linpack)

specs: [[email protected]%[email protected]+openmp ^[email protected] threads=openmp arch=linux-None-zen3]

specs: [[email protected]%[email protected]+openmp ^[email protected] threads=openmp arch=linux-None-zen3]

Chart of NWChem benchmark performance of Ryzen 7950X

Notes:

This benchmark makes heavy use of floating point capability and is the ranking benchmark for the Top500 supercomputer list.
AVX512 should make a significant improvement in performance. I'll test that when the new compilers are released.
Nearly a tera-FLOP of fp64 performance from a $700 processors is impressive!

https://www.netlib.org/benchmark/hpl/

HPCG

specs: [[email protected]%[email protected]+openmp arch=linux-None-zen3 ^[email protected]]

mpirun --allow-run-as-root -np ${NUM_CORES} --map-by l3cache --mca btl self,vader -x OMP_NUM_THREADS=1 xhpcg

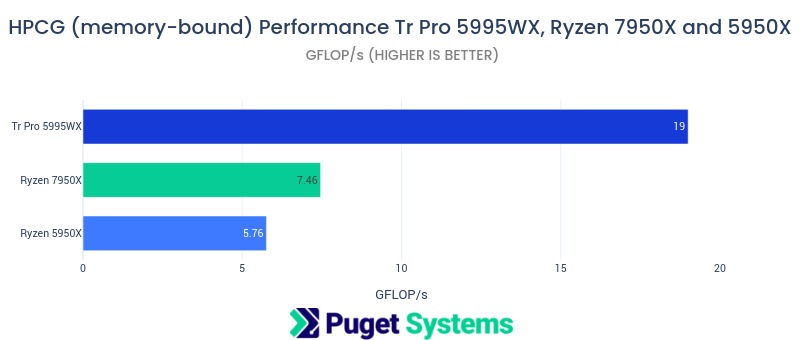

Chart of HPCG benchmark performance of Ryzen 7950X

Notes:

HPCG is a memory-bound application, typical of many engineering "solvers". It is the secondary ranking benchmark of the Top500 supercomputer list.
This job usually gives best performance at fewer than all cores. The Tr Pro has 8 memory channels and gave the best result with 16 cores being used. The Ryzen CPUs have 2 memory channels and best results were with 4 cores.

https://www.hpcg-benchmark.org/

NAMD

specs: [[email protected]%[email protected] fftw=amdfftw arch=linux-None-zen3 ^[email protected]]

namd2 +p${NUM_CORES} +setcpuaffinity +idlepoll ${JOB}/${JOB}.namd

Chart of NAMD benchmark performance of Ryzen 7950X

Notes:

NAMD scales well so it is surprising to see the 7950X performing so close to the 64 core Tr Pro.
NAMD like most molecular dynamics applications also has great GPU acceleration. Adding nearly any NVIDIA GPU would greatly improve performance. But, good CPU performance is also required to balance CPU resident code segments with the GPU. (NAMD 3 will be GPU resident so CPU will be less relevant)

ApoA1 benchmark (92,224 atoms, periodic, PME)
ATPase benchmark (327,506 atoms, periodic, PME)
STMV (virus) benchmark (1,066,628 atoms, periodic, PME)

LAMMPS

lammps@20220623%[email protected]+asphere+class2+granular~kim+kspace+manybody+molecule+mpiio+openmp+openmp-package+opt+replica+rigid build_type=Release arch=linux-None-zen3 ^[email protected] ^openmpi fabrics=auto

mpirun --allow-run-as-root -np ${NUM_CORES} --oversubscribe --use-hwthread-cpus --map-by hwthread --bind-to core lmp -var x ${SCALE} -var y ${SCALE} -var z ${SCALE} -sf omp -in in.${JOB}

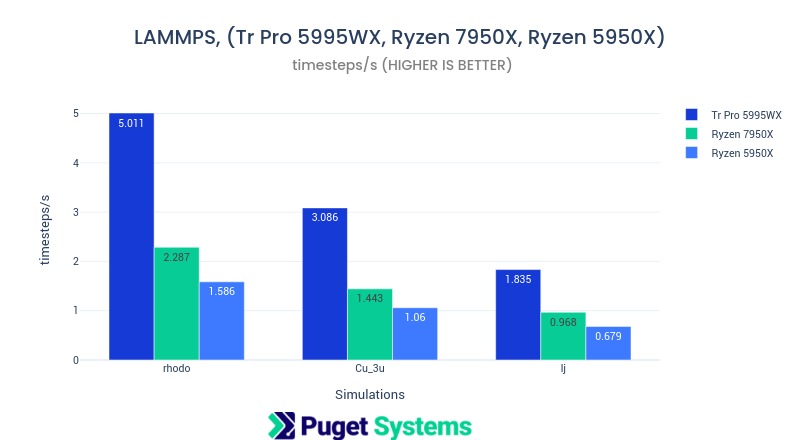

Chart of LAMMPS benchmark performance of Ryzen 7950X

Notes:

LAMMPS is another popular molecular dynamics application developed at Los Alamos National Lab.
There are MANY build options for LAMMPS. I feel like I got a well performing build. (I will test that theory when I do the Intel build.)
It looks like LAMMPS performance benefits from the 8 channel memory of the Tr Pro.

Rhodopsin model 32000 atoms
bulk Cu lattice 16384000 atoms
3d Lennard-Jones melt 55296000 atoms

https://download.lammps.org/tars/lammps-10Mar2021.tar.gz

NWChem

specs: [[email protected]%[email protected]+mpipr+openmp arch=linux-None-zen3 ^[email protected] threads=openmp ^[email protected] ^[email protected] ^[email protected] ^openmpi]

mpirun -np ${NUM_CORES} --map-by l3cache -x KMP_WARNINGS=0 -x OMP_NUM_THREADS=1 -x OMP_STACKSIZE="32M" nwchem ./c240_631gs.nw

Notes:

NWChem is a computational quantum chemistry application developed at Pacific Northwest National Lab. (I've had the pleasure of knowing several of the developers.)
This benchmark is 4 SCF iterations as part of a DFT energy calculation on a C240 fullerene.

https://www.nwchem-sw.org/index-php/Benchmarks.html

OpenFOAM

specs: [openfoam@2012%[email protected] arch=linux-None-zen3 ^[email protected] ^openmpi]

mpirun --allow-run-as-root -np ${NUM_CORES} --map-by core simpleFoam -parallel

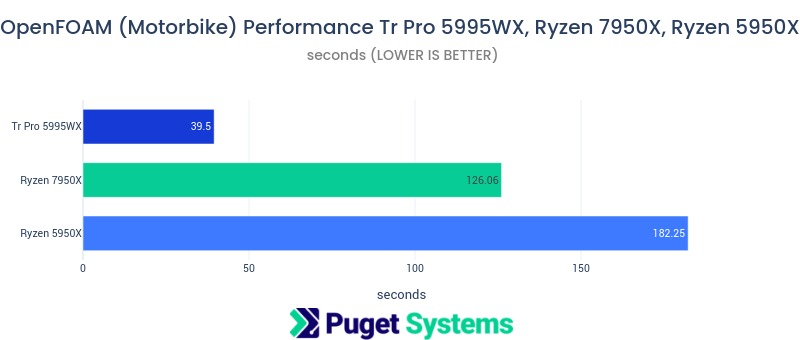

Chart of OpenFOAM benchmark performance of Ryzen 7950X

Notes:

OpenFOAM is a Computational fluid Dynamics application.
The benchmark is a simulation of the airflow around a Motorbike for 100 iterations with 2 million cells.

https://openfoamwiki.net/index.php/Benchmarks

WRF

specs: [[email protected]%[email protected] build_type=dm+sm arch=linux-None-zen3 ^hdf5+fortran ^jemalloc ^netcdf-c ^netcdf-fortran ^openmpi+cxx]

OMP_NUM_THREADS=${NUM_OMP} mpirun -np ${NUM_MPI} --allow-run-as-root --map-by ppr:4:l3cache $wrf_exe

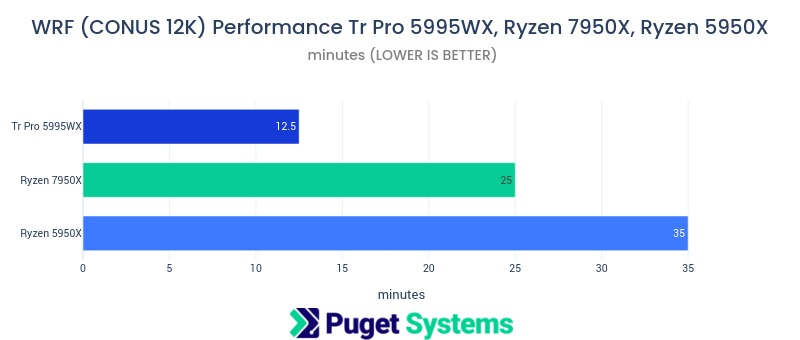

Chart of WRF benchmark performance of Ryzen 7950X

Notes:

WRF Weather Research and Forecast software developed at the National Center for Atmospheric Research (NCAR)
This benchmark is a weather simulation at 12 kilometer resolution of the continental US.
WRF was the only application that benefited from using MPI ranks together with openMP thread. The other application did best with either MPI or openMP alone.

https://www2.mmm.ucar.edu/wrf/bench/conus12km_v3911/bench_12km.tar.bz2

Conclusions

Performance for numerical computing of the Ryzen 7950X coupled with the fast DDR5 memory sits 25-40% above it's predecessor the 5950X. It even makes a good showing against the current top of the line Threadripper Pro 5995WX 64 core processor.
The Ryzen 7950X is the first CPU with AMDs new Zen4 architecture. That architecture includes AVX512 vector units that were not exploited in this testing. Recompiling the applications with compilers supporting Zen4 should only improve the results that were presented, maybe significantly.
The utility of the performance optimized container project I'm working on was quite satisfying. Compiling the tested application from source with AMD specific optimization using AMD AOCC and AOCL gave a nice performance improvement over "standard" builds of these applications. I didn't compare this improvement in this post but will write more about that in future posts.

Happy computing! –dbk @dbkinghorn
