Agisoft Metashape 1.7.0 vs 1.6.5 Performance - Featuring Radeon RX 6900 XT

Written on January 8, 2021 by William George
Share:

TL;DR: Performance Differences in Metashape 1.7.0 vs 1.6.5

In version 1.7.0, Agisoft appears to have fixed whatever was holding back the performance of AMD's Radeon video cards. Now, both the GeForce RTX 30 Series and Radeon RX 6000 Series cards give great results, and overall the processing times are slightly better compared to 1.6.5 (except for in our smallest project, which was a little slower). If you are using an AMD video card, you will definitely want to update to the newest version - and unless you work exclusively on small jobs with fewer than 50 photos, NVIDIA based systems will see a boost with Metashape 1.7.0 as well.

Introduction

We just published a big GPU roundup for Metashape 1.6.5, covering all of the GeForce RTX 30 Series and Radeon RX 6000 Series video cards that have been released so far, but while we were waiting on a 6900 XT to test, the folks at Agisoft launched a new version of Metashape: 1.7.0. It had been in beta for a while, but was fully released on New Years Eve. So, after publishing our 1.6.5 results, we turned around and immediately began testing the new version to see if performance has changed. Read on to see what we discovered!

Agisoft Metashape Photogrammetry Performance with GeForce RTX 30 Series vs AMD Radeon RX 6000 Series

Unfortunately, we had to send back the samples of AMD's Radeon RX 6800 and 6800 XT we had borrowed for our previous round of testing. Because of how significant the results we found with the Radeon RX 6900 XT were, though, we wanted to get this article out to the public as quickly as possible - so we only tested on NVIDIA's GeForce RTX 3080 and 3090 (closest models in price to the 6900 XT).

Metashape Workstations

Puget Systems offers a range of powerful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!

Test Setup

Here are the specifications of the system we used for our Metashape testing, with components selected to minimize other bottlenecks:

Test Platform
CPU AMD Ryzen 9 5950X *
CPU Cooler Noctua NH-U12S
Motherboard Gigabyte X570 AORUS ULTRA
RAM 4x DDR4-3200 16GB (64GB total)
Video Card AMD Radeon RX 6900 XT 16GB
NVIDIA GeForce RTX 3090 24GB
NVIDIA GeForce RTX 3080 10GB
Hard Drive Samsung 960 Pro 1TB
Software Windows 10 Pro 64-bit
Metashape Professional 1.6.5 & 1.7.0

* Please note that we ran AMD's Ryzen 9 5950X processor at stock settings for this testing, but we have found that even better performance is available from this CPU (and other high core count models) by turning SMT off.

To test each video card, we used our in-house Metashape benchmark - both the standard and extended versions. Each was run twice per GPU, and the best results were included in the charts below. Here is some basic info about the image sets in these projects:

  • Rock Model - 36 photos at 20 megapixels each
  • School Map - 51 photos at 18 megapixels each
  • School Model - 439 photos at 18 megapixels each
  • Park Map - 792 photos at 18 megapixels each

We make these benchmarks publicly available under the Creative Commons BY-ND license, so if you use Metashape Professional (or get the 30-day trial) you can download them from our website and compare your system's performance with the results shown here.

Benchmark Results

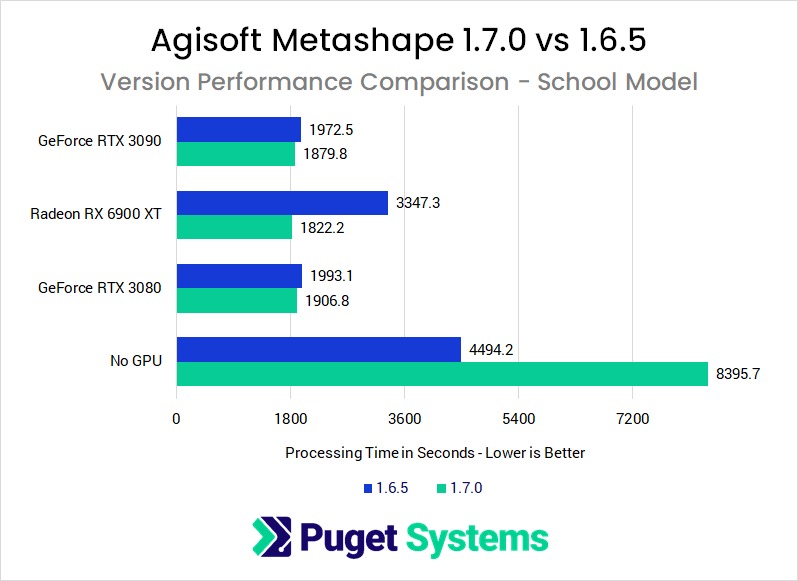

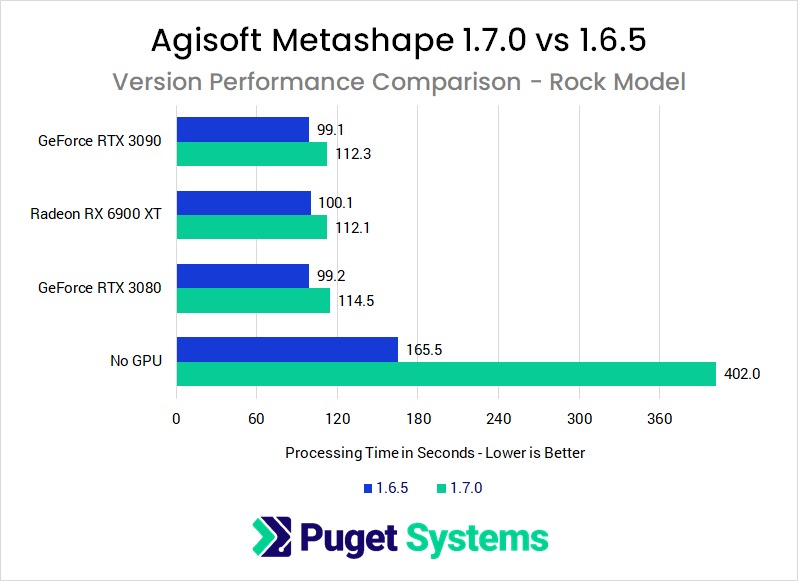

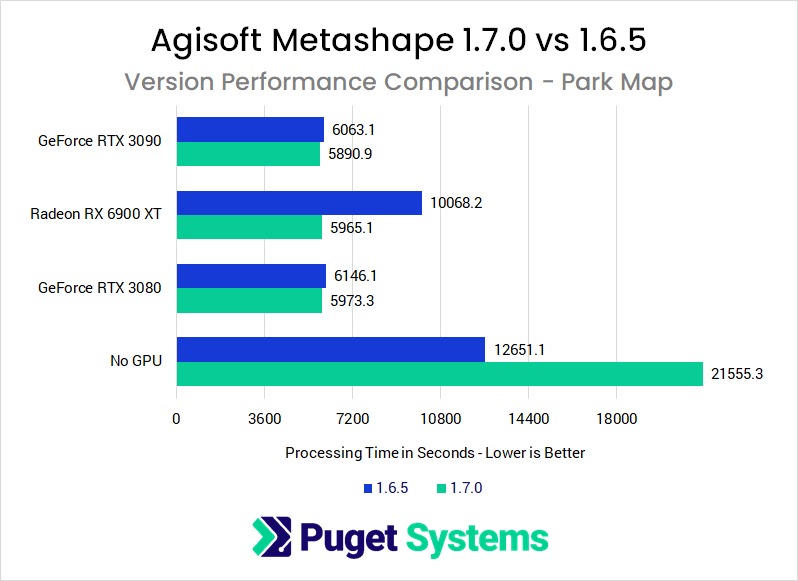

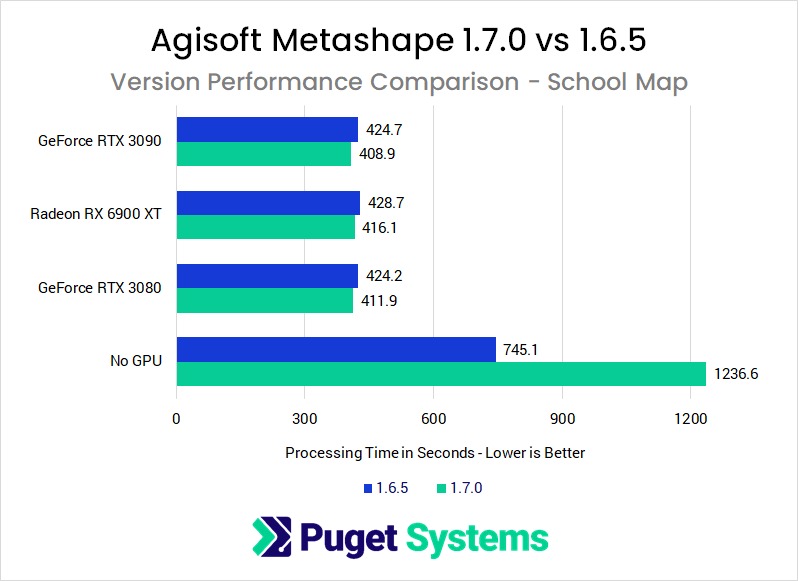

Here is a gallery of charts showing the overall per-project performance of the cards we tested on each version of Metashape, with the older 1.6.5 shown in blue and the recently-launched 1.7.0 in green. Times are in seconds, so lower numbers / shorted bars are better:

Performance Analysis

In a recent roundup article, mentioned in the intro, our conclusion had been that AMD video cards were not well suited to Metashape 1.6.5 - in particular, due to poor performance in the Build Depth Maps step. We suggested that "better optimization of Metashape for AMD cards, especially in the Build Depth Maps step, might be able to improve their performance in the future" - and that is exactly what has happened in version 1.7.0!

Processing times on AMD's Radeon RX 6900 XT are now right in line with the NVIDIA GeForce RTX 3080 and 3090, which are priced on either side of the Radeon model, and in three of the four image sets the processing times for those cards came down slightly as well. Only on our smallest test, the 36 image Rock Model, was performance in the new version of Metashape slower than before.

Oddly, processing times without a dedicated GPU being used (which can be achieved by unselecting all GPUs in Preferences) were *far* slower in 1.7.0 than in version 1.6.5 - but this application has always been painfully slow without a video card, so we would never have recommended running it that way to begin with.

For those who are interested in further details, here is a table showing the processing times of individual steps within each project:

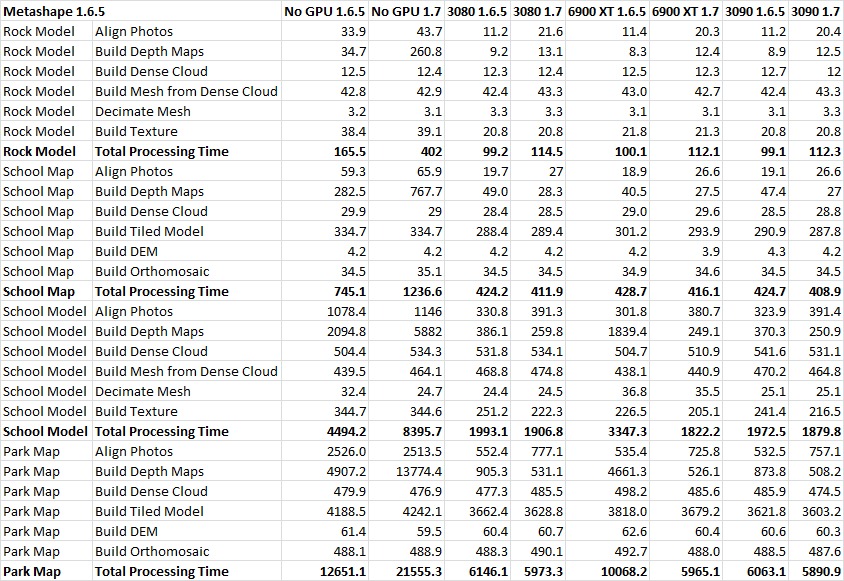

Agisoft Metashape Version 1.7.0 vs 1.6.5 Performance Comparison Table

Table showing processing time per step (lower is better)

Looking over the table above, we can highlight a few interesting differences between how version 1.7.0 and the older 1.6.5 perform:

  1. The Align Photos step takes longer now than it used to, by a rather large margin. We are using the same project files and Python script with both versions, so no parameters were changed as far as we can tell. The loss of performance here is more than made up for in the next step, though, so its not a big deal.
  2. With exception of the small Rock Model project, the Build Depth Maps step is somewhat faster on NVIDIA cards - and much faster on AMD. This is where AMD cards had been getting stuck in 1.6.5, so seeing such a dramatic improvement is fantastic!
  3. There is about a 10% drop in processing times for the Build Texture step on the School Model, but the smaller Rock Model again appears to be an outlier.
  4. The Build Dense Cloud, Mesh, Tiled Model, DEM, and Orthomosaic steps all seem largely unchanged. Some of these seemed to be entirely CPU based in previous versions, and that doesn't appear to have been altered in this release.

Is NVIDIA's GeForce RTX 30 Series Good for Agisoft Metashape 1.7.0?

Yes - as was the case in version 1.6.5, the GeForce RTX 30 Series cards we tested did quite well in Metashape 1.7.0. We weren't able to test the lower-end 3070 and 3060 Ti for this article, or multi-GPU performance, due to time constraints - but from what we can tell, all of these cards should be just fine for Metashape. It is also still likely that pairing up two of these cards increases processing speed even further, by around 5-10%, such that dual RTX 3070 cards would outperform a single RTX 3090 for less money!

Is AMD's Radeon RX 6000 Series Good for Agisoft Metashape 1.7.0?

Yes - performance on these cards is dramatically improved from version 1.6.5, and they should now be in line with comparably priced NVIDIA cards. We no longer have a Radeon RX 6800 or 6800 XT on hand to test, but the 6900 XT's result should be emblematic of what you can expect with the RX 6000 Series as a whole. We still do not plan to carry them here at Puget Systems, due to poor experiences in the past with driver stability, but if you are an AMD fan there is now no reason not to get one for use in Metashape 1.7.0!

As always, please keep in mind that these results are strictly for photogrammetry in Agisoft Metashape. If you have performance concerns for other software in your workflow, we highly recommend checking out our Hardware Articles (you can filter by "Video Card") for the latest information on how a wide range of programs perform with various GPUs, CPUs, and other hardware.

Photogrammetry Workstations

Puget Systems offers a range of poweful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!
Tags: Hardware Acceleration, NVIDIA, RTX 3080, GPU Acceleration, GPU, Video Card, Metashape, Agisoft, photogrammetry, AMD, Radeon, GeForce, Radeon RX 6900 XT, RTX 3090
Michael Freeman

How do the Intel Xeon Processors fit in with this. I am looking to get a computer through my work but we are stuck with Xeons. It is better to go with the Xeon W-2295 (18C, 3.0GHz 4.6GHz Turbo HT 24.75MB (165W) DDR4-2933) or to use one with fewer cores?

Posted on 2021-03-18 13:49:04

Oof, hmm - unfortunately, many of the Xeons are based on relatively old tech at this point. The W-2295 you mentioned is basically a workstation version of the Core X i9 10980XE, which has not done very well in our Metashape benchmarks: https://www.pugetsystems.co...

Granted, with other CPUs of similar core count we have found that disabling Hyperthreading (or SMT on AMD processors) helps Metashape a fair bit, and I don't remember if I've tried that with the 10980XE specifically... but it would likely give it at least a small boost in this application. However, you don't need this many cores for MS - and something newer with higher clock speeds would do better. I am not entirely up to speed on the latest Xeon options (especially in the lower core count areas) but if you can find the ones that are the equivalent of the more mainstream Core processors like the i9 10900K that should give pretty good Metashape performance. I think that might be the Xeon E3 series? Keep in mind that you will also want to be able to get plenty of system RAM, depending on how large of projects you work with, and a decent video card and fast SSD.

Posted on 2021-03-18 16:50:48
