Cinema 4D CPU Rendering Comparison: New 14, 16, and 18-core Skylake-X Processors

Written on September 25, 2017 by William George


Cinema 4D, from Maxon, is widely used for creating advanced 3D graphics. When rendering those graphics, the performance of the central processor (CPU) in a computer is of paramount importance. CPU-based rendering generally scales well with both clock speed and core count, but those specifications cannot be directly compared across different brand or generations of processor. Here at Puget Systems we do real-world testing to ensure we provide our customers with the right computer for their needs.

Intel Core i9 X-series CPU

Intel has just released a trio of new Core X series processors, with higher core counts than anything they have offered in this line to date: the Core i9 7940X, 7960X, and 7980XE - with 14, 16, and 18 cores respectively. We ran these chips through Cinebench to see how they perform with rendering in Cinema 4D. We had recently put out an article on this same software that covered a wider range of processors, and at the time AMD's Threadripper CPUs were found to be the fastest single-CPU option. This time we will focus just on the Core X series in comparison to Threadripper, to see if the new models can take the performance title back for Intel. For reference we will also include a dual Xeon setup, to show how these single chip options compare to a dual CPU configuration.

Test Setup

To see how these new CPUs perform in Cinema 4D, we ran Cinebench R15 on the following configurations:

The main focus here is on the three new Core X (formerly code named Skylake X) processors, and specifically how they compare to AMD's Threadripper models. In our last round of testing we found that the 16-core 1950X took the lead in single-CPU performance with Cinema 4D, as well as many other CPU-based rendering engines. Here is some background on how we will test and what to look for in the charts that follow.

The results presented below are from Cinebench R15, which is a free benchmark released by Maxon. It is designed to test CPU and GPU performance within Cinema 4D without requiring a full installation of that software. Since the focus of this article is on CPU performance we only ran the CPU portion of Cinebench, which gives two results. The first is single-core performance and is a decent indicator of how well a processor will do with purely single-threaded applications. The second result is for multi-core performance, which is what actually interests us for this article. This is a perfect example of what to expect with rendering and other heavily-threaded applications, which is where these high core count CPUs should shine. As such, this is the only result we are looking at today.

It is also worth noting that there are some differences in the amount and speed of RAM across the various test platforms. We prefer to use the speed of memory that each CPU is rated for, according to its manufacturer. For the current crop of Core X and Threadripper processors that is DDR4-2666, while the older Xeon uses slightly slower 2400MHz memory. Some of these platforms could be run with even faster RAM modules, but that is pushing the memory controller built into the CPU past its rated speed - overclocking it, effectively. That may lead to slightly increased performance but we have also found it to lead to stability issues and higher rates of memory failure. For that reason we stick with the manufacturer specs when it comes to selecting RAM for our systems.

Benchmark Results

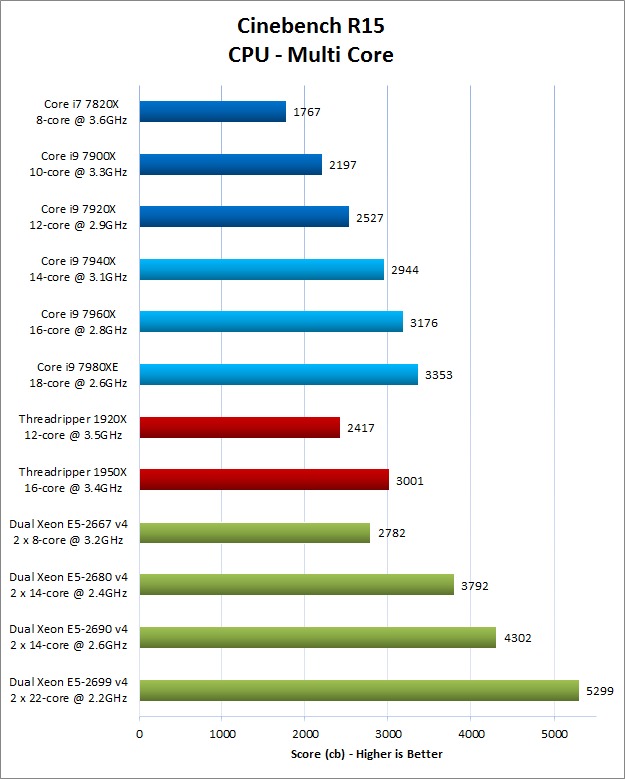

Here are the multi-core results for the various CPUs we tested in Cinebench R15. The new Core i9 processors are shown in light blue:

Cinebench R15 Multi Core Results with Skylake X

You can really see the impact of the varying core count between these processors. The upper-end dual Xeons, with a total of 28-44 total cores, definitely win out - but those are also much more expensive systems. Among the single CPU workstations, Intel's new 16- and 18-core CPUs take the lead over AMD's Threadripper... but even those come at a higher price.

It is also worth noting that AMD and Intel both have server-class processors with even more cores as well: up to 32 on AMD's EPYC and up to 28 from Intel's latest Xeon Platinum line. With their focus on the multi-CPU server segment those may not come into play for Cinema 4D, but if a manufacturer puts out a single-socket workstation motherboard that is compatible with either of those platforms then they may be worth a look.


As shown above, the tables have turned since our last Cinema 4D performance article. Intel took back the lead, but their new Core X processors are also substantially more expensive than AMD's Threadripper. If you want the absolute fastest single-CPU rendering speeds then go for the i9 7980XE - but if you want the best value, the 1950X has very strong performance while costing $1000 less.

Cinema 4D Workstations

Puget Systems offers a range of poweful and reliable systems that are tailor-made for your unique workflow.

Configure a System!

Labs Consultation Service

Our Labs team is available to provide in-depth hardware recommendations based on your workflow.

Find Out More!
Tags: CPU, Rendering, Cinema, 4D, Maxon, Cinebench, Performance, Processor, Intel, AMD, Core, i9, Threadripper, Skylake, X

Great work as always. Much appreciated. - It would've been interesting to know the single core benchmark values as well. I take these as an indicator on other apps as well.

Posted on 2017-10-03 10:41:15

Thank you :)

Posted on 2017-10-03 16:35:28
James B

Great review. However I think you ignore one important feature, power consumption at stock speeds. How much more power do the Intel processors use as compared with the AMD 1950x?

Posted on 2017-11-29 20:40:02

I didn't conduct power draw testing, but looking at AnandTech it appears that the Threadripper processors (both 1920X and 1950X, interestingly) fall between the Core i9 7960X and 7980XE. Those chips are about 13W below and above the TR chips. The graph on this page shows that well:


Given that the whole spread from the i9 7900X through the 7980XE (including the TR chips) is a 41 watt range under load (from 149 to 190W), honestly this isn't a very big deal. Lets say you had a system that is under full load for 10 hours a day, 5 days a week, and you pay 15 cents per KWh. That would be a 6 cent per day difference in power consumption, or over a year about $15. That is peanuts compared to the cost of the computer itself. Even if you bring that up to 24/7 operation, you are only looking at $54 a year... and the difference between a high-end Core i9 and a Threadripper is substantially less.

Posted on 2017-11-29 21:28:33
Beta Zoid

Hi William. Please confirm which CPU is better for VFX! E5-2667 v4 or E5-2687w v4

Posted on 2018-04-23 13:00:28

Generally speaking, the E5-2687W v4 is a better CPU. It has 50% more cores, while only sacrificing 0.2GHz base clock, 0.3GHz all-core turbo, and 0.1GHz single-core turbo. In purely single-threaded workloads, the 2667 v4 would actually be a hair faster... but if that is your focus, there are even better CPUs for lower prices with higher single-core turbo boost speeds. In heavily threaded workloads, the 50% more cores should outperform the 10% lower all-core turbo clock.

The biggest downside to the 2687W v4 is the higher power consumption and heat output (160W vs 135W). You'll want to make sure that you have appropriate cooling in place for that.

Posted on 2018-04-23 15:24:31
Beta Zoid

Hey George, cant thank you enough for your absolutely brilliant answer buddy. I was beginning to pull my hair out thinking I wished I bought the dual 2667v4's instead of my 2687w v4's. Just to confirm that I also invested in a pair 3D vapour cooler heatsinks for the 2687w's and get approximately 27°c idle temps and maxes up to 52°c at 100% utilisation on all cores during rendering & caching tasks, depending on ambient temps of course!! I will also take your advice and invest in better alternatives to Xeons in the near future including utilising the use of GPU's more for rending tasks :)

Posted on 2018-04-23 19:00:27
